Home Use 5.5KW Off Grid Hybrid Inverter 220/230V Solar Inverter Max Parallel To 12 Units

This is a multi-functional inverter/charger,combining functionsof inverter,solar charger and battery charger to offer uninterruptiblepower support in portable size. Its comprehensive LCD displayoffers user-configurable and easy-accessible button operationsuch as battery charging current, AC/solar charger priority,andacceptable input voltage based on different applications.

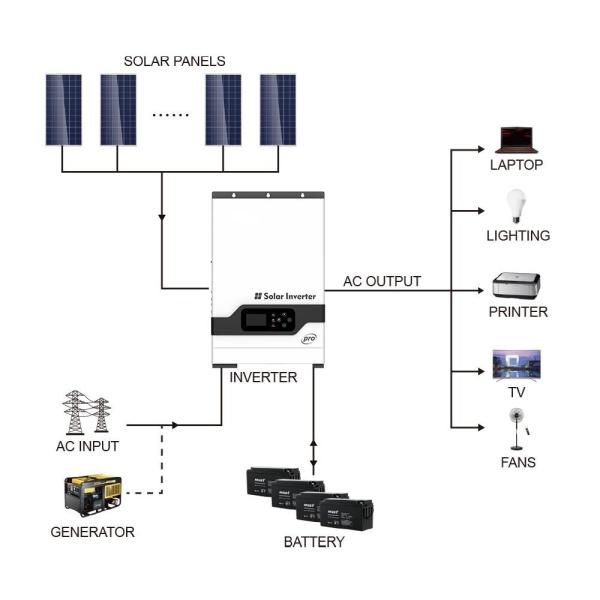

A solar hybrid inverter is a device that combines the functions of a traditional inverter and a solar charge controller, allowing for the integration of solar power into an existing electrical grid or a standalone off-grid system. The key feature of a solar hybrid inverter is its ability to manage both solar-generated electricity and electricity from other sources, such as the grid or a backup generator. This integration enables more efficient use of solar energy and ensures a continuous power supply.

Inverter Function:

Like a standard inverter, a solar hybrid inverter converts direct current (DC) electricity generated by solar panels into usable alternating current (AC) electricity, which can power household appliances and electronics.

Solar Charge Controller: The inverter incorporates a solar charge controller function, which regulates the charging of the connected solar panels' batteries. It prevents overcharging and optimizes the charging process for increased battery life.

Grid-Tied Operation: Solar hybrid inverters can operate in a grid-tied mode, allowing excess solar electricity to be fed back into the grid. This can potentially result in credits or compensation from the utility company, depending on local regulations and policies.

Off-Grid Capability: In off-grid settings, solar hybrid inverters can function independently, providing power to appliances and storing excess energy in batteries for use during periods of low sunlight or at night.

Battery Storage: Solar hybrid inverters are often designed to work with battery storage systems. They can charge batteries during periods of abundant sunlight and use stored energy during periods of low solar generation or in the absence of sunlight.

Features:

• Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.)

• Built-in MPPT solar charge controller 100A/200A

• MPPT efficiency max 98%

• Powerful charge rate up to 140Amp

• Inside BMS function

• DC start &Automatic Self-Diagnostic Function

• WIFI / USB monitoring function (wi-fi optional)

• Supporting AGS, BTS port

• Compatible to generator

Application Area:

Office and public facilities, household system, networktransmission equipment, manufacturing, control system,solar energy system, oil field, drilling field operation, etc. Provide stable, reliable and safe solutions for families, islands.ships and other small photovoltaic power systems
