Telecom 9M Sectional Aluminum Lattice Winch Up Tower

Self-Guying Portable Towers

The self-guying portable tower unit is ideal for smaller parcels as it requires only 42’ feet of clearance to deploy. This tri-axle unit comes with specially designed outriggers that fold into the trailer and swing out at deployment and is perfect for parking lots, frozen ground, rocky soil, and other difficult or tight site conditions. Telescoping to 106’ (30 meters), the self-guying cow can be deployed and operational within minutes and is capable of a large payload at typical EIA/TIA-222 Rev G wind speeds.

product Introduction:

A lattice tower or truss tower is a free standing vertical framework tower.This construction is widely used in transmission towers carrying high voltage electric power lines, in radio masts and towers and in observation towers. Its advantage is good shear strength at a much lower weight than a tower of solid construction would have as well as lower wind resistance.

In structural engineering the term lattice tower is used for a freestanding structure, while a lattice mast is a guyed mast supported by guy lines.

OUR NEW DEISGNED TELESCOPIC LATTICE TOWER SUITABLE DIFFIRRENT APPLICATIONS, WHEN THE TELESCOPIC MAST IS TOO SMALL TO LOAD, AND THE HEAVEY DUTY TOWER IS TOO BIG, SO THIS SERIES MAST IS YOUR RIGHT FOR YOUR CHOICE.

Height: 3m—30m

Material: aluminum alloy/ galvanized steel*(strengthen type)

Hand winch up & electric winch

specification:

YG's aluminum /steel lattice towers are manufactured and new designed from China, in max 3 meters sections allowing effortless transport, meaning total leadtime can be measured in days - not weeks or months. As a lightweight structure the towers can be built with a small crew and minimal plant, with smaller towers even able to be assembled by hand.

Able to be set up within 10m with only two people,

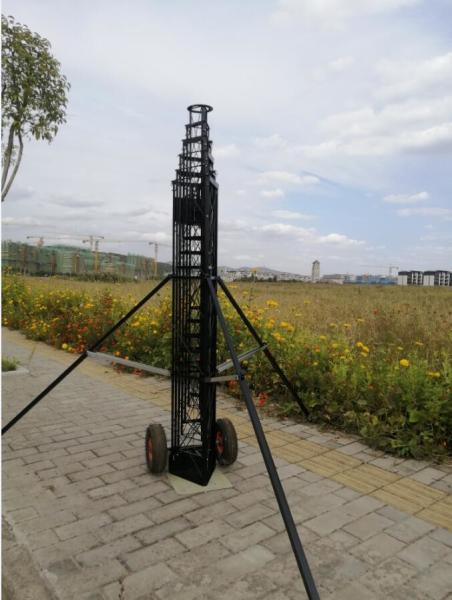

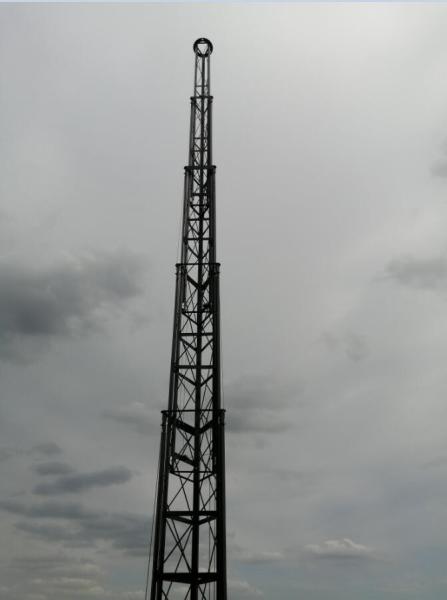

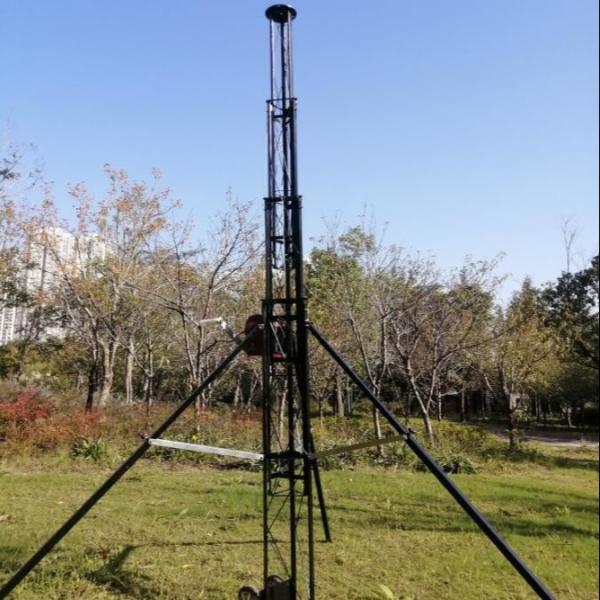

product photo:

Accessories:

1. Hand winch- screw type- can stop and lock at any position

2. Wheels—pneumatic tire (optional)

3. Tripod stand (optional)

4. Guyed wire—stainless steel wire from 3mm to 8mm

Both hand winch and electrical winch available.

special strenthen tower available

application:

Capable of mounting a range of lighting, CCTV, sensors, and industrial monitoring equipment, this serviceable mast is incredibly popular in mining and construction where climbing structures can present a safety concern, eliminating the need for an elevated work platform or a certified tower rescue team to perform even simple adjustments. This mast is also ideal for combination with wind turbines, providing high elevation with maximum stability allowing the establishment of temporary power generation at your exploration site, construction office, or hardstand.

Headframes are available to support a range of wind turbines, radars, camera systems, and telecommunications configurations.
