Specifications
Brand Name :
BIO
Place of Origin :
China
Model Number :
BS4000
MOQ :
1 unit
Packaging Details :
Carton (37*26*13cm) 2.5kgs
Payment Terms :
Credit card, Paypal, T/T
Delivery Time :
7 working - days since getting full payment
Supply Ability :
200 units / month
Certification :
CE
Light recourse :
Near infrared red light
Principle of working :
Projection
Color of vein :
white, green, red and switchable
Application :
Dorsal hand, arm, elbow, foot and head.
The deepest distance :
Up to 15mm
Infrared wavelength Standby time :
850NM
Standby time :
≥180min
Projector brightness :
1W20 Lumen（Adjustable）
Position Accuracy :
≤0.2mm
Image Resolution :
824*480
Projection distance :
25CM~35CM
Working Mode :
Normal mode, Child mode, Invert Colors mode
Description

High Contrast Image Vein Light Vein Locator Device For Medical Puncture by Projection​

BS4000 is useful for a variety of patients in many settings and serves to supplement existing venipuncture

techniques. Vein locator BS4000 uses an infra-red camera to highlight blood and then projects the image

onto the skin, making easier for health care provides to do necessary needle sticks. It is suitable for locate

the veins on dorsal hand, arm, elbow, foot and head.

Product Feature

1.This product using a new type of optical structure design,realize the original position projection and improve the vein recognition rate ;

2.New image enhancement algorithm,has more clear vein image resolution;

3.Suggest the depth of the vein;

4.Fully digital image acquisition and display mode,improved version of the digital camera capture frames higher smoother,solved the disadvantage of image show ghosting similar products;

5.By micro integrated circuit of innovation,improve the anti-interference ability and effectively reduce the radiation;

6.The new type of cooling mode,guarantee the stability and security of long time running.

Product Advantage

1

Providing friendly treatment
2

Reducing venipuncture failure and patients' pain
3

Improving staff efficiency and patients' experience
4

Attracting and helping to retain more patients

Product Specification

Item Spec
Display mode projection and near Infrared light source
The deepest distance Up to 15mm
Infrared wavelength 850NM
Standby time ≥180min
Projector brightness 1W20 Lumen(Adjustable)
Position Accuracy ≤0.2mm
Image Resolution 824*480
Projection distance 25CM~35CM
Projection color white, green, red and switchable
Working Mode Normal mode, Child mode, Invert Colors mode
Depth recognization Mark of three kinds of depth
Brightness Adjustable
Processor Inter ®Atom Win8.1 operating system
Frame rate ＞30 frames per second
Infrared emission method switchable between upper infrared light and below infrared light
Main wavelength of light source 750nm~940nm
Base Charger host and charger can be separated, DC +12V 4A
Battery backup time Up to 3.5 hours
Surface temperature Increase 10℃ or less after 30 minutes running
Camera resolution ≥600Lin
Operation mode Run continuously
Atmospheric pressure 86kPa~106kPa
4 hours
Power supply DC+12V, 10W
Safety classification class I type B
Machine net weight 0.5KG
Machine size 22cm*5cm*7cm
Intensifier Waveform: 850nm,DC+12V, 1000mA, 12.6W
Dimension: 19cm*30cm*33cm, Weight less than 0.3kg
Bracket Moving trolley or Table-top Bracket(Optional)

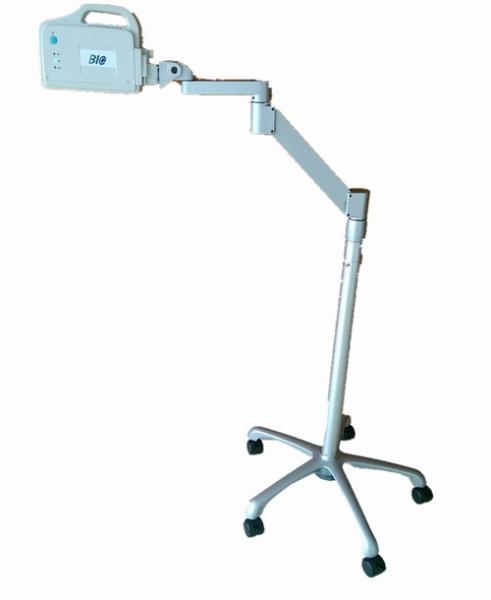

Product Images

High Contrast Image Vein Light Vein Locator Device For Medical Puncture by ProjectionHigh Contrast Image Vein Light Vein Locator Device For Medical Puncture by Projection

High Contrast Image Vein Light Vein Locator Device For Medical Puncture by Projection

High Contrast Image Vein Light Vein Locator Device For Medical Puncture by Projection
