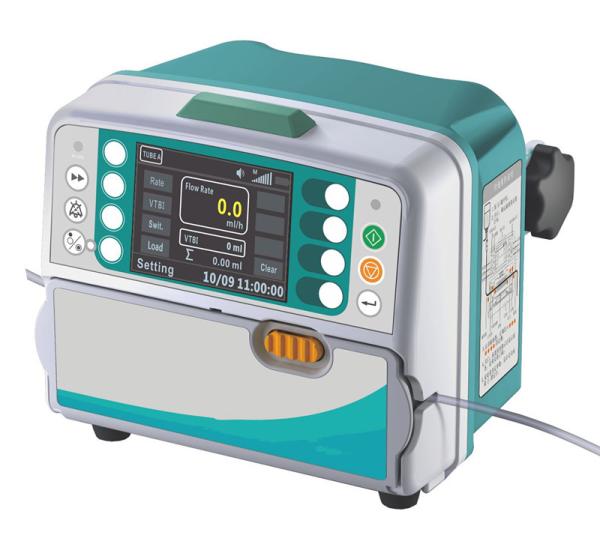

90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr
Specifications
Place of Origin :
China
Brand Name :
BIO
Model Number :
HK100II
Type :
infusion pump
MOQ :
1 unit
Payment Terms :
T/T, Western Union, Credit card, Paypal
Delivery Time :
7 working - days since getting full payment
Supply Ability :
500 units / month
Packaging Details :
Carton (27*16*34cm) 3kgs
Flow Rate Range :
0.1~1200ml/h Micro Mode: 0.1-99.9 ml/h In 0.1 ml Increments
Infusion Mode :
Rate Mode, Drip Mode, Time Mode, Body Weight Mode
Volume To Be Infused (VTBI) :
0~9999ml
Volume Infused (∑) :
0~36000ml
KVO Rate :
1~5ml/h
Bolus Rate :
300 ~ 1200 ml/h
Dimensions :
145 * 100 *120 Mm (length * Width * Height)
Weight :
≤1.4kg
Description
90° Rotation Pole Clamp Available Medical Infusion Pump With 0.1~1200 ml/h Micro mode 0.1-99.9ml/hr

Feature& Functions

1 Compact design

The compact and light weight design saves space and is beneficial during patient transfer

Large& colorful LCD display
2 ​Free flow protection The built-in flow stop feature helps reduce the risk of accidental free flow when pump door is open.
3 Anti-bolus function

Diminishes the volume of unwanted Bolus injected to the patient after removal of the occusion cause.

Anti-reverse rotation detection
4 Panel Lock The panel lock feature helps prevent unauthorized changes of any instrument setting.
5 Versatile functions

2000 history records

Real time display

RS232 interface (optional)

90° rotation pole clamp convenient for horizontal bar, vertical IV pole & platform use
6 User-friendly operation

​Soft key design, easy to operate

Load directly the last infusion rate and volume limit

Adjustable buzzer volume

​Top indicator light reflects the operation status as well as alarm case

​Night mode to ensure good rest of patients

​Removable pump body for easy cleaning

​

Specification

1 Flow rate range 0.1~1200 ml/h Micro mode: 0.1-99.9ml/hrin 0.1 ml increments
2 Infusion Mode Rate mode, drip mode, time mode, body weight mode
3 Volume to be infused (VTBI) 0~9999ml
4 Volume lnfused 0~36000 ml
5 Infusion accuracy +5%
6 Applicable infusion set Support a wide variety brands of infusion set including major manufacturers & selected local brands
7 KVOrate 1~5m1/h
8 Bolus rate 300~1200ml/h
9 Purge 600ml/h
10 Air bubble detection Ultrasound sensor detection with four levels of air in line alarm adjustable
11 Occlusion pressure 3 adjustable occlusion pressure settings: low, middle and high
12 Alarms Visual and audible alarms:Door open, Air-ln-Line, Occlusion,lnfusion oompletion,,infusion near over, Start reminder function, Low Battery,Battery depleted,malfunction etc.
13 Computer lnterface Rs232 (optional)
14 History records 2000 history records
15 Power supply AC: 100~240V,50/60Hz DC:12V±1V
16 Battery

Rechargeable lithium polymer battery,7.4V,1900mAh

Can operate for more than 3hours after fully charged at 25ml/h.
17 Battery rechargetime 10h with poweron, 3h with power off
18 Power consumption 25VA
19 Classification Class I,type CF
20 Waterproof Level IPX3
21 Mode of operation continuous
22 Dimensions 145x100x120mm (length x width x height)
23 Weight ≤1.4kg
24 Operating conditions Temperature:5°~40°, relative humidity:10~95%, Atmosphere pressure: 86~106kPa
25 Transport conditions Temperature:-20°~60°, relative humidity:10~95%, Atmosphere pressure: 86~106kPa
26 Storage conditions Temperature:-20°~50°, relative humidity:10~95%, Atmosphere pressure: 86~106kPa
