Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source
Specifications
Brand Name :
BIO
Model Number :
BS300
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
200 units / month
Delivery Time :
7 working days at sight of payment
Certification :
CE
Packaging Details :
Carton (30*27*16cm) 2.3kg
Operating Mode :
Handheld or Suspension
Infrared wavelengths :
850nm
Image resolution :
720*480
Visible Vein Size :
≥1mm
Battery working time :
≈ 5 hours
Dimension :
240x60x60mm (LxWxH)
Weight :
450g
Description

Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source

Specification

Light type Near-infrared light
Infrared wavelengths 850 nm
Image resolution 720*480
Visible Vein Size ≥1mm
Accuracy 0.25mm
Depth of Visible Vein ≤12mm
Best projection distance 200±20mm
Image frame rate 20FPS
LED lifetime 20000 hours
Power Supply DC 5V ≤3.5W
Weight 450g
Dimension 240x60x60mm (LxWxH)
Battery volume 4400mAH
Battery working time ≈ 5 hours
Charging time ≈ 3 hours
Battery detachable Yes
Operating Mode Handheld or Suspension
Package information 30*27*16cm, 2.3kg

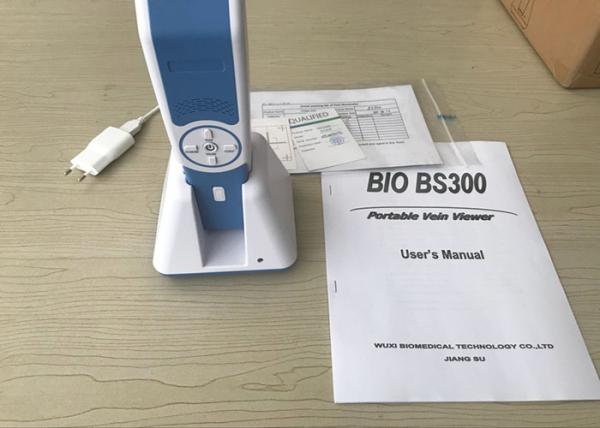

Standard configuration

main unit 1 unit
battery 1 pc
charging base 1 pc

Optional

Fixed support Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source 1 unit
Mobile supportHandheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source 1 unit

Visualization mode

Color 5 colors adjustable, for different patient skin tone and personal preference
Inverse Allows clinicians to switch entre highlight the veins and highlight the surround tissue, for reduce the interference of skin tone, density of hair follicles and room brightness.
Brightness 3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.
Resize 3 kinds of image sizes, for pediatric patients or when need to focus on only one vessel.
Enhanced Mode Helpful for find the small or deep veins.

Product Images

Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source

Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light SourceHandheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source

Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source

Handheld Portable Infrared Vein Finder For Nurses And Doctors With 850nm Light Source

E-catalogue for BIO_BS300 Vein Finder-20160908.pdf

vein finder bs300 user's Manual.pdf
