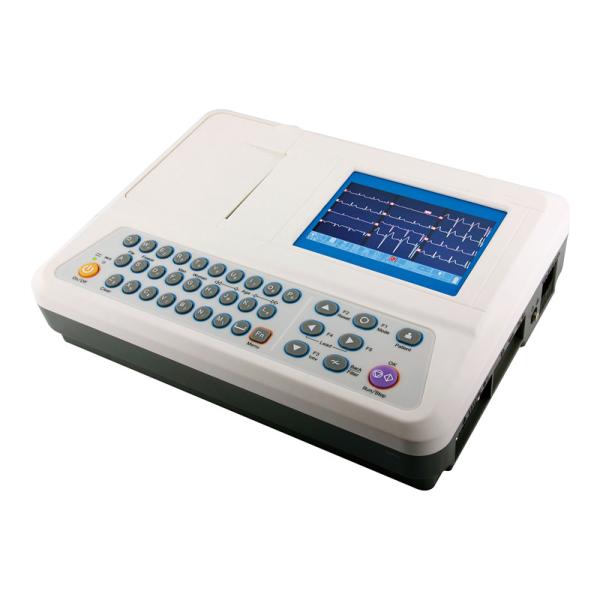

12 Leads Synchronously Acquisition Display ECG Monitoring System 3 Channel
12 Leads Synchronously Acquisition Display ECG Monitoring System 3 Channel
Specifications
Brand Name :
BIO
Model Number :
ECG-3303W
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Credit card, Paypal, T/T
Supply Ability :
200 units / month
Delivery Time :
7 working - days since getting full payment
Packaging Details :
Carton (40*34*22cm) 4.8kgs
Working modes :
Auto / Man / R-R Rhythm / Storage
Display :
800*480, 5 inch color LCD
Storage :
250 cases storage and reply
Battery :
Rechargeable Li-ion battery
Recording Mode :
1ch, 3ch, 3ch+
Dimension :
300mm*230mm*75mm, 2.8kgs
Description

12 Leads Synchronously Acquisition Display ECG Monitoring System 3 Channel

Feature

● Portable delicate design and soft alphanumeric keyboard operation

● Accurate pulse pace identification function and excellent auto – interpretation function

● High accuracy digital filter, auto - baseline adjustment

● 12 leads synchronously acquisition and record

● Working modes: Auto / Man / R-R Rhythm / Storage

● 800*480, 5 inch color LCD to display detailed ECG information

● 250 cases storage and reply (SD Card storage is optional)

● Rechargeable Li-ion battery supports continuous working for about 4 hours

● Recording Mode: 1ch, 3ch, 3ch+

● Real – time freeze function

● 80mm*20m high resolution thermal roll paper to print ECG

● Dimension: 300mm*230mm*75mm, 2.8kgs

● Rs232 and USB interface support USB disk storage, laser printer printing and code scanning (optional); ECG software is optional.

● Language: English, Chinese, French, Italian, Spanish, Russian

Specification

Lead Standard 12 leads Time constant ≥3.2s
lead acquisition 12bit/1000Hz(synchronously 12 leads) Frequency response 0.05～160Hz(-3db)
Work mode 22 Series:Man / Auto/Analysis Noise level ＜15μVp-p
33 Series: Man / Auto/Analysis/Storage
Filter AC Filter : 50Hz / 60Hz Inter-channel Interference ≤0.5mm
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR ≥100dB (with AC FILTER) Sensitivity 5,10,20, 40, Auto (mm/mV)
Input circuit Floating; Protection circuit against Recording mode 3ch, 3ch+
Defibrillator effect Default Man. Mode is 3ch format
　 Default Auto. Mode is 3ch+ format
Input Impedance ≥50MΩ Paper speed 6.25,12.5,25,50mm/s(±3％)
Input circuit current ≤0.05μA Paper 80mm *20m Roll paper
Patient current leakage ＜10μA Communication RS232/ USB port
Calibrating voltage 1mV±2％ Power Supply AC 110-230V(±10%),50/60Hz)±1Hz),60VA
DC Built-in rechargeable battery,14.4V(2000mmAh)
Voltage tolerance ≥±500mV Dimension/Weight 285mm×265mm×72mm/2.8Kg

12 Leads Synchronously Acquisition Display ECG Monitoring System 3 Channel
