Small Vehicles On Low-Speed Roads Rubber Sheets Friction Vehicle Security Barriers

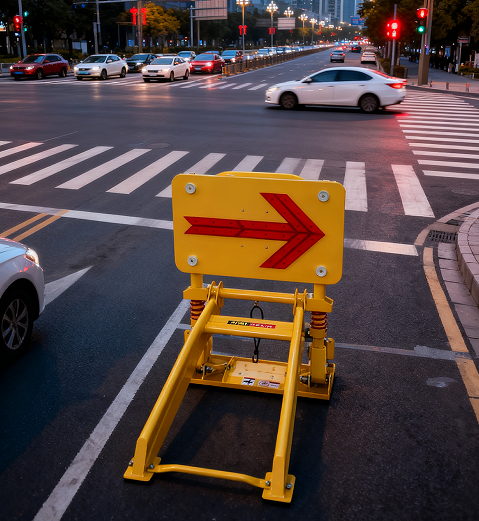

The mini vehicle movement barrier is suitable for intercepting small vehicles on low-speed roads. Placing it in the periphery of the construction site, such as highway maintenance, public utilities, construction site, etc., can effectively prevent vehicles from breaking into the construction site without observing the construction site in time. Our customized LED arrow board can be mounted above the mobile barrier, which has a good warning effect.

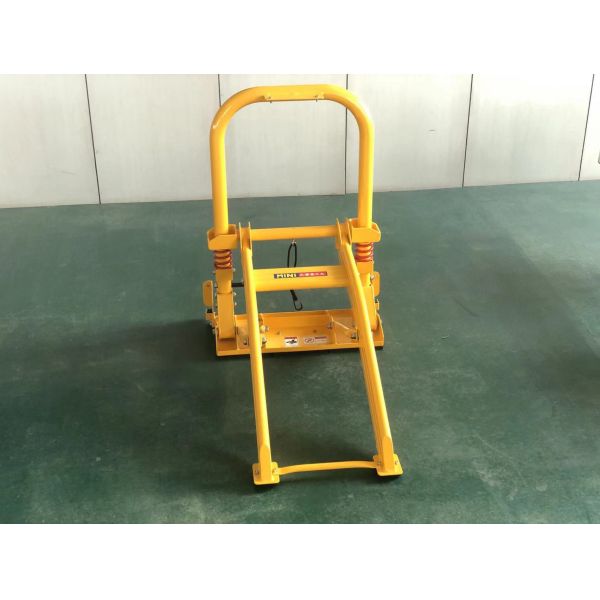

The main material of this mini vehicle movement barrier is aluminum and rubber, the overall weight is 20kg, light weight, and has a foldable nature, the folded size is only L1100*W664*H200. Can be placed in the trunk of the vehicle, easy to carry. Two auxiliary wheels are installed at the bottom of the product, and one person can move easily, which reduces the work intensity of the operators and reduces the labor and time cost of the construction unit. Three special rubber sheets are installed at the bottom of the product to increase the friction between the product and the ground.

Principle of parking

After the car crashed into the mini car, because of the lever principle, the front wheel of the vehicle was quickly lifted, the momentum of the vehicle was guided down to the ground, the forward power was greatly reduced, and the power was transferred to the rubber pad at the bottom of the equipment. Under the action of friction, the vehicle was finally stopped.
There are also two shock absorbers at the bottom of the product. When the vehicle collides, the shock absorber is used to absorb the impact force caused by the frontal impact of the vehicle up to 25 °.

Product advantage

1. Selective absorption of aluminum, strong plasticity and sustainable performance.
2. External electrostatic spraying process, not easy to rust, suitable for outdoor weather.
3. The color is bright and eye-catching, and it can be used with LED arrow board to improve the visibility of road construction.

4. The bottom is equipped with portable wheels, making it easy for the device to move.
5. The product is foldable and easy to accept, which is placed in the trunk of the vehicle and is ready for use.

6. The aluminum in the absorption part has been patented and has passed the safety test overseas with good absorption performance.
