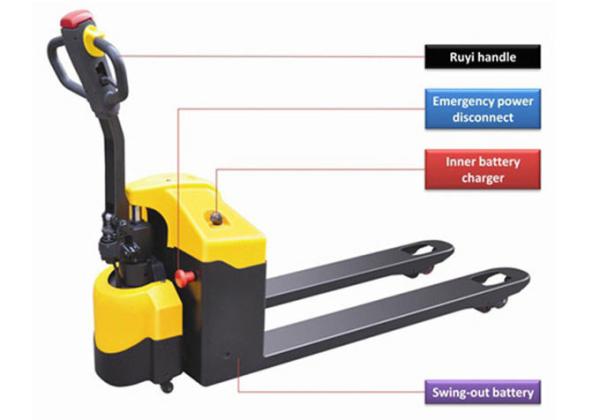

Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack
Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack
Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack
Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack
Specifications
Brand Name :
M&D
Model Number :
CBD-15A
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Supply Ability :
200 set per month
Delivery Time :
15-20 days
Packaging Details :
nude
color :
customised
wheel :
Nylon PU
material :
Round Solid Steel
handle :
3-POSITION
fork length :
1150mm
fork width :
160mm
Description
Horizontal Driving Wheel Motorised Pallet Jack , Balanced Semi Electric Pallet Jack
Detailed Product Description
Name: Semi Electric Pallet Truck Lowered Fork Height: 85/75mm
Max. Lifting Height: 200/190mm Tyre Size, Front: 185mm
Tyre Size, Rear: 80/74mm Fork Dimensions: 45/160/1150(1220)mm
Travel Speed: 2.6/3.8km/h Battery: 24V40AH

1500kg free maintenance semi electric pallet truck with horizontal driving wheel

Quick details:

Model:​ Semi Electric Pallet Truck CBD15A

Capacity: 1500kg

Lowered fork height: 85/75mm

Max. Lifting height: 200/190mm

Aisle width for pallets, 1000*1200 crossways: 1885/1955mm

Aisle width for pallets, 800*1200 lengthways: 1935/1955mm

Battery: 24V40AH

​Service weight: 150kg

Advantages:​

  • Parmanent magnet brushless motor with high electric efficiency, maintenance free.
  • Good gradient performance.
  • With smallest turning radius.
  • Full sealed battery free to maintain, big capacity 24V65AH fit for high intensitive use.
  • Constant traction speed for laden or unladen, improves productive efficiency.
  • Horizontal drive wheel provides convenient replacement.
  • Stepless speed control.
  • Floating balance wheel supports automatic height adjusting.
  • Built in charger.

1500kg Semi electric pallet truck

Horizontal Driving Wheel Motorized Pallet Jack , Balanced Semi Electric Pallet Jack

SPECIFICATIONS OF SEMI ELECTRIC PALLET TRUCK
Model CBD15A
Load capacity kg 1500
Load centre distance mm 600
Fork height, lowered mm 85/75
Tyre size, front mm 195
Tyre size, rear mm 80/74
Max. lifting height mm 190/180
Height of tiller in drive position min./max. mm 770/1254
Overall length mm 1644/1714
Length to face of forks mm 490
Fork dimensions mm 53/160/1150(1220)
Width overall forks mm 520/550/685
Aisle width for pallets 1000*1200 crossways mm 1844/1914
Aisle width for pallets 800*1200 lengthways mm 1894/1914
Turning radius mm 1445/1515
Travel speed, laden/unladen km/h 5.3/5.8
Battery V/Ah 24/65
Service weight kg 200


Package:

The trucks will be packed with pallets and plastics or cartons.
