ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
Specifications
Place of Origin :
Guangdong, China
Brand Name :
ACR
Packaging Details :
200pcs/box 10boxes/carton
2000Pcs/carton
box:22.2*9*5.4cm
carton:49*24.5*13cm
Gross weight:14kg
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
5 Pieces
Price :
$45.00/Pieces 5-9 Pieces
Built-in Periphera :
User-controllable bi-color LED
Compliant with the following standards :
ISO 14443
Power Source :
From USB port
Antenna Size :
20 mm * 22 mm
LED :
1 bi-color: Red and Green
Port :
SHENZHEN
Description

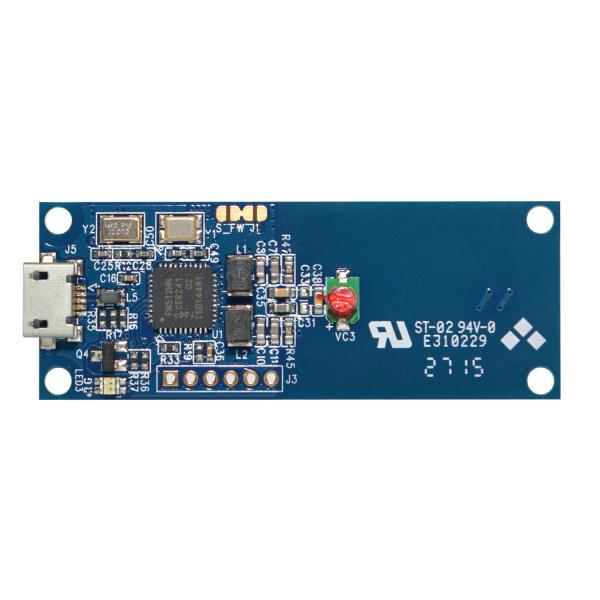

ACM1252U-Z2 USB NFC Module Reader



Physical Characteristics
Dimensions (mm) 52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H)
Weight (g) 3.65 g
USB Interface
Protocol USB CCID
Connector Type Micro USB
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1.0 m, Detachable (Optional)
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, , FeliCa
Protocol ISO14443-4 Compliant Cards, T=CL
Classic Card Protocol, T=CL
ISO 18092, NFC Tags
FeliCa
Antenna 20 mm x 22 mm
Built-in Peripherals
LED 1 bi-color: Red and Green
Certifications/Compliance
Certifications/Compliance ISO 14443
ISO 18092
USB Full Speed
PC/SC
CCID
CE
FCC
RoHS 2
REACH
Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support Windows®
Linux®
MAC OS®
Solaris
Android™
Company profile

Established in 2001 year, Shenzhen Chuangxinji smart card co.,Ltd was specialized in producing and marketing of pvc cards,smart cards and RFID wristbands&Tags.

In possession of three modern and high standard production line:
PVC card production line with monthly output of 20,000,000 pieces cards: Brand-new CTP machines and brand Heidelberg offset printing machines, 8 compounding machines.
Antenna production line with monthly output of 20,000,000 pieces cards: roll to roll printing machines, compounding machines, machines for erosion and engraving.
RFID end product production line with monthly output of 500,000,000 smart cards and 300,000,000 RFID tags: reversed assembling machines compound die cutting machines, laminating machines.

Marketing Team
We own 26 marketing staffs who speak English, Germany, France, Spanish, Arabic and so on, our business range from Europe, America, Oceania, Africa, Asia and middle east countries and regions.

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight

RFID WRISTBANDS

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight

Production Process

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight

RFID APPLICATION

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g WeightACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight

RFID Card&NFC Tag

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g WeightACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight

Packaging

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight

ACM1252u-Z2 USB NFC Reader Module 20mm×22mm Antenna Size 3.65g Weight
