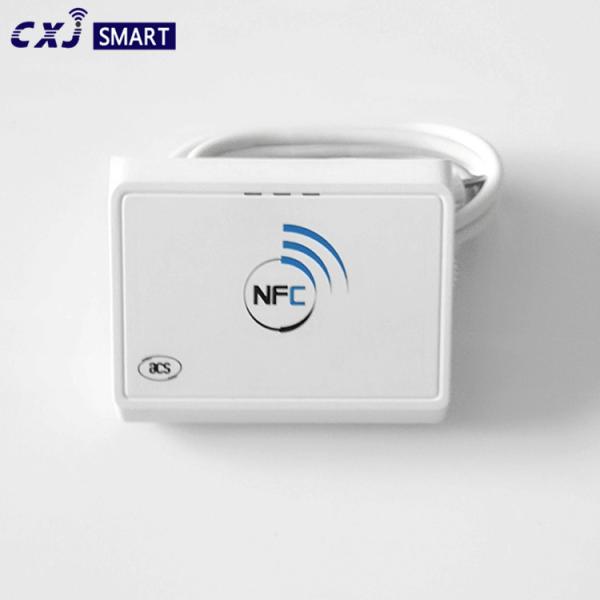

Portable wireless Bluetooth acr1311 NFC card reader writer

• ACR1311U-N2 supports ISO 14443 Part 4 Type A cards, ®, and ® DESFire®. This makes it the ideal device for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. ACR1311U-N2 has both BLE 4.0 interface for pairing with mobile devices and USB Full Speed for PC-linked operation. Additionally, it can read/write at the speed of up to 424 Kbps for contactless smart card and NFC device access.

· USB 2.0 full speed interface

· BLE4.0 smart interface

· Plug and Play – CCID support brings utmost mobility

· USB Firmware Upgradeability

· Smart Card Reader:

o Built-in antenna for contactless tag access, with reading distance of up to 25 mm (depending on tag type)

o Supports ISO 14443 Part 4 Type A cards

o Supports ® and ® DESFire®

o Built-in anti-collision feature (only one tag is accessed at any time)

o NFC Support:

§ Card reader/writer mode

· Application Programming Interface:

o Supports PC/SC

o Supports CT-API (through wrapper on top of PC/SC)

· Supports Android™ 4.3 and above

· Supports iOS 5.0 and later²

· Built-in Peripherals:

o Two user-controllable bi-color LEDs

· Compliant with the following standards:

o EN60950/IEC 60950

o ISO 14443

o BLE® Smart

o PC/SC

o CCID

o RoHS 2

o REACH

o Microsoft® WHQL

long distance BLE wireless ios android ACR1311 rfid nfc reader writer

Physical Characteristics

Dimensions 60mm (L) × 47.98 mm (W) × 12 mm (H)

Weight 30g

Color White

Lithium-ion Battery

Battery Capacity 300mAh

Working Voltage......... 3.7 V DC

Working Hours About 10 hours (full of electricity)

BLEInterface

Protocol BLESmart (BLELow Energy/BLE4.0)

Power Source 300mAh Rechargeable Lithium-ion Battery (Charging through USB)

Speed 1 Mbps

USB Host Interface

Protocol USB Full Speed

Type Four Line: +5 V, GND, D+ and D-

Connector Type USB Micro

Power Source From USB Port

Speed USB Full Speed (12 Mbps)

Cable Length 1 m (Detachable)

Firmware Upgradeable through USB Interface

Contactless Smart Card Interface

Standard ISO 14443 Type A & B, , DESFire

Protocol ISO 14443 T=CL for ISO14443-4 compliant cards, and T=CL Emulation for Classic 1K/4K and NFC tags

Operating Frequency 13.56 MHz

Operating Distance Up to 25 mm (depending on tag type)

Smart Card Read/Write Speed 106 Kbps, 212 Kbps, 424 Kbps

Antenna Size 28.00 mm × 32.00 mm

Built-in Peripherals

LED 2 bi-color: Red and Blue, Red and Green

Buzzer Monotone

Operating Conditions

Temperature 0 °C - 50 °C

Humidity Max. 90% (non-condensing)

MTBF 500,000 hrs

Application Programming Interface

PC-linked Mode PC/SC

CT-API (through wrapper on top of PC/SC)

Certifications/Compliance

EN60950/IEC 60950, ISO 14443, USB Full Speed, BLE Smart, PC/SC, CCID, RoHS 2, REACH, Microsoft® WHQL

Device Driver Operating System Support

Windows® ME, Windows® 98, Windows® 2000, Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2,

Windows® Server 2012, Windows® Server 2012 R2

Linux®, Mac OS®, Android™, iOS
