Specifications
Place of Origin :
Shanghai, China
Brand Name :
AA4C
Packaging Details :
Plywood case
Supply Ability :
20 Unit/Units per Month
Price :
$1,550.00/Units >=1 Units
Warranty :
1 Years
Product name :
Full Automatic RIM STRAIGHTENING MACHINE AA-RSM595
Color :
Red
Power :
Hydrualic power
Voltage :
380V/50HZ,3PH
Function :
Straighten Wheels
VOLTAGE :
110v/220v / 380v
Application :
Repair
Capacity :
10'-26"rim
Material :
Stainless Steel
Type :
Drum Disk Brake Lathe
Port :
Shanghai
MOQ :
5pcs
Description

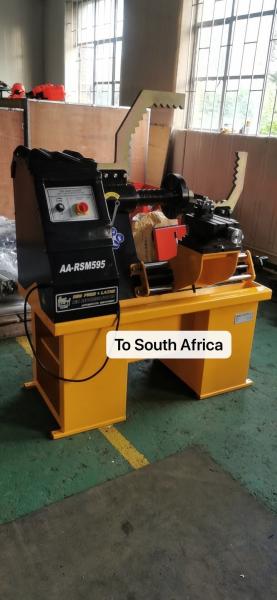

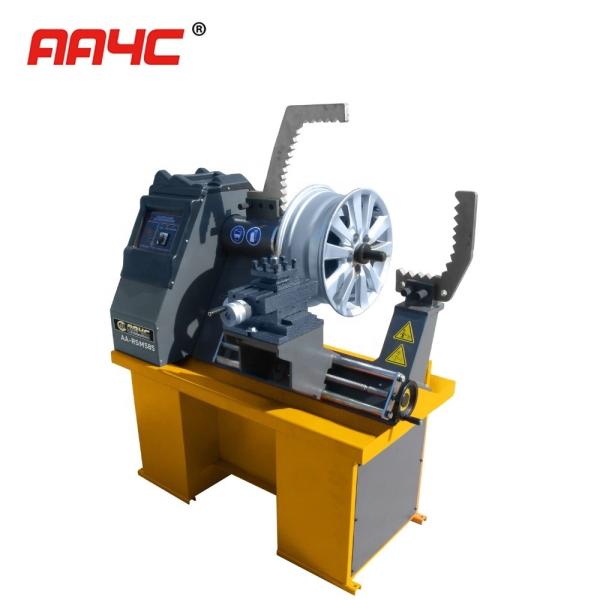

AA4C Full Automatic RIM STRAIGHTENING MACHINE AA-RSM595

Full Automatic RIM STRAIGHTENING MACHINE AA-RSM595


This unique machine is used to correct and straighten all kinds
of defected steel and alloy rims ranging from 10'' to 22'.
DIMENSIONS
Height 1250 mm Width 1110 mm Length 610 mm

Packing size: 1370x880x1495mm
Weight 370 Kg /400kg

MOTOR SPECIFICATIONS
Mechanic 0,55 kw, 1400 rpm, 0,75 hp,
3 phase - single phase, 220V - 380 V
Hydraulic 0,75 kw 1400 rpm, 1 hp,
3 Phase - single phase, 220V - 380 V
Sound 35 db
HYDRAULIC PISTON POWER
Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our LJX580 machines.
STANDARD ACCESSORIES LIST

Standard Accessories of AA-RSM580

No.

item

Specification

Qty

1

Connecting flanges for different sizes of rims

Rim to center washer

10

Φ54

1

Φ56.5

1

Φ57

1

Φ58

1

Φ59.5

1

Φ60.1

1

Φ63.3

1

Φ64

1

Φ65

1

Φ66.6

1

Φ72

1

Φ72.5

1

2

Gauge

1

3

Pole for positioning the deformed part

1

4

Allen head wrenches

5#6#8#10#12#

1

5

Angular supports

1

6

Square supports

2

7

Gradual supports

2

8

Cutter type supports

4

9

Supports miles

4

10

Lever

1

11

Lathe cutter

1

12

Front supporting seat

1

13

, ;, ;Rear supporting seat

1

14

Professional wrench

19#

1

15

Centering ring

1

16

Cross sliding part(including cutter holder)

1 set

17

Flange(including 5 fixing bolt)

1 set

26262626

2626

Company Profile

26

Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equipment manufacturer since 1995. AA4C means Always and All for (4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, We have passed ISO9001, authenticated by 2000 International Quality Control System.

We are mainly dealing AA4C products development, product design as well as OEM/ODM manufacturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China)

Facing the future opportunities and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the inter courses and cooperation with other producers in the field both at home and abroad; And exert ourselves to pay back our clients with high-quality products and perfect after-service.

26262626

Trade Info

Trade Terms

FOB / CFR

MOQ

3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)

Port

SHANGHAI

Shipment

BY SEA /AIR

Payment Terms

T/T

Payment condition

30% prepayment,balanced againt BL copy&L/C at sight.

Supply Capability

1000units/month

Sample Availability

Yes ,But all freight(Inland freight +seafreight) covered by buyer

Sample package

Post :2900*500*720mm ; Power unit: 940X280X370mm

Sample Time

5-10days(depends on whether have in stock)

Lead Time

25-30days(Rush season 5-10days longer)

Packing

Metal frame&Carton

Delivery time

30-45days shipping time (depends on destination position)

Service

1% free parts;1year warranty after port of destination

26

Contact Us

26

FAQ

1. Why should I choose AA4C car lift?

There are several reasons you should strongly consider purchasing AA4C Lift:

Top raw materials from only the finest plants

Only professional cost-effective equipment

Low prices with high quality revenue producing products

Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)

The best customer service. Quick reply within 24 hours and more.

Great Warranty

2. How safe are AA4C 2 post car lift?

Our 2&4 post lifts have been tested and CE certified for safety . They also meet the American

and Australian Standard.

3. Should I keep repair and replacement parts in stock?

Yes, most all commonly required repair and replacement parts should always keep in stock.

4. What type of fluid is required for my 2 post car lift?

We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately 3 gallons / 12L are required.

5. Are AA4C car lift designed for commercial use?

All of our lifts can be used in commercial applications without any problems.

6. Do you offer any custom designs?

Yes,AA4C provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
