Specifications
Brand Name :
AA4C
Model Number :
AAGT-4-1
Certification :
ce
Place of Origin :
Shanghai, China
MOQ :
5pcs
Price :
$1,000.00 - $2,000.00/Cases
Supply Ability :
Vehicle Test lines for cars only(4 in 1 or 3 in1) axle load side slip suspension brake roller tester
Delivery Time :
10-15 days
Packaging Details :
Vehicle test line for trucks and cars used in garage workshop vehicle Test lane Vehicle inspection equipment
Type :
Vehicle inspection equipment
Voltage :
220V 380v
Warranty :
12 Months
Product name :
15T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester
Function :
VEHICLE TEST LANE
Color :
BLUE
Port :
Shanghai
other name :
vehicle diagnostic center
more name :
Car Vehicle Inspection lane
purpose :
Truck vehicle test lane
Description
15T Secondary vehicle maintenance and testing lane Roller brake tester with axle load side slip tester

Truck Roller brake tester axle load foundation Rea...

15T Brake roller tester&axle load foundation.pdf

15T single plate side slip foundation Drawing.pdf

15T single plate side slip foundation Real Pic.pdf...

1. Product Features:

  • The inspection tester supports a maximum axle load of 15,000 kg.
  • The detection control system uses a high-brightness LED display for guidance and is controlled by an industrial-grade computer.
  • Integrated with smoke density, exhaust gas, and headlight detection functions; speedometer detection functionality is optional.
  • The detection system supports manual single-station, semi-automatic, and fully automatic operation modes.
  • Automatically prints and determines detection results, with fast query capabilities for detection data and records based on time, license plate, vehicle model, etc.
  • Equipped with the latest national standards, allowing users to modify detection criteria as needed.
  • Features high-speed system signal data acquisition; the braking process curve can be dynamically displayed on the software interface while operating the brake pedal.

2. Operation Interface:

15T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester

3. Vehicle Inspection Login Interface:

15T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester

4. Detailed Technical Parameters for Each Inspection Tester:

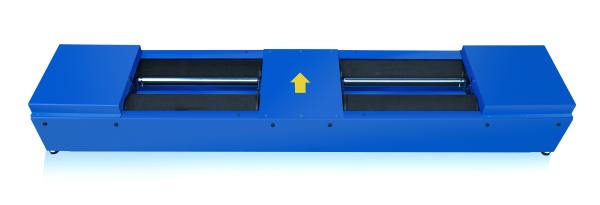

(1) AA-FZ-10T Brake Tester Technical Parameters:

  • Rated Load (t): 15
  • Wheel Brake Force Measurement Range (daN): 0-4000
  • Division Value (daN): 1
  • Indication Error: ±3%
  • Roller Diameter (mm): 245
  • Roller Length (mm): 1100
  • Inner Span of Rollers (mm): 700
  • Outer Span of Rollers (mm): 2900
  • Roller Center Distance (mm): 470
  • Height Difference Between Front and Rear Rollers (mm): 30
  • Roller Surface Type: Sand-coated
  • Roller Sliding Friction Coefficient: ≥0.85
  • Roller Surface Linear Speed (Km/h): 2.5
  • Third Roller Status: Available
  • Auxiliary Vehicle Exit Device: Airbag lifting
  • Power Supply (V): AC380V 50Hz
  • Motor Power (KW): 11KW*2
  • Sensor Power Supply (V): DC12
  • Calibration Ratio: 10
  • Self-weight (Kg): 1800

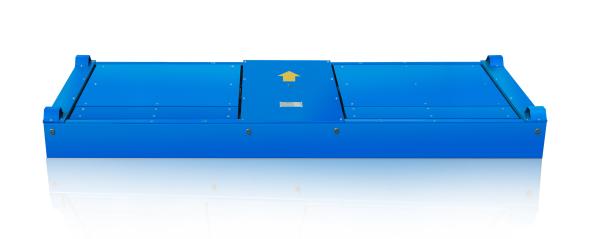

(2)AA-CH-15 Side-Slip Tester Technical Parameters:

  • Model: AA-CH-15T
  • Rated Load (t): 15
  • Measurement Range (m/Km): ±10
  • Slide Plate Dimensions (mm): 1000*1100
  • Applicable Wheel Track (Inner/Outer) (mm): 700/2900
  • Relaxation Plate Dimensions (mm): 1100*250
  • Sensor Power Supply (V): DC12
  • Sensor Output Signal (V): 0-12
  • Structure Type: Double-plate linkage
  • Self-weight (t): 0.85

15T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester15T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester15T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester15T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester15T Secondary Vehicle Maintenance And Testing Lane Roller Brake Tester With Axle Load Side Slip Tester
