Specifications
Brand Name :
AA4C
Model Number :
AA-RSM595-F3
Certification :
CE
Place of Origin :
Shanghai, China
MOQ :
5pcs
Price :
$1,550.00/Units >=1 Units
Supply Ability :
20 Unit/Units per Month
Packaging Details :
Plywood case
Warranty :
rim Straightening Machine
Product name :
Full Automatic RIM STRAIGHTENING MACHINE AA-RSM595
Color :
RedRim Processing Machine
Power :
rim repair machine
Voltage :
380V/50HZ,3PH
Function :
Straighten Wheels
VOLTAGE :
110v/220v / 380v
Application :
Repair
Capacity :
10'-26"rim
Material :
Stainless Steel
Type :
Drum Disk Brake Lathe
Port :
Shanghai
Description

Automatic rim Straightening Machine with Dual Cylinder Rim Processing Machine tire service machine garage equipments

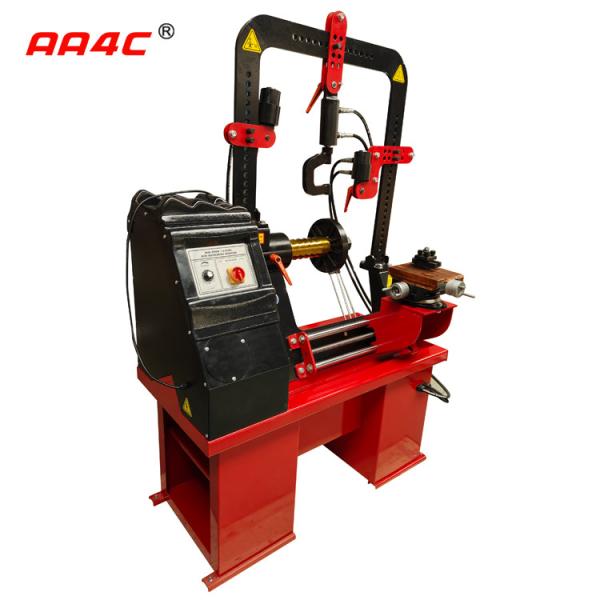

Full Automatic RIM STRAIGHTENING MACHINE AA-RSM595-F


This unique machine is used to correct and straighten all kinds
of defected steel and alloy rims ranging from 10'' to 22'.
DIMENSIONS
Height 1250 mm Width 1110 mm Length 610 mm

Packing size: 1370x880x1495mm
Weight 370 Kg /400kg

MOTOR SPECIFICATIONS
Mechanic 0,55 kw, 1400 rpm, 0,75 hp,
3 phase - single phase, 220V - 380 V
Hydraulic 0,75 kw 1400 rpm, 1 hp,
3 Phase - single phase, 220V - 380 V
Sound 35 db
HYDRAULIC PISTON POWER
Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our LJX580 machines.
STANDARD ACCESSORIES LIST

Standard Accessories of AA-RSM595-F

No.

item

Specification

Qty

1

Connecting flanges for different sizes of rims

Rim to center washer

10

Φ54

1

Φ56.5

1

Φ57

1

Φ58

1

Φ59.5

1

Φ60.1

1

Φ63.3

1

Φ64

1

Φ65

1

Φ66.6

1

Φ72

1

Φ72.5

1

2

Gauge

1

3

Pole for positioning the deformed part

1

4

Allen head wrenches

5#6#8#10#12#

1

5

Angular supports

1

6

Square supports

2

7

Gradual supports

2

8

Cutter type supports

4

9

Supports miles

4

10

Lever

1

11

Lathe cutter

1

12

Front supporting seat

1

13

, ;, ;Rear supporting seat

1

14

Professional wrench

19#

1

15

Centering ring

1

16

Cross sliding part(including cutter holder)

1 set

17

Flange(including 5 fixing bolt)

1 set
