Product Description:

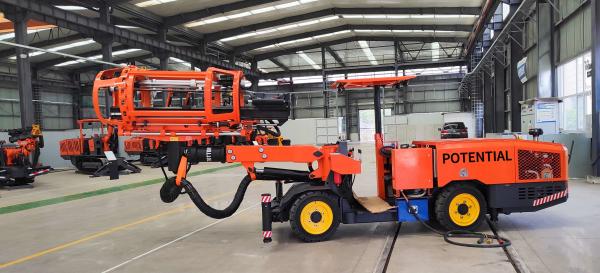

The KDM12A-1BCDL anchor rod trolley is a game-changer that has turned the conventional "double slide+double rock drill" approach to anchoring on its head. It introduces a new approach that includes a "single slide+single rock drill," which makes the whole anchoring process automated. This approach has made the anchoring work more efficient, safe, easy, and even entertaining.

With the KDM12A-1BCDL, drilling, hanging of nets, and anchoring are all automated, making the anchoring process smoother and much more straightforward. The machine's compact size and flexible mobility make it perfect for use in underground cages of all kinds. The vehicle module design also allows for easy disassembly and assembly, making it transport-ready.

The KDM12A-1BCDL anchor rod trolley is poised to revolutionize the anchoring process, making it easier, safer, and more productive than ever before.

Features:

Introducing our latest technology - the Remote Control Electric Proportional Operating System. With this system, operation is made easy, safe, and reliable, ensuring precise positioning for your drilling needs.

Our Universal Modular Chassis Design is also readily available to make equipment maintenance and management a breeze. You can easily access and maintain your equipment, making sure it is always in its best condition.

The Automatic Drilling and Anti-Jamming Function is also included in our technology - prolonging the lifespan of your drilling tools while reducing failure rates.

For added convenience, the system's Automatic Recording of Construction Data feature allows for easy management and analysis of all your construction data. Simply upload them through our dedicated APP and keep track of your progress effortlessly.

Technical Parameters:

Body

• Overall size(LxWxH) mm: 6800×1290×1550(2350 Rising height)
• Rock drill impact frequency kW: 7.5
• Hole diameter mm: 32- 45
• Drilling speed m/min: 0.8-2
• Applicable bolt length: 1800 (standard)
• Working area(Tunnel height) mm: 2900~5000 (standard)
• Other bolting rob(Tunnel height) mm: Length +1100
• Bolting rob capacity: 10
• Net hanging: YES
• Service voltage: 380VAC 50Hz
• Total power kW: 32.6
• Total power kg: ≈6600

Running Chassis

• Chassis structure: Articulated
• Running from: Rubber wheel
• Running speed km/h: 0-6
• KW: 44.6
• Ground clearance mm: 150
• Grade ability(smooth-riding surface): 14°
• Min.turning radius m: 2500(Inner side)/4000(Out side)

Boom

• Boom Quantity: 1
• Boom type: Mixed coordinate boom
• Telescope function: YES

Bolting Mechanism

• Guide rail length mm: 2750
• Drill pipe length mm: 1960
• Hole depth mm: 1900
• Bolting rob type: Tube seam
• Bolting plate size mm: ≤150
• Bolting rob installation: Auto

Air System

• Air flow m³/min: 0.21
• Air pressure Mpa: 02-03
• Water flow m³/min: 2
• Flusing water pressure Mpa: 0.8~1.2
• Water inlet pressure Mpa: 0.3~0.6

Other Configuration

• Cable reel: Optional
• Quantity of baskets: YES
• Lifting ceiling: YES
• Lighting: 3 High brightness LED lights
• Extinguisher: YES (4kg*1 Hand-held dry powder fire extinguisher 4kg×1)

Applications:

Customization:

Our KDM12A-1BCDL model comes equipped with a telescope function and has a working area (tunnel height) of 2900~5000mm. The total power of the rock drill is 32.6kw, and it has a rock drill impact frequency of 7.5Kw. In addition, we offer an anchor rod trolley for added convenience.

Packing and Shipping:

Product Packaging:

• One Jumbo Rock Drill
• One set of drill bits
• Instruction manual

Shipping:

• Shipping method: UPS Ground
• Shipping time: 3-5 business days
• Shipping cost: $25
