Drilling Diameter 43mm - 76mm Jumbo Rock Drill 47.6kw With Section B×H 2×2-5.6×4m
Drilling Diameter 43mm - 76mm Jumbo Rock Drill 47.6kw With Section B×H 2×2-5.6×4m
Drilling Diameter 43mm - 76mm Jumbo Rock Drill 47.6kw With Section B×H 2×2-5.6×4m
Drilling Diameter 43mm - 76mm Jumbo Rock Drill 47.6kw With Section B×H 2×2-5.6×4m
Specifications
Brand Name :
POTENTIAL / POTENCY
Model Number :
KD12A-1BCD(L)
Place of Origin :
CHINA
Certification :
ISO9001:2015
MOQ :
1 Unit
Price :
Negotiable
Packaging Details :
1 Unit in 1*40'HQ
Delivery Time :
45 working days
Payment Terms :
T/T, L/C
Supply Ability :
120 units per year
Total Power :
47.6kw
Model :
KD12A-1BCD(L)
Section(B×H) :
2×2-5.6×4m
Chassis Structure :
Articulated
Drilling Diameter :
43-76mm
Hole Depth :
2.7m
Drilling Speed :
0.8~2m/min
Rock Drill Impact Frequency :
7.5Kw
Description

Drilling Diameter 43-76mm Jumbo Rock Drill with Total Power of 47.6kw and Section B×H 2×2-5.6×4m KD12A-1BCD(L)

Product Description:

The KD12A-1BCD(L) is an excellent machine that is capable of handling all terrain working conditions, even within a slope of 14 degrees. Equipped with a powerful diesel engine, its transition speed can reach an impressive 5 km/h, allowing for high-speed transitions.

One of the unique features of this machine is its polar coordinate mechanical translation drilling arm structure, which boasts independent intellectual property rights. This design promotes rapid positioning between each borehole. Additionally, the entire working face is free of blind spots or dead corners due to this clever design.

If you're in need of a machine that can handle operations in small mines, the KD12A-1BCD(L) is perfect for alleyway use.

Main Technical Parameters of KD12A-1BCDL
Body
Overall size(LxBxH) m 10.5×1.45×2.1(2.94Wih ceiling)
Hole diameter mm φ43- φ76
Drilling speed m/min 0.8-2
Section(B×H)m 2.5×2.5-5×5
Rock drill impact frequency kW 7.5
Service voltage 380VAC 50Hz
Total power kW 57.1
Total power kg ≈8500
Running chassis
Chassis structure Articulated
Running from Rubber wheel
Running speed km/h 0-9
KW 50
Ground clearance mm 185
Grade ability(smooth-riding surface) 14°
Min.turning radius m 4.2(Inner side)/6.0(Out side)
Arm
Quantity of Arm 1
Parallel function YES
Telescope function YES
Thruster
Total length m 4.42
Drill pipe length m 3.09
Hole depth m 2.70
Air system
Drill lubrication air volume m/min 0.21
Drill lubrication air pressure Mpa 0.2-0.3
Water system
Pipe reel NO
Water supply m³/h 2
Rock drill water pressure Mpa 0.8~12
Colder entrance water pressure Mpa 0.3~0.6
Other configuration
Cable reel YES
Quantity of baskets N O
Lifting ceiling YES
lighting 5 High brightness LED lights
Extinguisher

(4kg*1)

Hand-held dry powder fire extinguisher 4kg×1

Features:

The whole machine operates by implementing a full hydraulic drive, allowing it to reach a rock drilling speed of 0.8-2 meters per minute. It has a system equipped with various useful features such as automatic stop of impact at the end point, automatic anti-jamming drill, and induction of water slag discharge, which makes it easy to operate while ensuring safety and reliability.

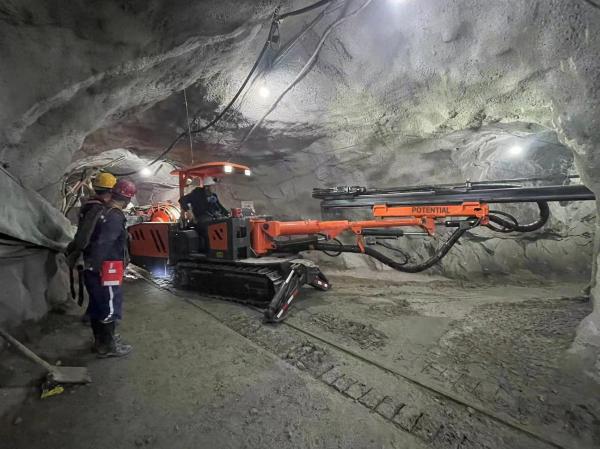

The aircraft is designed with a small body and compact structure, featuring a low center of gravity, flexible maneuverability, stable operation, and a strong climbing ability. By utilizing track walking, it can carry out rock drilling operations on a 14 ° inclined slope. Its flexible hydraulic rock drilling mechanism can perform drilling operations on the working face, roof, side walls, and floor of the tunnel.

Not only can this machine drill and excavate blast holes, but it can also conveniently drill anchor holes according to the size of the section, making it a versatile and efficient tool for various drilling tasks.

Applications:

This machine is primarily designed for excavating and excavation work in small and medium-sized tunnels, tunnels, and culverts in various fields, including mining, metallurgy, hydropower, railway, and highway. It features both electric and diesel engine walking modes, and diesel engine walking can vastly enhance equipment transfer speed, construction efficiency, and overall construction quality.

For those in need of an efficient and reliable machine for excavation and excavation work, this is an ideal option to consider. It's versatile, adaptable, and designed to provide optimal performance for various excavation tasks in different fields.

Whether you're working on a mining project, metallurgy project, hydropower project, or others in construction, this machine can help you improve your work efficiency, productivity, and quality. By utilizing the diesel engine walking mode, you can move equipment faster and tackle your tasks with ease.

Packing and Shipping:

Product Packaging:

  • One Jumbo Rock Drill
  • Instruction manual
  • Protective carrying case

Shipping:

  • Shipping weight: 75 lbs
  • Shipping dimensions: 48” x 12” x 8”
  • Shipping method: Ground

FAQ:

Q: What is the brand name of the rock drill?

A: The brand name of the rock drill is POTENTIAL / POTENCY.

Q: What is the model number of the rock drill?

A: The model number of the rock drill is KD12A-1BCD(L).

Q: Where is the rock drill manufactured?

A: The rock drill is manufactured in China.

Q: What certifications does the rock drill have?

A: The rock drill is certified with ISO9001:2015.

Q: What is the minimum order quantity for the rock drill?

A: The minimum order quantity for the rock drill is 1 unit.

Q: Is the price of the rock drill negotiable?

A: Yes, the price of the rock drill is negotiable.

Q: What are the packaging details for the rock drill?

A: The packaging details for the rock drill is 1 unit in 1*40'HQ.

Q: What is the delivery time for the rock drill?

A: The delivery time for the rock drill is 45 working days.

Q: What are the payment terms for the rock drill?

A: The payment terms for the rock drill are T/T and L/C.

Q: What is the supply ability of the rock drill?

A: The supply ability of the rock drill is 120 units per year.
