Product Description:

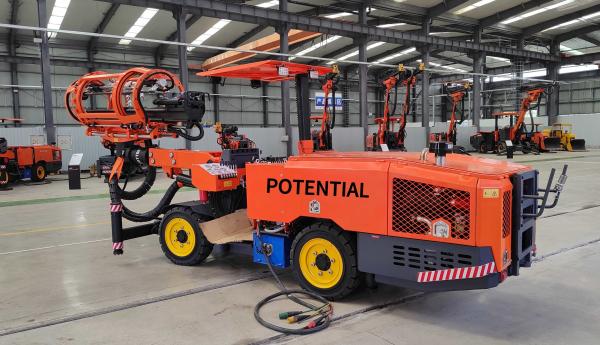

The KDM12A-1BCDL anchor rod trolley is a revolutionary machine that challenges the traditional approach of "double slide+double rock drill." It introduces a new concept of "single slide+single rock drill," which enhances drilling, hanging nets, and anchoring. With its fully automated features, the trolley makes anchoring work much easier and efficient, replacing the previously harsh and time-consuming task with a safe, efficient, easy, and humorous experience.

In comparison to traditional trolleys, this machine is compact in size and has a flexible walking mechanism. Its vehicle module design allows for easy disassembly and assembly, making it suitable for various types of cages going underground and transportation.

The trolley is equipped with state of the art technology and is highly automated, requiring minimal human intervention. This minimizes human error and increases the overall safety of the operation. The compact and flexible design of this machine makes it ideal for underground operations.

The KDM12A-1BCDL anchor rod trolley is user-friendly and efficient, making it a highly sought-after tool for mining, construction, and other related industries. Its innovative design and advanced features make it a game-changer in the industry.

Features:

1. Remote control electric proportional operating system: This system is incredibly user-friendly and provides safe and dependable operation. It's also incredibly precise when it comes to positioning.

2. Universal modular chassis design: Our equipment features a chassis design that promotes convenience in both maintenance and management. It's modular design, makes it easy to swap out and replace components as necessary.

3. Automatic drilling and anti-jamming function: This feature is a fantastic addition to our system as it helps prolong the lifespan of drilling tools and reduces the incidence of failures. The system will detect a potential jam and adjust drilling speed or direction accordingly.

4. Automatic recording of construction data: Through the use of our dedicated app, construction data is automatically recorded and uploaded for analysis and easy management. This feature allows for easy data tracking and problem identification, leading to better decision-making in the long run.

Technical Parameters:

Body

Overall size (LxWxH) mm: 6800×1290×1550 (2350 Rising height)
Rock drill impact frequency kW: 7.5
Hole diameter mm: 32-45
Drilling speed m/min: 0.8-2
Applicable bolt length: 1800 (standard)
Working area (Tunnel height) mm: 2900~5000 (standard)
Other bolting rob (Tunnel height) mm: Length +1100
Bolting rob capacity: 10
Net hanging: YES
Service voltage: 380VAC 50Hz
Total power kW: 32.6
Total power kg: ≈6600

Running chassis

Chassis structure: Articulated
Running from: Rubber wheel
Running speed km/h: 0-6
KW: 44.6
Ground clearance mm: 150
Grade ability (smooth-riding surface): 14°
Min. turning radius m: 2500 (Inner side) / 4000 (Out side)

Boom

Boom Quantity: 1
Boom type: Mixed coordinate boom
Telescope function: YES

Bolting mechanism

Guide rail length mm: 2750
Drill pipe length mm: 1960
Hole depth mm: 1900
Bolting rob type: Tube seam
Bolting plate size mm: ≤150
Bolting rob installation: Auto

Air system

Air flow m³/min: 0.21
Air pressure Mpa: 02-03
Water flow m³/min: 2
Flushing water pressure Mpa: 0.8~1.2
Water inlet pressure Mpa: 0.3~0.6

Other configuration

Cable reel: Optional
Quantity of baskets: YES
Lifting ceiling: YES
Lighting: 3 High brightness LED lights
Extinguisher: YES (4kg*1)
Hand-held dry powder fire extinguisher 4kg×1

Applications:

Customization:

The KDM12A-1BCDL model has a working area (tunnel height) range of 2900~5000mm and a drilling speed of 0.8~2m/min. Applicable bolt length is 1800mm and the telescope function is available. Contact us to discuss your customizations for this Heavy Duty Drilling Machine!
