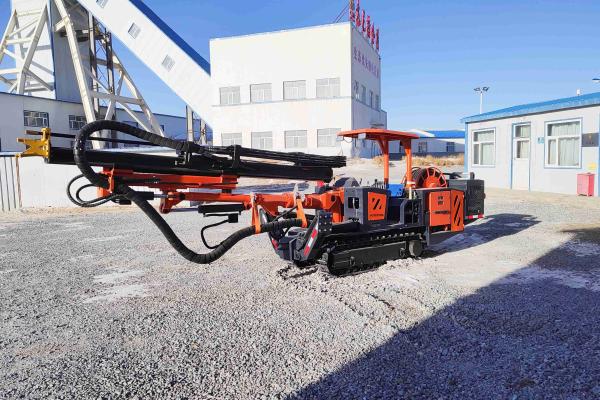

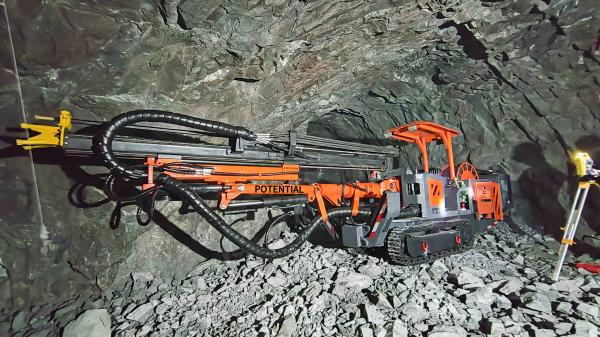

Sturdy Chassis Structure Rock Drilling Trolley For 0.8 - 2m/Min Drilling Speed
Sturdy Chassis Structure Rock Drilling Trolley For 0.8 - 2m/Min Drilling Speed
Sturdy Chassis Structure Rock Drilling Trolley For 0.8 - 2m/Min Drilling Speed
Sturdy Chassis Structure Rock Drilling Trolley For 0.8 - 2m/Min Drilling Speed
Specifications
Brand Name :
POTENTIAL / POTENCY
Model Number :
KD06A-1BCD
Place of Origin :
CHINA
Certification :
ISO9001:2015
MOQ :
1 Unit
Price :
Negotiable
Packaging Details :
1 Unit in 1*40'HQ
Delivery Time :
45 working days
Payment Terms :
T/T, L/C
Supply Ability :
120 units per year
Cable Reel :
Yes 60m
Chassis Structure :
Rigidity Whole Body
Total Power :
32.6kw
Model :
KD06A-1BCD
Section(B×H) :
2×2-3.5×3.5m
Rock Drill Impact Frequency :
7.5Kw
Drilling Diameter :
43-76mm
Drilling Speed :
0.8~2m/min
Description

KD06A-1BCD Sturdy Chassis Structure Rock Drilling Trolley for 0.8-2m/min Drilling Speed

Product Description:

The KD06A-1BCD mining hydraulic rock drilling rig is designed specifically for excavation and mining processes in China's small underground mining faces. This specialized drilling rig is perfect for applications where compact structure, flexibility, and maneuverability are essential. Additionally, it is equipped with crawler walking that enables it to navigate through various terrains and work in small spaces with ease.

The rig is highly efficient, and its hydraulic system ensures smooth and consistent performance. Its compact structure makes it ideal for use in small-scale excavation jobs, while its simple handling and small turning radius make it easy to operate even in limited spaces.

The vehicle is built to endure the demanding environments that characterize underground mining. It's rugged, durable, and built to last. Furthermore, it's equipped with state-of-the-art safety features, which means that it provides maximum protection for the operators.

Features:

High power diesel engine: This equipment is equipped with a high power diesel engine that provides powerful power support to ensure the stable operation of equipment even in high slope terrain.

Translational drilling arm structure: The equipment is designed with a translational drilling arm structure that accelerates rapid positioning between each borehole. It operates without dead corners which makes it suitable for small mine level roadway operations.

Maximum transition speed: The maximum transition speed of the equipment is up to 5km/h, which greatly improves transition efficiency.

Adaptable to terrain: The equipment is capable of operating in all terrain conditions within a slope of 14°, making it highly adaptable. Whether it's a challenging terrain or not, this equipment can get the job done.

Technical Parameters:

Main Technical parameters of KD06A-1BCD
B o d y
Overall size(LxBxH) m 7.05×1.06×1.55(2.35With ceiling)
Hole diameter mm φ43- φ76
Depth of drilling 2.7
Drilling speed m/min 0.8-2
Section(B×H)m 2×2-3.5×3.5
Rock drill impact frequency kW 7.5
Service voltage 380VAC 50Hz
Total power kW 32.6
Total power kg ≈6200
Running chassis
Chassis structure Rigidity whole body
Running from Crawler track
Running speed km/h 0-3
Ground clearance mm 240
Grade ability(smooth-riding surface) 14°
Min.turning radius m 3.4(Inner side)/4.9/5.1(Out side)
Arm
Quantity of Arm 1
Type of arm Mixed coordinate boom
Thruster
Total length m 4.42
Drill pipe length m 3.09
Hole depth m 2.70
Air system
Drill lubrication air volume m/min 0.21
Drill lubrication air pressure Mpa 0.2-0.3
Water system
Water supply m³/h 2
Rock drill water pressure Mpa 0.8-12
Colder entrance water pressure Mpa 0.3-0.6
Other configuration
Cable reel YES 60M
Quantity of baskets YES
Lifting ceiling Optional
lighting 3 High brightness LED lights
Extinguisher

(4kg*1)

Hand-held dry powder fire extinguisher 4kg×1

Applications:

Mining

This technology is perfect for small mines' alleyway operations because it can quickly locate each blast hole and operate without blind spots.

Tunnels

One of the main uses of rock drilling rigs is in tunnel construction. They are widely used in highway, railway, water conservancy, mining, and national defense engineering construction.

Culvert

Rock drilling rigs are ideal for excavation projects of culverts.

Metallurgy

Rock drilling rigs can efficiently carry out rock drilling and drilling operations in major projects such as metallurgy.

Petrochemical industry

In the petrochemical industry, rock drilling rigs can provide stable rock drilling operations and improve work efficiency.

Support and Services:

Our team of experienced technical support professionals is available to assist you with any questions or issues you may have regarding your Jumbo Rock Drill. We offer a variety of services to ensure that your equipment is operating at its best, including:

  • On-site equipment inspections and maintenance
  • Equipment repair and replacement parts
  • Training programs for operators and maintenance personnel
  • 24/7 technical support hotline

We are committed to providing our customers with the highest level of service and support. Contact us today to learn more about how we can help you get the most out of your Jumbo Rock Drill.

FAQ:

Q: What is the brand name of the rock drill?

A: The brand name of the rock drill is POTENTIAL / POTENCY.

Q: What is the model number of the rock drill?

A: The model number of the rock drill is KD06A-1BCD.

Q: What is the place of origin of the rock drill?

A: The rock drill is manufactured in CHINA.

Q: What certifications does the rock drill have?

A: The rock drill is certified with ISO9001:2015.

Q: What is the minimum order quantity for the rock drill?

A: The minimum order quantity for the rock drill is 1 unit.

Q: What is the price of the rock drill?

A: The price of the rock drill is negotiable.

Q: What are the packaging details of the rock drill?

A: The rock drill is packaged as 1 unit in 1*40'HQ.

Q: What is the delivery time for the rock drill?

A: The delivery time for the rock drill is 45 working days.

Q: What are the payment terms for the rock drill?

A: The payment terms for the rock drill are T/T and L/C.

Q: What is the supply ability of the rock drill?

A: The supply ability of the rock drill is 120 units per year.
