Product Description:

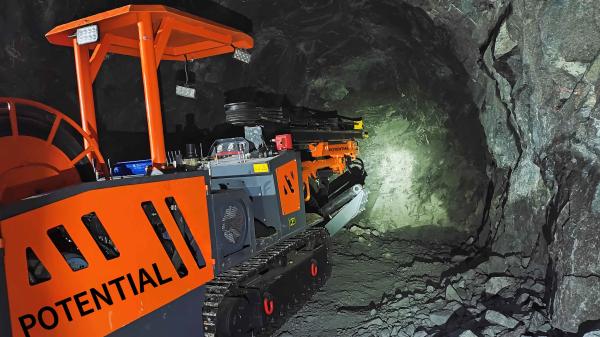

The KD06A-1BCD mining hydraulic rock drilling rig is a specialized drilling rig primarily used in excavation and mining operations in small underground mining faces located across China. This vehicle has been designed with a compact structure, which not only ensures exceptional performance but also simplifies the handling process. This machine is known for its small turning radius, flexible maneuverability, and is convenient for working in small spaces. Additionally, it can effortlessly adapt to all terrain conditions due to its crawler walking design.

The KD06A-1BCD mining hydraulic rock drilling rig offers various benefits. It has been equipped to perform drilling operations with high efficiency and speed, while helping to reduce the workload of the workers. The drilling rig's innovative design contributes significantly to the safe performance of the drilling process. The compact structure, small turning radius, and flexibility make it easy to maneuver on the job site and provides greater precision during drilling.

Furthermore, the machine's crawler walking design ensures that it can be easily operated in any terrain. This ensures that the drilling process is uninterrupted because it does not depend on surface conditions. The KD06A-1BCD mining hydraulic rock drilling rig guarantees maximum productivity and high-quality excavation results without compromising safety, precision and efficiency.

Features:

Technical Parameters:

The KD06A-1BCD boasts impressive technical specifications and features that make it a versatile and reliable drilling machine perfect for various applications.

The overall size of the machine is 7.05 meters (L) x 1.06 meters (B) x 1.55 meters (H) with the ceiling. The hole diameter ranges from φ43-φ76, and its drilling depth is 2.7 meters. The drilling speed ranges from 0.8-2 meters per minute. The machine has a drilling section of 2 meters (B) x 2 meters (H) up to 3.5 meters (B) x 3.5 meters (H). Additionally, the rock drill impact frequency is 7.5 kW. It operates using a service voltage of 380 VAC, 50 Hz, and has a total power output of 32.6 kW. The machine weighs approximately 6200 kg.

The chassis structure of the machine is a rigid whole body, and it runs on a crawler track. It can achieve a running speed of 0-3 km/h and has a ground clearance of 240 mm. The machine has a grade ability (smooth-riding surface) of 14 degrees and can make a minimum turning radius of 3.4 meters (Inner side), 4.9 meters, and 5.1 meters (Outer side).

The machine has one arm with a mixed coordinate boom type.

The total length of the thruster is 4.42 meters, and the drill pipe length is 3.09 meters. The hole depth that can be achieved with the thruster is 2.70 meters.

The air system lubricates the drill with a volume of 0.21 cubic meters per minute and a pressure range of 0.2-0.3 MPa.

The water system has a water supply of 2 cubic meters per hour. The rock drill water pressure ranges from 0.8-12 MPa, and the colder entrance water pressure ranges from 0.3-0.6 MPa.

The machine comes equipped with a 60-meter cable reel, and it has baskets for storage. It also has an optional lifting ceiling and three high brightness LED lights for lighting. Moreover, to ensure safety, the machine is equipped with one hand-held dry powder fire extinguisher with a capacity of 4kg.

Applications:

Mining: The rock drilling rigs are suitable for alleyway operations in small mines. They can quickly locate each blast hole and operate without any blind spots.

Tunnels: Rock drilling rigs are extensively used in tunnel construction for highways, railways, water conservancy, mining, and national defense engineering projects.

Culvert: The rock drilling rigs are perfect for excavation projects of culverts.

Metallurgy: In major projects such as metallurgy, rock drilling rigs can carry out rock drilling and drilling operations efficiently.

Petrochemical Industry: The rock drilling rigs are capable of providing stable rock drilling operations and boosting work efficiency in industries such as petrochemicals.

Support and Services:

The Jumbo Rock Drill is a heavy-duty drilling machine designed for use in underground mining operations. Our product technical support team is available to answer any questions you may have about the Jumbo Rock Drill, including its features, specifications, and capabilities. We also offer a range of services to ensure that your Jumbo Rock Drill remains in optimal condition, including:

• Regular maintenance and inspections
• Repair services
• Replacement parts and accessories
• Training and education for your team

Our technical support and services team is committed to ensuring that your Jumbo Rock Drill operates efficiently and effectively, maximizing your productivity and profitability. Contact us today to learn more about our services and how we can help you get the most out of your Jumbo Rock Drill.

FAQ:

Q: What is the brand name of the rock drill?

A: The brand name of the rock drill is POTENTIAL/POTENCY.

Q: What is the model number of the rock drill?

A: The model number of the rock drill is KD06A-1BCD.

Q: Where is the rock drill manufactured?

A: The rock drill is manufactured in China.

Q: What certifications does the rock drill have?

A: The rock drill is certified with ISO9001:2015.

Q: What is the minimum order quantity of the rock drill?

A: The minimum order quantity of the rock drill is 1 unit.

Q: What is the price of the rock drill?

A: The price of the rock drill is negotiable.

Q: What are the packaging details of the rock drill?

A: The packaging details of the rock drill are 1 unit in 1*40'HQ.

Q: What is the delivery time of the rock drill?

A: The delivery time of the rock drill is 45 working days.

Q: What are the payment terms for the rock drill?

A: The payment terms for the rock drill are T/T and L/C.

Q: What is the supply ability of the rock drill?

A: The supply ability of the rock drill is 120 units per year.
