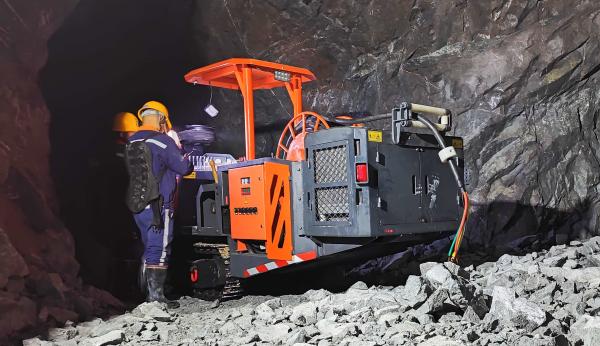

Product Description:

The KD10A-1BCD(L) is designed for small and medium-sized tunnels, tunnels, and culverts, and is ideal for excavation and excavation work in industries such as mining, metallurgy, hydropower, railway, and highway.

Featuring fully hydraulic drive, the machine is capable of rock drilling with automatic parallel extension and retraction of the drilling arm, ensuring the propulsion beam is parallel in all directions. With rock drilling speeds ranging from 0.8 to 2.5 meters per minute, excavation work can be completed efficiently.

The rubber wheels/crawler ensure multiple working surfaces can be operated, with a walking speed of 8km/h for easy and flexible transition. The system is equipped with automatic stop of impact at the end point, automatic anti-jamming drill, and induction of water slag discharge, making it easy to operate, safe and reliable.

Features:

For those in the construction industry, drilling is a crucial part of the excavation process. To make this task easier, a machine has been developed that offers a compact structure and strong overall rigidity. The machine also has a low center of gravity, providing it with flexible maneuverability, and allowing it to operate without causing stability issues.

One significant advantage of this drilling machine is its ability to utilize electric work for its drilling operation. This offers several benefits: it improves the working environment by reducing noise and dust. Additionally, this makes the device more energy-efficient. This, in turn, enables a higher level of construction efficiency and quality.

Another advantage of this drilling device is its flexible hydraulic rock drilling mechanism. This allows the machine to perform rock drilling operations on the working face, roof, side walls, and floor of a tunnel. Furthermore, this versatile machine can not only drill boreholes for excavation purposes but can also conveniently drill anchor holes.

Technical Parameters:

Overall size:

• Length: 10.5m
• Width: 1.45m
• Height: 2.1m (with ceiling 2.94m)

Hole diameter: φ43- φ76mm

Drilling speed: 0.8-2m/min

Section: B × H 2.5 × 2.5-5 × 5m

Rock drill impact frequency: 7.5kW

Service voltage: 380VAC 50Hz

Total power: 57.1kW

Total weight: approximately 8500kg

Chassis structure: Articulated

Running from: Rubber wheel

Running speed: 0-9km/h

KW: 50

Ground clearance: 185mm

Grade ability (smooth-riding surface): 14 degrees

Min. turning radius: 4.2m (Inner side) / 6.0m (Out side)

Quantity of Arm: 1

Parallel function: YES

Telescope function: YES

Total length: 4.42m

Drill pipe length: 3.09m

Hole depth: 2.70m

Drill lubrication air volume: 0.21m/min

Drill lubrication air pressure: 0.2-0.3Mpa

Pipe reel: NO

Water supply: 2m³/h

Rock drill water pressure: 0.8~12Mpa

Colder entrance water pressure: 0.3~0.6Mpa

Cable reel: YES

Quantity of baskets: N O

Lifting ceiling: YES

Lighting: 5 high brightness LED lights

Extinguisher: 4kg x 1 hand-held dry powder fire extinguisher

Applications:

The KD10A-1BCD(L) Rock Drilling Jumbo has a chassis structure that is articulated, making it highly maneuverable in tight spaces. With a total power of 57.1kw, it is capable of drilling diameters ranging from 43-76mm at a drilling speed of 0.8~2m/min.

This Rock Drilling Jumbo is ideal for use in a variety of scenarios including mining, tunneling, and construction. Its powerful drilling capabilities make it perfect for drilling holes for anchor rods and other supporting structures. It is also suitable for use in robotic rock drill applications, making it a versatile machine that can be used in a variety of industries.

The KD10A-1BCD(L) Rock Drilling Jumbo is perfect for use in underground mining operations where space is limited and maneuverability is key. Its articulated chassis structure allows it to navigate tight spaces with ease, while its powerful drilling capabilities make it ideal for drilling holes for support structures and other mining applications.

In tunneling operations, the KD10A-1BCD(L) Rock Drilling Jumbo can be used to drill holes for anchor rods and other support structures. Its powerful drilling capabilities make it a reliable and efficient machine that can help speed up the tunneling process.

In construction, the KD10A-1BCD(L) Rock Drilling Jumbo can be used for a variety of applications including drilling holes for foundation support and other construction-related tasks. Its versatility and maneuverability make it a valuable asset on any construction site.

The KD10A-1BCD(L) Rock Drilling Jumbo is also suitable for use in robotic rock drill applications. Its powerful drilling capabilities and maneuverability make it a reliable and efficient machine for use in a variety of industries.

In conclusion, the POTENTIAL/POTENCY KD10A-1BCD(L) Rock Drilling Jumbo is a highly versatile machine that can be used in a variety of scenarios including mining, tunneling, and construction. Its powerful drilling capabilities and maneuverability make it an ideal machine for drilling holes for anchor rods and other support structures. It is also suitable for use in robotic rock drill applications, making it a valuable asset in a variety of industries.
