Product Description:

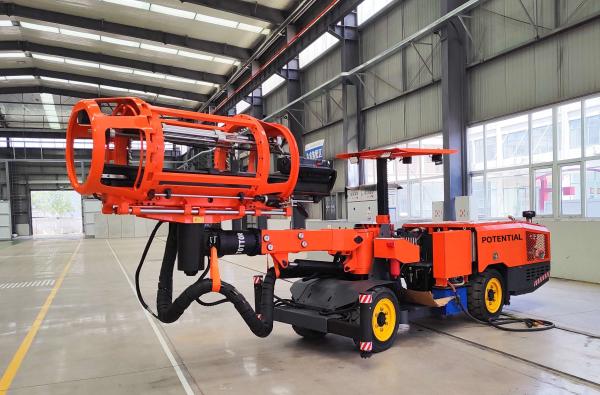

The KDM12A-1BCDL anchor rod trolley is a revolutionary machine that has broken away from the traditional approach of using "double slide+double rock drill". Instead, it has introduced a new concept of "single slide+single rock drill".

This innovative approach has made drilling, hanging nets, and anchoring fully automated, which has transformed the previously strenuous and inefficient anchoring work into a safe, efficient, straightforward, and - dare we say it - even humorous task.

Designed with a compact size and flexible walking capabilities, this machine can be easily disassembled and assembled, thanks to its vehicle module design. This feature makes it suitable for use with various types of cages that are needed for underground transportation purposes.

To summarize, the KDM12A-1BCDL anchor rod trolley offers users a new dimension to drilling and anchoring work. With its cutting-edge technology, it has made the daunting task of creating strong, reliable anchor rods easy and efficient. Thank you for considering the KDM12A-1BCDL anchor rod trolley for your drilling and anchoring needs!

Features:

Our electric proportional operating system comes with a remote control, making it easy and safe to operate. The precision positioning adds an extra layer of reliability to ensure accurate results.

The universal modular chassis design offers a convenient solution for equipment maintenance and management. It allows for effortless customisation and repairs.

The system has an automatic drilling feature, and the anti-jamming function significantly improves the lifespan of drilling tools and reduces the failure rates.

With the automatic recording feature in place, users can upload construction data through a dedicated app for hassle-free management and analysis. This helps to streamline the process and reduce space for human error.

Technical Parameters:

Body

• Overall size(LxWxH) mm: 6800×1290×1550(2350 Rising height)
• Rock drill impact frequency kW: 7.5
• Hole diameter mm: 32-45
• Drilling speed m/min: 0.8-2
• Applicable bolt length: 1800 (standard)
• Working area(Tunnel height) mm: 2900~5000 (standard)
• Other bolting rob(Tunnel height) mm: Length +1100
• Bolting rob capacity: 10
• Net hanging: YES
• Service voltage: 380VAC 50Hz
• Total power kW: 32.6
• Total power kg: ≈6600

Running chassis

• Chassis structure: Articulated
• Running from: Rubber wheel
• Running speed km/h: 0-6
• KW: 44.6
• Ground clearance mm: 150
• Grade ability(smooth-riding surface): 14°
• Min.turning radius m: 2500(Inner side)/4000(Out side)

Boom

• Boom Quantity: 1
• Boom type: Mixed coordinate boom
• Telescope function: YES

Bolting mechanism

• Guide rail length mm: 2750
• Drill pipe length mm: 1960
• Hole depth mm: 1900
• Bolting rob type: Tube seam
• Bolting plate size mm: ≤150
• Bolting rob installation: Auto

Air system

• Air flow m³/min: 0.21
• Air pressure Mpa: 02-03
• Water flow m³/min: 2
• Flusing water pressure Mpa: 0.8~1.2
• Water inlet pressure Mpa: 0.3~0.6

Other configuration

• Cable reel: Optional
• Quantity of baskets: YES
• Lifting ceiling: YES
• lighting: 3 High brightness LED lights
• Extinguisher: YES (4kg*1)
  Hand-held dry powder fire extinguisher 4kg×1
