200 KW Motor Power Raise Borer Machine KDTJ-4000L For Underground Mining
200 KW Motor Power Raise Borer Machine KDTJ-4000L For Underground Mining
200 KW Motor Power Raise Borer Machine KDTJ-4000L For Underground Mining
200 KW Motor Power Raise Borer Machine KDTJ-4000L For Underground Mining
Specifications
Brand Name :
POTENTIAL / POTENCY
Model Number :
KDTJ-4000L
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
120 units per year
Delivery Time :
45 working days
Packaging Details :
1 Unit in 1*40'HQ
Model :
KDTJ-4000L
Nominal Reaming Diameter :
4000mm
Drill Depth :
400m
Drilling Angle :
60～90°
Walking Style :
Crawler
Maximum Thrust of Guide Hole :
4300Kn
Motor Power :
200Kw
Dimensions (Transportation Status) :
6080X1960X2200mm
Description

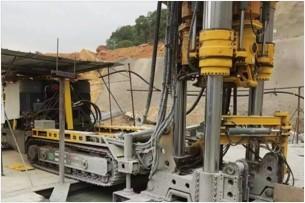

Experience the Best in Performance and Safety with Our Raise Borer Machine KDTJ-4000L for Underground Mining

Product Description:

Our raise borer KDTJ-4000L is designed by our company in response to the new characteristics of underground mining technology. This model optimizes the original rock drilling parameters and uses system integration technology to reduce the overall size of the machine. The walking part adopts a track integrated walking, which can better adapt to the tunnel environment.

Features:

1) Fully automatic unloading rod, eliminating manpower and improving construction efficiency.
2) The automatic anti deviation control system for guide holes can eliminate drilling deviation caused by rock structure and poor manual operation.
3) Remote control and line control dual-use operation, simple operation, programmatic control with minimal human intervention, easy to learn, and can be operated by general personnel in a short period of training.
4) Crawler self-propelled walking, easy to move.
5) High work efficiency, high parameter indicators, large surplus torque and tension, suitable for construction with a diameter of 4.5 meters.
6) Electrical and hydraulic components are made of fully imported components, ensuring high reliability. The hydraulic system adopts the German Linde hydraulic closed hydraulic system, which has high hydraulic transmission efficiency and low reactive power.
7) 4.0m can be selected on the controller 3.5m There are four types of drilling machines, 3.0m and 2.5m, for aperture matching operations. Different gear ranges can be selected for drilling machines to meet the needs of different apertures.
8) Module integrated assembly, easy maintenance and repair, and the small size of the whole machine can adapt to smaller tunnel conditions.

Technical Parameters:

Component Name Unit KDTJ-4000L Raise Borer
Host Rated Speed r/min Guide Hole:28
Reaming:6
Rated Torque kN.m 258
Maximum Thrust of Guide Hole kN 4300
Maximum Reaming Tension kN 4300
Nominal Reaming Diameter mm 4000
Depth of Drilling m 400
Drilling Angle ° 60～90
Weights t 23

Hydraulic and Electrical		 Rated Pressure Mpa Auxiliary Pump:35
Main Pump :35
Total Motor Power kW 200
Rated Voltage V 380/660

Walking System		 Travelling Pattern -
Diesel Crawler Self-propelled
Travelling Speed km/h 1.2/2.4
Maximum Climbing Capacity ° 14
Minimum Turning Radius mm 4500
Ground Clearance mm 260
Diesel Engine Rated Power kW 96
Rated Speed of Diesel Engine r/min 2200

Equipment Dimensions (Transportation Status)		 mm 6080X1960X2200

Equipment External Dimensions (Working Status)		 mm 7150X2775X3900

Applications:

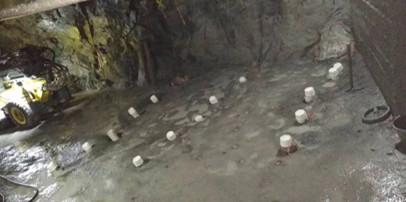

Mining: Our raise boring machines are mainly used for the following purposes:
Install anchor rods and wire rope nets to enhance the stability of the mine.
Establish a mine ventilation system to ensure the safety of miners during their operations.
Eliminate accumulated water in the mine to prevent mine flooding.
Transport ore to improve the efficiency of ore transportation.
