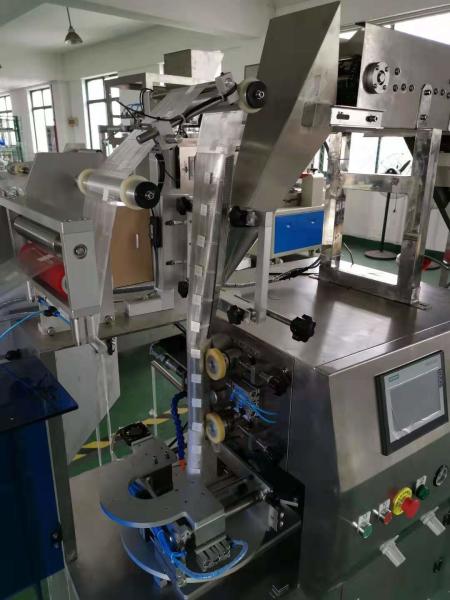

3 Sides Sealing Bag 0.6Mpa 55ppm Dry Powder Filling Machine
3 Sides Sealing Bag 0.6Mpa 55ppm Dry Powder Filling Machine
3 Sides Sealing Bag 0.6Mpa 55ppm Dry Powder Filling Machine
3 Sides Sealing Bag 0.6Mpa 55ppm Dry Powder Filling Machine
3 Sides Sealing Bag 0.6Mpa 55ppm Dry Powder Filling Machine
3 Sides Sealing Bag 0.6Mpa 55ppm Dry Powder Filling Machine
Specifications
Brand Name :
EM
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD5000-8000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15 working days
Packaging Details :
wooden case
Material :
SUS304
Bag type :
3 sides sealing bag
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation
Machine type :
Bag Forming Machine,Sealing Machine,Bag Sealing
Voltage :
220V/380V
Computerized :
Yes
Power(w) :
1.8 KW
Speed :
20-50bags/min
Plc :
SIMENS
Servo motor :
ABB
Description

Disinfectant powder Dry Powder Packaging Equipment SUS304 Material

Control System:PLC programmable computer controller inverter and so on, high integration, the ability to control and reliable operation .Touch screen technology enabled applications to operate machines more reliable and convenient .Photoelectric sensor, encoder, the switches are close to the EMport of advanced sensors. machinery and electronics integration has been a perfect performance.

powder Technical Parameter:

  • Film width 120mm 140mm
  • Air pressure ≥0.6Mpa
  • film outside diameter ≤Φ350㎜
  • Film inside diameter Φ76㎜
  • Speed 25-55 ppm 
  • Electricity Consumption 0.5KW
  • Weight 350KG
  • Size (L×W×H) 900mm×800mm×1800mm Ž

1. Low cost high gain, high speed and efficiency.

2. Famous brand PLC control system, large touch screen,convenient to operate.

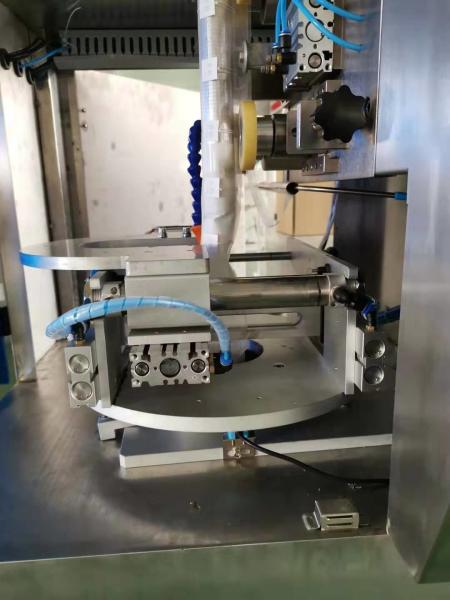

3. Film drawing down system and horizontal sealing controlled by servo motor.

4. Minimize the loss with complete automatic warn protection function.

5. It can complete feeding, measuring, filling, sealing, date, printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

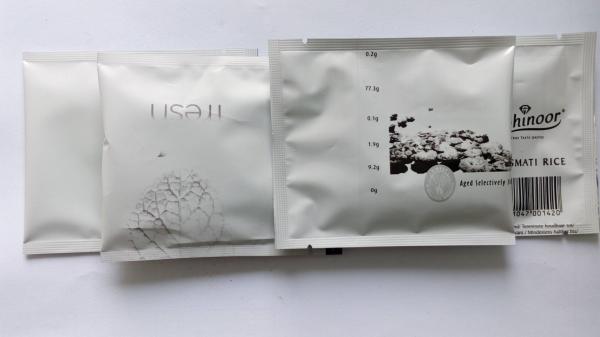

6. Method of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

Applications:

This type of vertical packing machine is suitable for packing powder which can be packed by film.

Powder: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, detergent powder, pesticides, fertilizers, chemical raw materials, etc.
