Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage
Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage
Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage
Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage
Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage
Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage
Specifications
Brand Name :
EM
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD4000.00-7000.00
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 SETS
Delivery Time :
15 WORKING DAYS
Packaging Details :
WOODEN CASE
Warranty :
12 months
Material :
AL film,Plastic,Paper,PE film
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation
Machine type :
triangle Bag packing Machine,Sealing Machine,Bag Sealing
Voltage :
220
Power(w) :
2.8kw
Speed :
20-50bags/min
Application :
tea bag filling and packing
Machine frame :
SUS304
Description

Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage

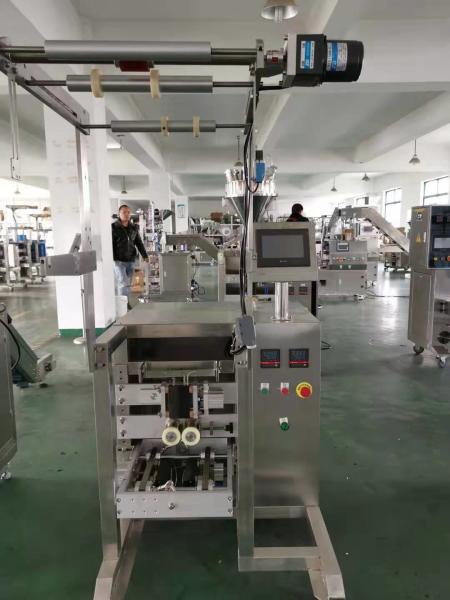

XY110SJ Automatic tea bag filling and packing machine

1. Ultrasonic non-trace sealing cut to produce three-dimensional tea bag with beautiful bag shape and firm sealing

2. Automatic quantitative measurement is convenient for changing packaging specifications and types

3. PLC programmable control, touch screen operation, more convenient to use, more simple operation

4. Yadeke dynamic components and schneider low voltage appliances improve the stability of long-term operation of the equipment

5. Production capacity: 1200-2000 bags/hour for bags

project
Measuringrange 1-10g

Metering accuracy

 ±0.15g

Measurement method

 4-6 heads tea weighter

Packaging speed

 20-50bags/min

Packing method

Inner bag:3 sides sealing

Outer bag:hot sealing
Packing size

Inner bag:120mm (48*50 mm)

Inner bag:140mm (58*60 mm)

Inner bag:160mm ( 68*70 mm)

Packaging

Inner bag: ultrasonic sealing materials such as nylon mesh cloth, non-woven cloth, PLA corn fiber, etc

Material specification

 Inner bag:120 mm ,140 mm

Unwinding quantity

 1rolls

Unwinding diameter

 ≤Φ 400 mm

Inside of paper roll

 Φ 76 mm

Number of operators

 1 worker
Air pressure ≥ 1.2 Mpa
power 2.8Kw
size

Inner bag machine:L 1600 * W 800 * H 1900
weight 350 Kg

Suger Granule Filling Machine / Herbal Tea Bag Filling Machine 220 Voltage
