Double Unwinder 3 Side Seal Pouch Maker Machine 250 Segments/Min
Double Unwinder 3 Side Seal Pouch Maker Machine 250 Segments/Min
Double Unwinder 3 Side Seal Pouch Maker Machine 250 Segments/Min
Double Unwinder 3 Side Seal Pouch Maker Machine 250 Segments/Min
Double Unwinder 3 Side Seal Pouch Maker Machine 250 Segments/Min
Double Unwinder 3 Side Seal Pouch Maker Machine 250 Segments/Min
Specifications
Brand Name :
CJ
Model Number :
500
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30sets/months
Delivery Time :
20 days
Packaging Details :
plastic film wrapping
Material :
composite plasatic film,laminated paper
Bag type :
tea bag,candy bag ,powder bag ,food bag ,mask bag etc
Warranty :
one year
Voltage :
380V/50HZ
Condition :
New
Computerized :
Yes
Weight :
4000KG
After-sales service provided :
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation
Power(w) :
45kw
Description

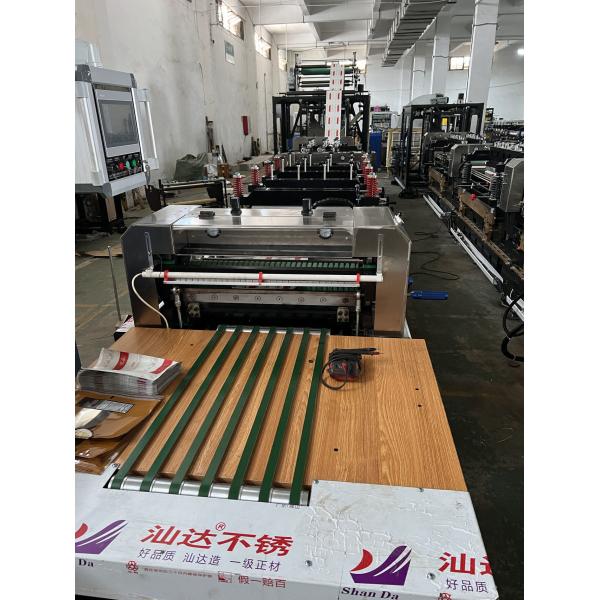

CJZD-500 Double unwinder three side sealed bag/pouch making machine

Three side sealing pouch making machine is suitable for three-side bag sealing composite film bag making process, and can meet various production requirements of wide range of bag making specifications, high production efficiency and large batch size .

Specifications :

Suitable material Suitable for various heat sealing composit films
Machine type 3 seal with normal double unwinder
Tube size Max width:1000mm,max diameter:Ф800mm
Film thickness 0.045-0.15mm(single layer)
Bag making speed 250 segments/min
Bag making width 75-500mm
Bag making length 440mm(longitudinal sealing twice)
Control system PLC control system
Material traction mechanism Servo motor system traction
Discharge system Discharge shaft,tripod or K frame
Braking device Constant tension encoder magnetic particle control system
Overall power 35kw
Cooling water About 15L/min
Air supply 0.6Mpa
Power supply Three phase 380V/50HZ
Weight Apx4000kgs
Dimension 11×2×2.2m(L×W×H)

Applications:

Three-side sealing bag has good barrier performance, moisture resistance, low heat sealing and high transparency, suitable for three-sided sealed bag products such as tea, candy, powder bag, snack food, nuts and seeds, rice, makeup bag, mask eye mask bag, medicine bag etc.
