Specifications
Brand Name :
CJ
Model Number :
500
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/months
Delivery Time :
30 working days
Packaging Details :
plastic film wrapping
Machine Dimension :
L1300 X W2000 X H2200mm
Zipper Type :
Zipper
Power Supply :
3 Phase 380V/50HZ
Application :
Packaging Of Various Granular, Powder, Liquid And Solid Products
Bag Width :
75-500mm
Air Pressure :
0.6MPa
Power Consumption :
40KW
Max Speed :
200 Bags/min
Description

The three side sealing Mask Bag/Pouch Making Machine with zipper type and advance technology

Product Description:

The Three Side Sealing & Zipper Machine is a high-quality packaging machine designed for various types of products. It is perfect for sealing and packaging granular, powder, liquid, and solid materials in a three-side sealed bag or pouch. This machine is a must-have for any company or business that requires efficient and reliable packaging solutions.

  • Machine introduction:

The Three Side Sealing & Zipper Machine is suitable for a wide range of products, making it a versatile and valuable investment. It can be used for packaging snacks, such as chips, nuts, and candies, with the option of adding a zipper for easy opening and resealing. It is also perfect for packaging masks, ensuring they are sealed and protected from external elements.

This machine is designed for high efficiency and productivity. It is easy to operate, with simple controls and adjustments for different bag sizes and materials. The three-side sealing method ensures a tight and secure seal, keeping the products fresh and intact. The zipper feature also allows for convenient storage and transportation of the packaged products.

The Three Side Sealing & Zipper Machine is made with top-quality materials and advanced technology, ensuring durability and long-term use. It is also designed with safety features to prevent accidents and ensure the well-being of the operators.

Specifications:

Suitable material Suitable for various heat sealing composit films
Tube size Max width:1000mm,max diameter:Ф800mm
Film thickness 0.045-0.15mm(single layer)
Bag making speed

three side sealing: 250 segments/min,

Three side zippered bag: 200 segments/min

Bag making width 75-500mm
Bag making length 440mm(longitudinal sealing twice)
Control system PLC control system
Material traction mechanism Servo motor system traction
Discharge system Discharge shaft,tripod or K frame
Braking device Constant tension encoder magnetic particle control system
Overall power 40kw
Cooling water About 15L/min
Air supply 0.6Mpa
Power supply Three phase 380V/50HZ
Weight Apx5000kgs
Dimension 13×2.×2.2m(L×W×H)

Applications:

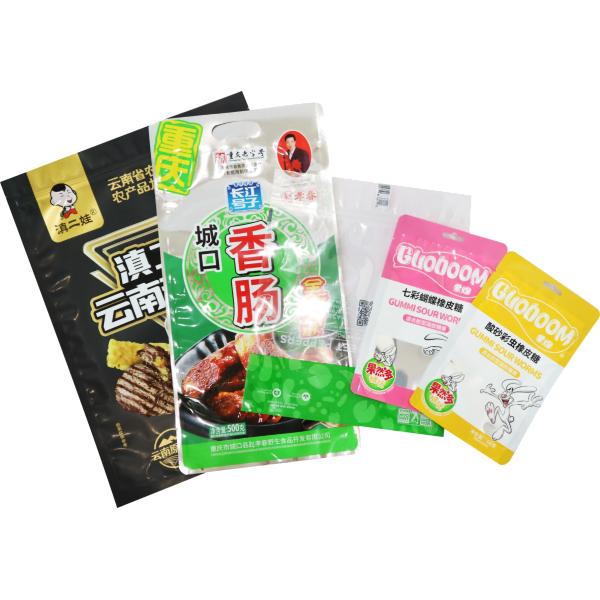

Three-side sealing with zipper bag has good barrier performance, moisture resistance, low heat sealing and high transparency, suitable for three-sided sealed bag products such as tea, candy, powder bag, snack food, nuts and seeds, rice, makeup bag, mask eye mask bag, medicine bag etc.with zipper function it has Strong sealing, moisture-proof, air-tight and UV proof.
