3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch
3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch
3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch
3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch
3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch
3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch
Specifications
Brand Name :
XDA
Model Number :
XDA-H12
Place of Origin :
China
MOQ :
50sets
Price :
20 - 40 USD
Payment Terms :
L/C, T/T
Supply Ability :
5000 per month
Delivery Time :
15 - 30 days
Packaging Details :
Standard
Name :
winch for poultry house
Application :
winch for poultry house, Feed water line lift system winch
Size :
1200lbs 1500lbs 3000lbs 3500lbs
contact :
whatsapp 008618830728667
Description

3500LBS 3000Lbs 1200Lbs 1500Lbs Handle Winch poultry chicken broiler farm house automatic drinking feeding line

Poultry House Feeding and Drinking Winch:

Small manual winch features:
1. Equipped with swing can be used for lifting, support, or after the goods handle hauling goods such as a variety of purposes.
2. With self-locked brake function, can make the goods stopped in any position, safe and reliable.
3. The machine before delivery has strict quality inspection, lubrication and idling experiment was carried out.
4. With a variety of roller type: single roller, double rollers.
5. Product series, suitable for different working load.
6. The turbine, worm respectively made up of cast iron and after heat treatment of high-quality carbon steel, performance is strong.
7. The thrust bearing oil bearing.Good lubricity, rotating flexible, easy to maintain.
8. Each parts surface coating or galvanized processing, respectively, the surface of the beauty is generous.
Can be used to improve feed lines, water lines, wet curtain fan, such as livestock equipment and other equipment;Gear materials using manganese steel heat treatment;Surface coating, galvanized,Shaft sleeve with saturated oil ketone powder metallurgy, use will exempt lubrication.

Manual hand winch for feed line and drink line

1 Be used for poultry feeding line and drinking line
2 Easy to assemble and disassemble
3 Anti-rust, Anti-wearing, and Easy to clean.
4 Durable, User Friendly and Easy maintence.

Detailed parameter:

Name poultry winch
Model 3500LB 1500LB
Loading Capacity 3500 lbs (1575kg) 1500lbs (675kg)
Gear ratio 48:1
Surface process Zinc plated or Power coating
Type Base plate :No Crank:No
Application Poultry feeding line Poultry drinking line

Winch for Feeding Line

Rated load: 3500Lbs (1500kg) / 3000Lbs(1360kg) Ratio:38.73:1 Hub Diameter:93mm Surface Proess:Chrome Spray

Winch for Drinking line

Rated load: 1500Lbs (680kg) Ratio:41:1 Hub Diameer:49mm Heated Process:Worm,Worm Wheel Surface Proess:Chrome Spray

Whinch for Air Inlet

Rated load: 1500Lbs (680kg) Ratio:41:1 Hub Diameter:49mm Heated Process:Worm,Worm Wheel Surface Proess: Chrome Spray

Winch for Cage breeding/Air Inlet

Rated load: 660Lbs (300kg) Ratio:5:1 Surface Proess: Galvanization Spray

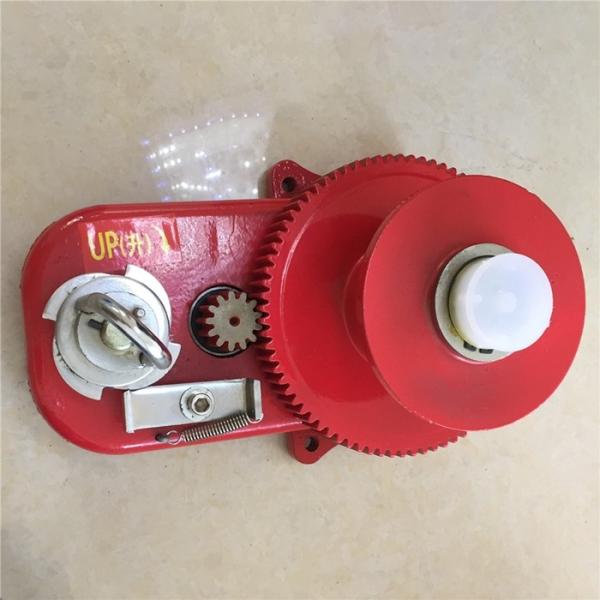

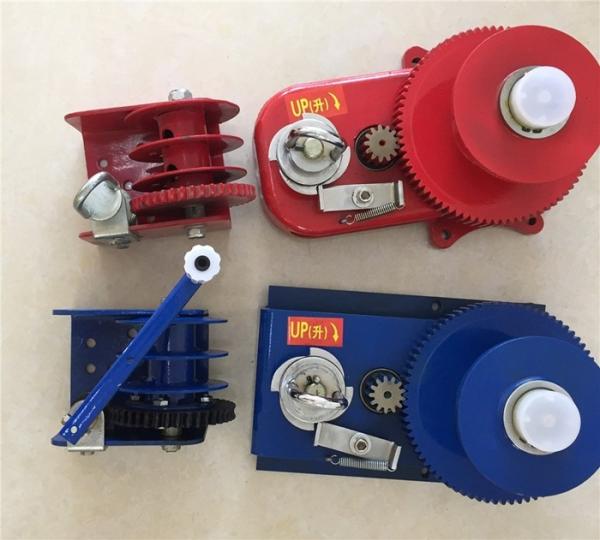

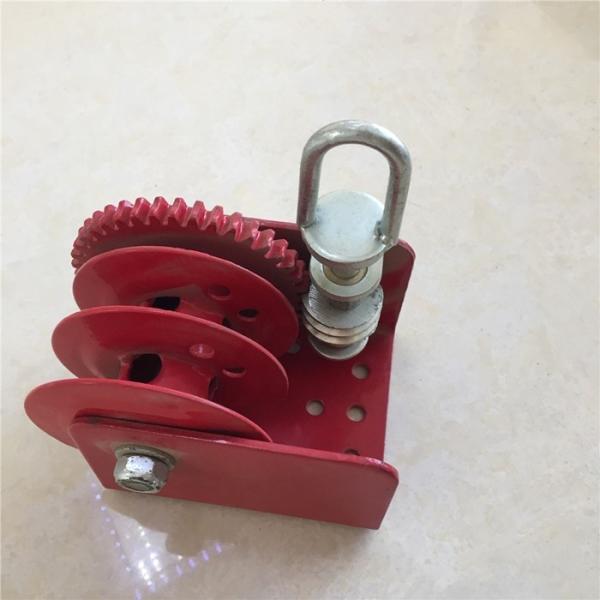

Winch Pictures:
3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch

3500 LBS 3000 Lbs 1200 Lbs 1500 Lbs Poultry Handle Winch
