Stainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity
Stainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity
Stainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity
Stainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity
Specifications
Place of Origin :
Jiangsu, China
Certification :
ISO,SGS,CE
Supply Ability :
10 Piece/Pieces per Week
Packaging Details :
Stainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity: Good Packed by plastic wrapo on Iron Frame, Suitable for land transporation and sea shipping.
MOQ :
>=1 Pieces
Price :
Negotiable
Model Number :
As per requirement
Payment Terms :
L/C, T/T
Delivery Time :
30days
Condition :
New
Material :
Stainless Steel or Carbon Steel
Material Feature :
Fire Resistant
Structure :
Conveyor System
Power(W) :
55-110KW
Speed :
Adjsutable(1-60 M/min)
Rotating direction :
Left hand or right hand
Port :
Shanghai
Description
Stainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity
Product description
Screw conveyor is used in many industries, such as building materials, chemical engineering, coal, grain and oil, fodder. It is suitable for horizontal or inclined conveyor powdery, granulous and small block material, such as grain, dinas, coal, flour, cement, chemical fertilizer and so on. It cant convey material which is easy to metamorphic, sticky, agglomeration; Using temperature of environment is -20~50℃,conveying material temperature is ≤200℃.
Stainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity
Technical Parameter

型号

Model

 LXD-250 LXD-400 LXD-600 LXD-700 LXD-800 LXD-1000

输送量(t/h)

Conveying capacity

 10 20 60 100 200 300

螺旋直径(mm)

Screw diameter

 250 400 600 700 800 1000

螺旋轴长度(mm)

Screw length

根据用户物料特性设计

As per properties of the product

电机功率(KW)

Motor power

根据用户物料特性设计

As per properties of the product
Work principle

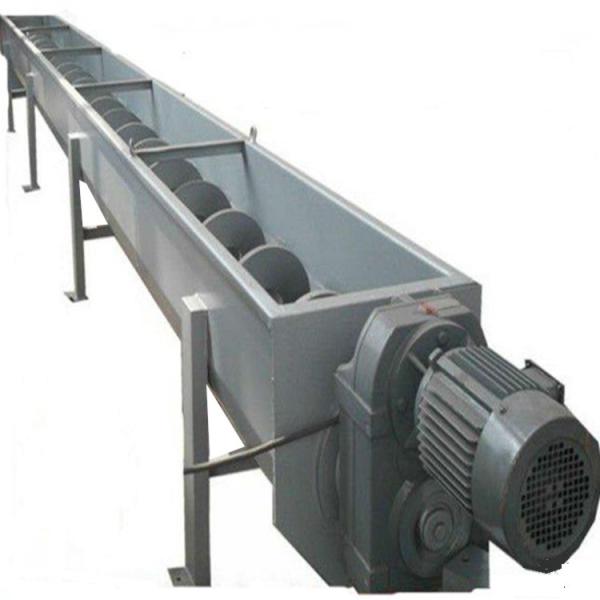

Horizontal screw conveyor is the use of rotating screw within the casing materials will be transported along a fixed time and delivery work, head and tail bearing to the shell, sliding bearing is equipped with dust-proof sealing device for the suspension bearing, bearing bush generally use of powder metallurgy, transport cement adopts the felt pad, hoisting shaft and propeller shaft connected by sliding block.
Stainless Steel Screw Conveyor System Screw Silo Hoppers Large CapacityStainless Steel Screw Conveyor System Screw Silo Hoppers Large Capacity
