Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer
Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer
Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer
Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer
Specifications
Place of Origin :
Jiangsu, China
Certification :
CE,SGS,ISO,ASME
Supply Ability :
10 Piece/Pieces per Year
Packaging Details :
Good Packed by plastic wrapo on Iron Frame, Suitable for land transporation and sea shipping.
MOQ :
>=1 Pieces
Price :
Negotiable
Model Number :
As per requirement
Payment Terms :
L/C, T/T
Delivery Time :
120 days
Applicable Industries :
Environmental production
Condition :
New
Type :
Rotary Drying Equipment
Voltage :
220/380/440/As per design
Power(W) :
55-110KW
Warranty :
12 months
Description
Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer

Product Description

Hollow Paddle Dryer once was designed as an indirect dryer. Since that time its application is diversified from basic process applications like drying, heating and cooling to more sophisticated processes like crystallization, coating, sterilization and calcination. Because of its wide range of applications the paddle dryer is used in the food industry as well as in the pharmaceutical and specialty chemical industry. By far the largest amount of the global SAP (super absorbers, as used in diapers) is produced in this type of machine.

Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer

Main Features

(1) vacuum paddle dryer low with energy consumption:As a result of indirect heating,no large amount hot air with lot of energy been carry away,high thermal efficiency.
(2) vacuum paddle dryer unit has a huge effective heat transfer surface area, the smaller the size of the device.It greatly reduces the construction area and building space.
(3) wide range of materials handling:the use of different media,both heat-sensitive materials can handle,but also handle high-temperature materials.Common media are: thermal oil or steam.Can be continuous operation can be intermittent operation, can be applied in many fields.

Technical parameter

型号

Model

面积

Area

(m2)

处理量

Capacity

(t/d)

总功率

Total power(kw)

导热油,蒸汽

Conduction oil & steam (.C)

主机外形尺寸

Dimension(mm)

设备总重约

Total weight of equipment

(T)

长

(L)

宽(W)

高(H)

JYD-5

20

5

7

0~200

4800

900

900

2.5

JYD-10

40

10

11

0~200

6000

1300

1300

5.2

JYD-15

60

15

23

0~200

6800

1500

1500

9

JYD-20

80

20

30

0~200

6900

1600

1600

11

JYD-25

100

25

44

0~200

7500

1700

1700

13

JYD-40

160

40

70

0~200

8900

2200

2400

18

JYD-50

200

50

90

0~200

9200

2300

2500

22

JYD-60

250

60

150

0~200

11000

2800

2800

32

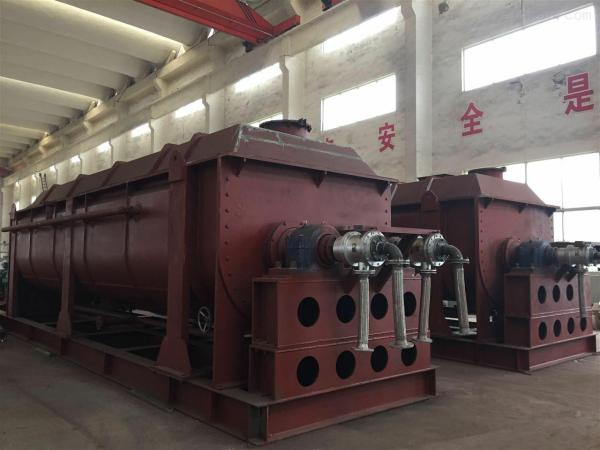

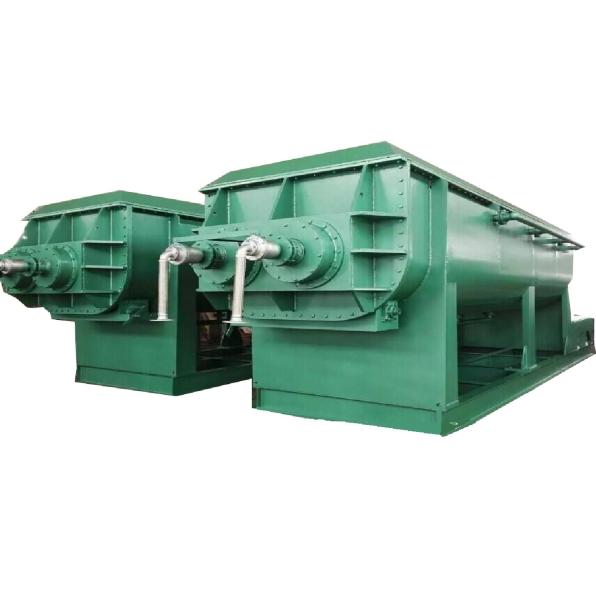

Detailed Images

Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer
Customized Carbon Steel Double Screw Hollow Paddle Dryer Carbon Steel Swedge Dryer
