Rendering plant

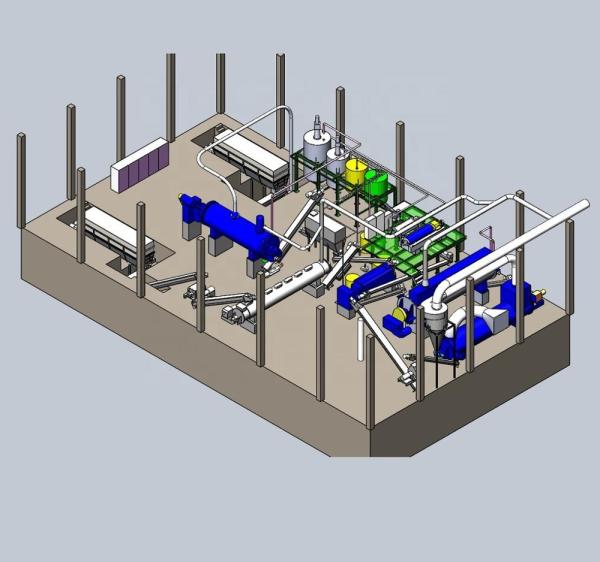

The rendering plant is a complete plant including all the machinery and equipment required for the animal poultry production line. The rendering Plant we designed is very compact with reasonable space.

Belt conveyor

It's mainly used for conveying materials, especially for whole chicken,whole duck and etc.

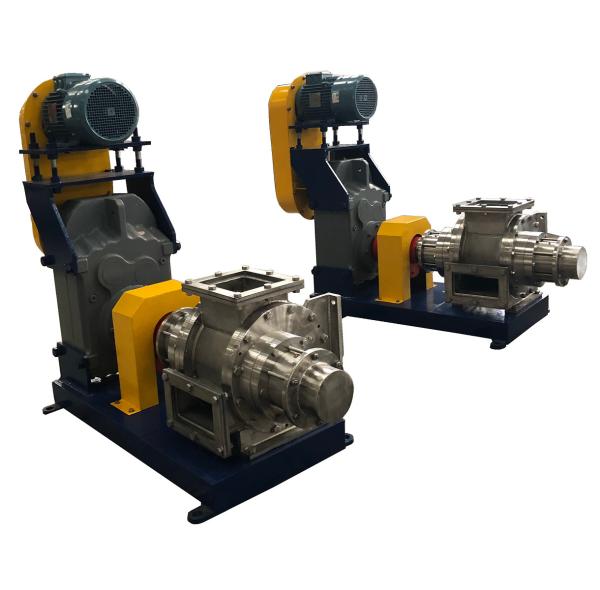

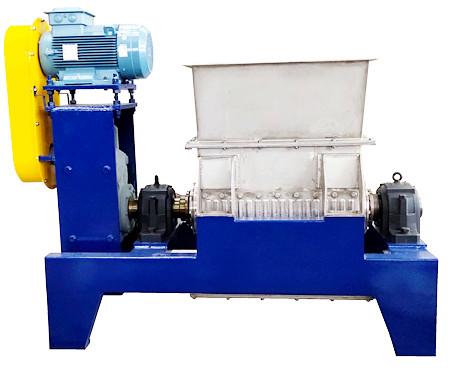

Crusher

There are single shaft, double shaft, multiple shaft crusher to choose from, which depends on your raw material.
It's used for cutting large material into small pieces and crushing the frozen material into evenly right size, it is for better conveying and cooking.

Screw conveyor

The screw conveyor is very essential in the whole process. It can be made from carbon steel or stainless steel. It's mainly used for conveying materials, which is easy to clean and with long service life.

Material silo

The volume of the silo isdepend s on your required capacity. It is made of 6mm carbon steel plates. The top and bottom are reinforced by carbon steel angle iron.

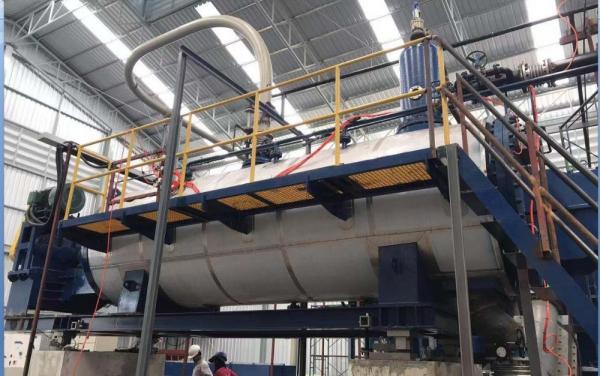

Cooker

In this process, there are batch cooker and high temperature high pressure continuous cooker to choose from.

The Batch cooker is used for cooking the materials by batch and to ensure the quality of products.

The cooker has two parts: the rotor and the jacket.

Screw press

The screw press plays a decisive role in the whole process. It uses a set of variable diameter shafts and variable pitch screws, running in opposite direction and squeezing out the liquid through the filtering plates.

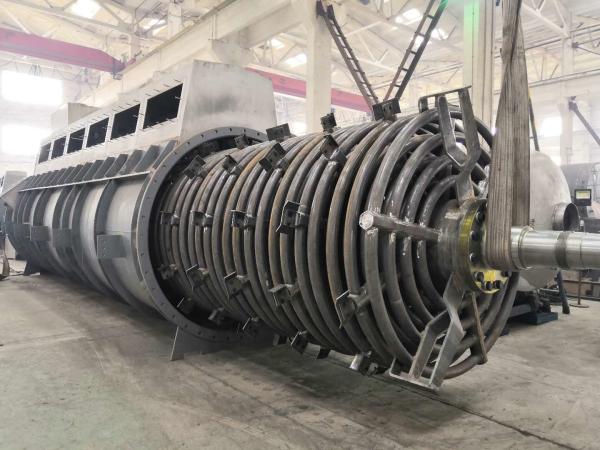

Dryer

There are multilayer of coiled tube inside the cylinder, which aim at increasing heating area and drying the material to achieve the good drying effect.

Hammer mill

It is used for grinding material . It is with compact structure, simple operation, smooth operation and durable.

Meal cooler

The cooler mainly cools the materials from the dryer to the room temperature, and then goes to the packing system. It lowers the temperature of the material by contacting the cold wind. The cold wind will be extracted through the bag dust filter.
