Specifications
Place of Origin :
Jiangsu, China
Certification :
CE,ISO,SGS,TUV,DNV certificate
Supply Ability :
10 Piece/Pieces per Week
Packaging Details :
China supply surface evaporative condenser : Good Packed by plastic wrapo on Iron Frame, Suitable for land transporation and sea shipping.
MOQ :
>=1 Pieces
Price :
$2,000.00
Brand Name :
Stord
Delivery Time :
3-4 months
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Liquid Flow Rate :
up to 50m3
Maximum Working Pressure :
10Mpa
Weight :
As per design
Warranty :
2 Years
After-sales Service Provided :
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Applicable Industries :
All industries
Condition :
New
Structure :
Tube Heat Exchanger
Voltage :
220/380v/as per requirement
Dimension(L*W*H) :
As per design
Shell material :
Carbon Steel/SS304/SS316
Gaskets Material :
Silicone/FKM/PTFE
Tube material :
Carbon steel /Stainless steel/Copper Heating Coil
Tube diameter :
17-325mm
Application :
Heat Transfer/cooling
Length :
As per design
Port :
Shanghai
Description

SS304 SS316 Poultry Waste Rendering Plant / Surface Evaporative Condenser

Product Description

Tube heat exchanger is the feature product in our company, of which the structure design, manufacturing and application are unique. Spiral tube type, arc tube and baffle plate type tubular exchanger are independent R&D products in the company, featuring advanced technology in the world, widely used in industries particularly in petrifaction, electricity and metallurgy.


Heat exchanger, also called heat transfer machine, is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.

The type of heat exchanger that our company can provides: Spiral-plate heat exchanger, corrugated tube heat exchanger, threaded pipe heat exchanger, plate heat exchanger, spiral baffle plate heat exchanger, double-tube plate heat exchanger, fin tubular heat exchanger, float-head heat exchanger, U-tube heat exchanger, stacked heat exchanger, and decompose type heat exchanger etc.

Heat exchange area and pressure can be customized according to customers' requirements. The tube heat exchangers which include U type, float-head type, corrugated tube type.

Main Features

1) Material: stainless steel and/or carbon steel, manganese steel, copper and titanium etc.

2) Heat exchanger area: 1 - 500sqm.

3) Shape: fixed pipe plate, floating head, U-type pipe.

4) Structure: single channel, double channel and multi-channel.

5) Used for evaporating, heating, condensing, cooling process.

6) Various specifications available according to customer's requirements.

Techanical Parameter
Main technical parameters of our tube heat exchanger
Maximun design pressure no more than 10 Mpa
Maximum design temp 850"C
Maximum shell diameter 4600mm
Maximum area of heat exchanger for single facility 6000mF
Tube specification 19~325mm
Tube length 1000~16000mm
Material Carbon steel, stainless steel 304, 316 L, 2205, 904 L; titanium,copper, nickel and hastelloy

Detail

Machine Parts

Channel

Good quality and well welded.

Machine Parts

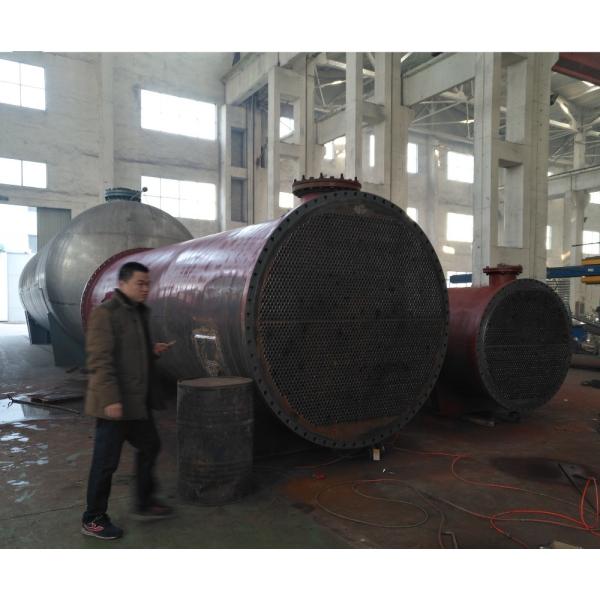

Heating tube and tube sheet

There are multiple specifications and length of tube to choose from.

Machine Parts

Flange(Stainless steel)

Customized, good quality and well welded .

Machine Parts

Hydro test or pneumatic test will be carried out for each pressure vessel, and then issue test report.
