Specifications
Brand Name :
RATTM MOTOR
Model Number :
FDF20
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD1014-2740/unit
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
300units/Month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case 70*43*42cm
Laser power :
20W/30W/50W/60W Raycus /MAX/JPT (optional)
Frequency of pulse :
RAYCUS/MAX is 20-100 KHz JPT LP is 1-600KHZ JPT M7 is 1-4000KHZ
Minimum Line Width :
0.01 mm
Marking Content :
Text, pattern, date, bar code, etc
Unit Power :
less than 0.9 KW
Warranty :
24 months
Laser Wavelength :
RAYCUS/MAX is 10.64 um JPT is 1064 um
Marking Lines :
1-10 lines
Resolution Ratio :
0.1 mm
Graphic Format Supported :
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Net Weight :
40KG
Marking Speed :
less than 4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)
Repeatability Accuracy :
+-0.002 mm
Control Software :
EZCAD ENGLISH Control Software
Power supply requirements :
220 V or 110V
Field Mirror(Work Area) :
Optional
Marking Depth :
less than 0.3 mm
Minimum Character :
0.15 mm
Operation System :
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Dimensions(L*W*H) :
95 x 78 x 55 cm
Gross Weight :
50KGS
Description

Fiber Laser Marking Machine Raycus Max JPT 20W-100W Stainless Steel Jewelry Engraver Metal Cutting Marker Rotary Axis

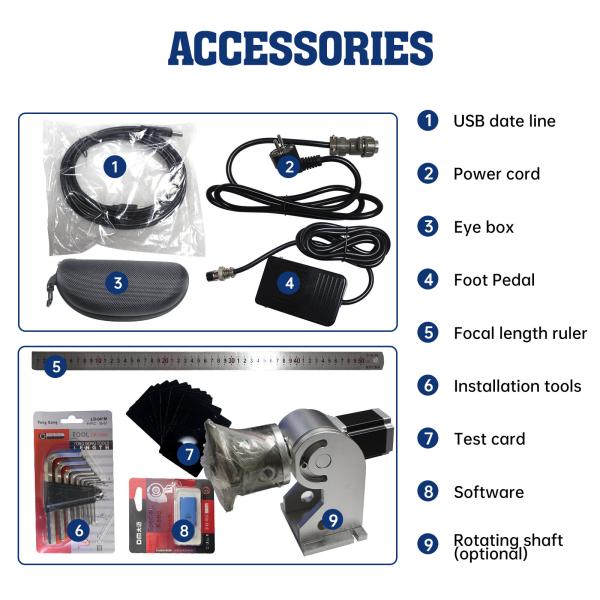

Package include:


1 Set Fiber Laser Marking Machine(Split Type, laser power and brand is optional)

1 Set Rotary Axis(Optional)

2 Piece Filed lens(150*150mm & 70*70mm)

1 Pcs U Disk (USB)

1 Pcs Data Line
1 Software Ezcad2

1 Set Foot Switch

1 Set Assembly Tools

4 pcs Fixed Sheet Metal

1 Set Power Cable

10 Pcs Metal Card

Note: The marking area is optional : 50x50/70x70/110x110/150x150/200x200/220x220/300x300mm,

we ship 150x150mm lens as default, buyer can also choose other size after placing the order,)


Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W

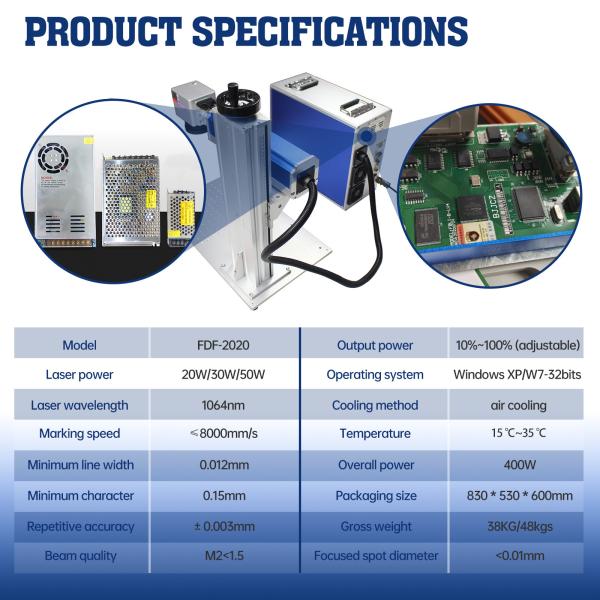

Technical Parameter

Model
Laser power 20W/30W/50W/60W Raycus /MAX/JPT (optional)
Field Mirror(Work Area) 150*150mm( 50*50mm / 70*70mm / 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm
Optional. Support extra purchase.)
Cooling Mode Air Cooling
Laser Wavelength

RAYCUS/MAX is 10.64 um
JPT is 1064 um
Frequency of pulse

RAYCUS/MAX is 20-100 KHz
JPT LP is 1-600KHZ
JPT M7 is 1-4000KHZ
Marking Depth ≤0.3 mm
Marking Speed

≤4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)
Marking Lines 1-10 lines
Minimum Line Width 0.01 mm
Minimum Character 0.15 mm
Repeatability Accuracy ±0.002 mm
Resolution Ratio 0.1 mm
Marking Content Text, pattern, date, bar code, etc
Operation System Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software EZCAD ENGLISH Control Software
Graphic Format Supported BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power ≤0.9 KW
Operation Temperature 5°C-40°C
Relative Moisture ≤ 90%, no fog

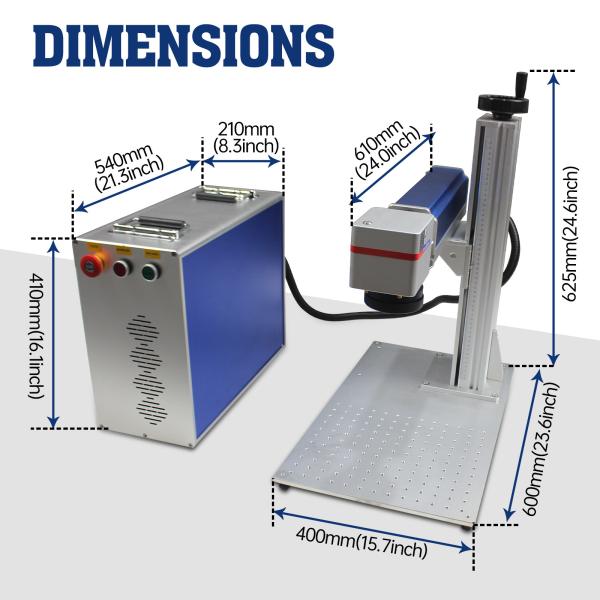

Dimensions(L*W*H) 95 x 78 x 55 cm
Power supply requirements 220 V or 110V
Weight 40KG
Warranty 24 months

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

2: Machine configuration:

A;Fiber Laser brand: Raycus/MAX/JPT

B; SINO-GALVO RC1001 galvanometer with Red dotsassistant focusing align.

C; Taiwan Meanwell (MW) power supply,

D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.

E:Rotary axis (Optional)

3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.

Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W
Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W
Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W
Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100WStainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W

Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W

Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W
Stainless Steel Fiber Laser Marking Machine Raycus Max JPT Rotary Axis 20W-100W
Factory Display:
