Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling
Specifications
Brand Name :
RATTM MOTOR
Model Number :
1.5kw Water Cooled Spindle & VFD
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD223-266/Set
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
500 sets / Month
Delivery Time :
3-8 work days
Packaging Details :
Carton
Product Category :
Spindle Motor kit
Inverter :
1.5KW HY Inverter 220V
Operating Speed :
24000rpm
Water Pump :
75W
Bearing :
4pcs bearing (2x7002C +2x7002C)
Collet :
1 set ER11 collets(11Pcs)
Spindle motor :
1.5KW ER11 Water Spindle
Spindle Size :
80x188mm
Description

Water Cooling Spindle Motor Kit 1.5kw 1500w Round Spindle 24000RPM + VFD Inverter With RS485 + ER11 For CNC Milling

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

Package include:

1 x 1.5KW ER11 Water-cooled spindle motor(220V,400Hz,24000rpm)

1 x1.5KWInverter VFD

1 x 80mm cast aluminium bracketclamp

1 x 75mm Water pump

6M Water pipes

1set ER11 collet (1~7mm)13Pcs

English manual for the inverter will send to your email.

1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND

Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling

Specification:

Material:Stainless Steel

Size:Φ80x188mm

Power:1.5Kw

Voltage:220VAC

Current:5A

Frequency:0-400Hz

Speed:10-24000rpm

Cooling:Water-cooling

Accuracy:0.01

Runout off:Less than 0.02mm

Bearing Lubrication:Grease

Collet size:ER11

Bearings:3 bearings (C7002x3),P4 class

Weight:4.6kg

Power supply interface:Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC industry

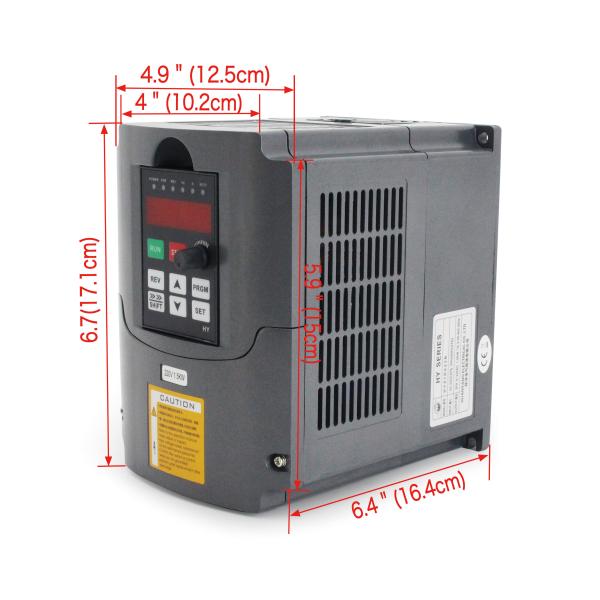

2. 1.5kw Inverter VFD

Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling

ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various
control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

Tech parameters:
1) Input Voltage: 220V(+/-15%)

2) Output Voltage:220V(+/-15%)

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

Specification

Series HY inverters
Control Mode SPWM
Input Power 380V class:380V(+/-15%);220V class:220V(+/-15%)
5-Digits Display & Status Indicator Lamp Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
Communication Control RS-485
Working Temperature -10~40 Celsius Degrees
Humidity 0-95% Relative Humidity(without dew)
Vibration Below 0.5G
Frequency Control Range 0.1~2500.0Hz
Accuracy Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees)
Setting Resolution Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency
Output Resolution 0.1Hz
Operator Setting Method Press directly keys to set.
Analog Setting Method External Voltage 0-5V,0-10V,4-20mA,0-20mA.
Other Functions Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.
General Control Ramp Control Selectable 4-speed steps ramp-up and -down time (0.1-6500s).
V/FCurve Set V/F curve at will.
Torque Control Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.
Multi-Inputs 6
multi-function input terminals for 8speed steps control, program
operation, switching of 4-speed Ramp, UP/DOWN function, counter,
external emergency stop and other functions.
Multi-Outputs 5
multi-output for displaying of running, zero speed, counter, external
abnormity, program operation and other information and warnings.
Other Functions Auto
Voltage Regulation(AVR), Decelerating Stop or Coasting Stop, DC
Braking, Auto Reset and Restart, Frequency Track, PLC Program Control,
Traverse Control, Drawing Control,Auto Energy Saving, Carrier Adjustable
(Up to 20KHz), etc.
Protection Functions Overload Protection

Electronic relay protection motor drive

Drive(for constant torque 150% per min. for the kinds of fan 120% per min.)
FuseProtection When the fuse breaks, the motor will stop.
Over-voltage

220V class:DC Voltage >400V

380V class:DC Voltage >800V
Under-voltage

220V class:DC Voltage <200V

380V class:DC Voltage <400V
Restart After Instant Stop Restart with Frequency Track after Instant Stop
Stall Protection Stall protection in ramp operation
Output Short Circuit Electrical circuit protection
Other Functions Fin
over-heat protection, restriction of reverse running, direct start
after power on, fault reset, parameter lock PID, one-drive-more, etc.

Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling

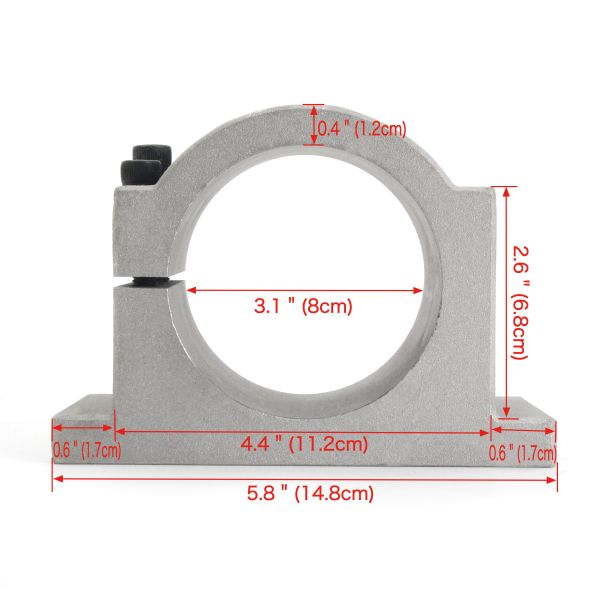

3.80mm cast aluminium bracket

Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling

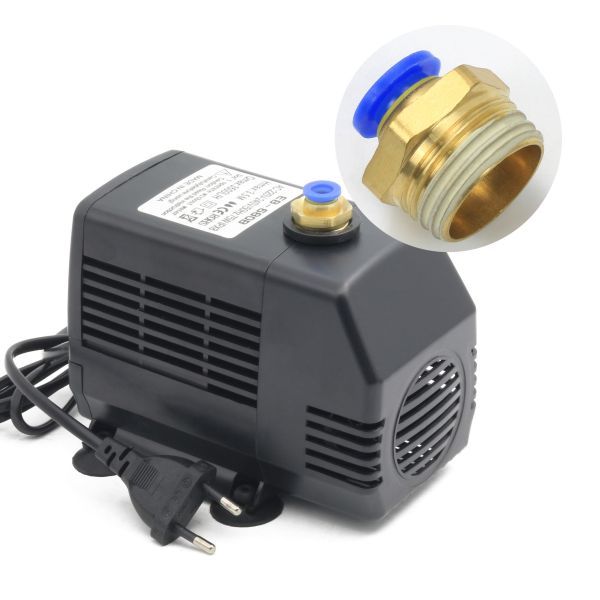

4. 75W CNC spindle motor water pump 3.2m 220VAC

Water Cooled Spindle Kit 1.5kw 24000RPM VFD Inverter RS485 ER11 For CNC Milling

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too
