CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump
Specifications
Brand Name :
RATTM MOTOR
Model Number :
2.2kw Water Cooled Spindle & VFD
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD242-330/Set
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
500 sets / Month
Delivery Time :
3-8 work days
Packaging Details :
Carton
Product Category :
Spindle Motor kit
Inverter :
2.2KW Huanyang Inverter 220V
Size :
80x213mm
Application :
CNC Milling Engraving machine,Milling
Clmap :
80mm Clamp
Phase :
3
Collet,Voltage :
ER20, 220V
Operating Speed :
24000rpm
Description

2.2kw Water Cooling Spindle Motor Kit 24000RPM Round Spindle + VFD Inverter + Water Pump + 80mm Mount For CNC

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

Package include:

1 x 2.2KW ER20 water-cooled spindle motor 220V

1 x 2.2KW Inverter 220V

1 x 80mm spindle bracket

1 x 75mm Water pump

1 x 5M water pipes

1 Set of ER20 collet(14pcs)

The manual for the inverter will send via email.

1. 2.2KW ER20 water-cooled spindle motor

CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water PumpCNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water PumpCNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump

Specification:

Material:Stainless Steel

Size:Φ 80x213mm(Middle body diameter:80mmxLength:213mm)

Power:2.2Kw

Voltage:220VAC

Current:8A

Frequency:0-400Hz

Speed:10-24000rpm

Cooling:Water-cooling

Precision tapered bore:0.01mm

Runout off:Less than 0.02mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:3 bearings(C7005x2 + C7002x1),P4 class

Net Weight:5.1kg

Power supply interface:Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC industry



II. 2.2KW 220V Variable Frequency Drive VFD Inverter

ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various
control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

Tech parameters:
1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 220V(+/-15%)

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump

Specification

Series HY inverters
Control Mode SPWM
Input Power 380V class:380V(+/-15%);220V class:220V(+/-15%)
5-Digits Display & Status Indicator Lamp Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
Communication Control RS-485
Working Temperature -10~40 Celsius Degrees
Humidity 0-95% Relative Humidity(without dew)
Vibration Below 0.5G
Frequency Control Range 0.1~2500.0Hz
Accuracy Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees)
Setting Resolution Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency
Output Resolution 0.1Hz
Operator Setting Method Press directly keys to set.
Analog Setting Method External Voltage 0-5V,0-10V,4-20mA,0-20mA.
Other Functions Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.
General Control Ramp Control Selectable 4-speed steps ramp-up and -down time (0.1-6500s).
V/FCurve Set V/F curve at will.
Torque Control Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.
Multi-Inputs 6
multi-function input terminals for 8speed steps control, program
operation, switching of 4-speed Ramp, UP/DOWN function, counter,
external emergency stop and other functions.
Multi-Outputs 5
multi-output for displaying of running, zero speed, counter, external
abnormity, program operation and other information and warnings.
Other Functions Auto
Voltage Regulation(AVR), Decelerating Stop or Coasting Stop, DC
Braking, Auto Reset and Restart, Frequency Track, PLC Program Control,
Traverse Control, Drawing Control,Auto Energy Saving, Carrier Adjustable
(Up to 20KHz), etc.
Protection Functions Overload Protection

Electronic relay protection motor drive

Drive(for constant torque 150% per min. for the kinds of fan 120% per min.)
FuseProtection When the fuse breaks, the motor will stop.
Over-voltage

220V class:DC Voltage >400V

380V class:DC Voltage >800V
Under-voltage

220V class:DC Voltage <200V

380V class:DC Voltage <400V
Restart After Instant Stop Restart with Frequency Track after Instant Stop
Stall Protection Stall protection in ramp operation
Output Short Circuit Electrical circuit protection
Other Functions Fin
over-heat protection, restriction of reverse running, direct start
after power on, fault reset, parameter lock PID, one-drive-more, etc.

CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump

CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump

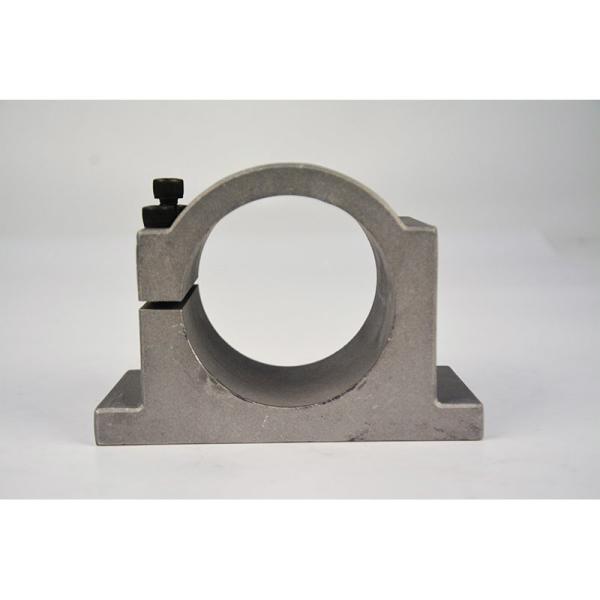

3.80mm cast aluminium bracket

CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump

4. 75W CNC spindle motor water pump 3.2m 220VAC

CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump

CNC Water Cooling VFD Spindle Kit 2.2kw 24000RPM With Water Pump

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

5.1 Set (1-13mm)14Pcs ER20 Collets
