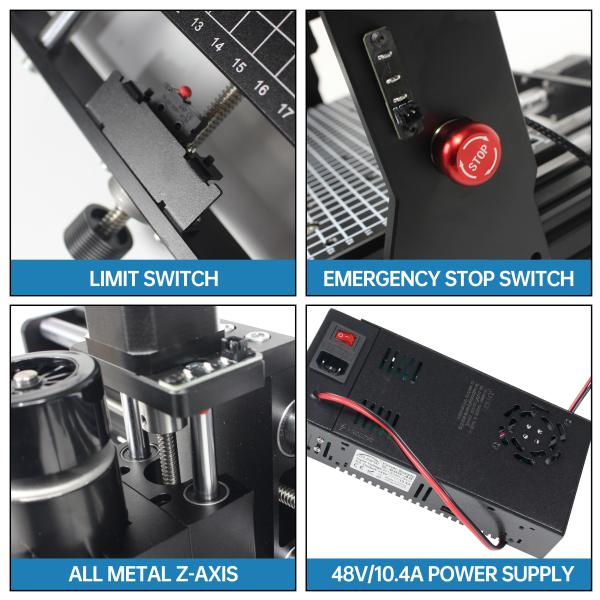

Add limit switches

• Add the function of limit switches,optimized the limit port and the port connected to the device,making wiring and operation easier.
• After installing the limit switch, when the axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.

Add emergency stop switch

• Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.

Add Z Axis probe

• The tool setting device is mainly composed of a tool setting block and a feeler gauge to determine the relative position of the clamp to the cutter.
• High-quality materials,stable and durable,long service life.
• High precision,accurate tool setting and high accuracy of output signal position.
• The bottom is insulated,waterproof and oil resistant,and has strong durability when used.
• Alligator clips are smooth and flat,clamped on the spindle cutter head,and the clamping force is read well.
• Suitable for processing wood, acrylic, plastic, aluminum, steel and other materials

• Cutting 5-12mm MDF :(Wooden Class) ; Feed rate: 300mm/min;Cutting rate: 100mm/min
• Cutting the 2-3mm Acrylic: (Acrylic Type); Feed rate: 200mm/min;Cutting rate: 80mm/min
• Cutting 1-5mm Aluminum Plate: (Metal Type) ; Feed rate: 250mm/min;Cutting rate: 100mm/min

More applications

• If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.

GRBL software

• Our parcel include a 2G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
• File formats supported by the software: *.nc, *.ncc, *.ngc, *.tap, *.cnc.
• Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
