We have 1.5KW air/water cooled spindle motor 80mm dia with inverter kit in
our EU warehouse, if you need, you can contact us to order.

Product technical parameters:

1) Machine size: 750 × six hundred and ten × 390mm (excluding couplings and motors)

2) 3-axis effective travel: X330mm, removing the dust cover can achieve 400mm, Y580mm, Z70mm, and removing the dust cover can achieve 95mm for the Z-axis;

3) Workbench size: 735x480 Slot width: 8.5mm

4) Maximum workpiece thickness: ≤ 100mm

5) Transmission device: Y-axis=2005 screw HGH15 square rail; X-axis=1605 screw HGH15 square rail; Z-axis=1605 screw HGH15 square rail. The shafts are all equipped with brand new SFU2005&SFU1605 ball screws and high-quality couplings.

6) Rack material: 6061-T5 aluminum alloy, high strength, precision machined by CNC machining center, all surfaces are precision machined by CNC, without any surface treatment, resulting in higher accuracy.

7) Track type: chrome plated shaft+linear bearing (surface hardened 61HRC)

8) Repetitive positioning accuracy: 0.05mm

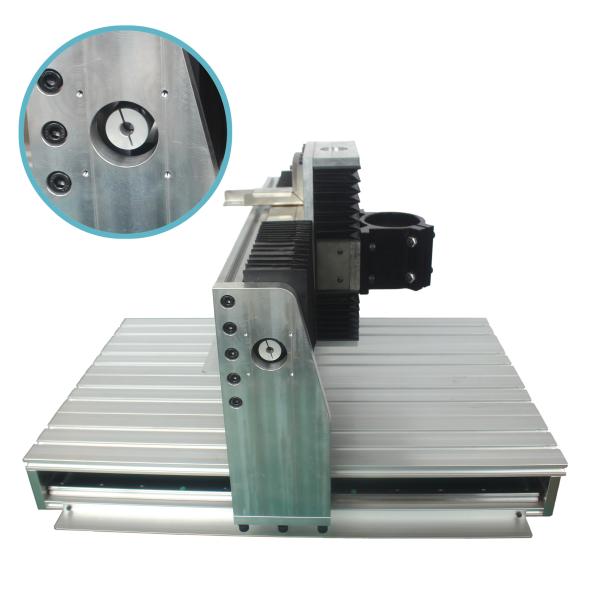

9) Spindle fixture diameter: 65mm and 80mm can be interchanged. (Customer installation universal fixture required to achieve) Installation hole position 117.5x46mm M8

10) Applicable motor: 57 stepper motor 3A

11) Packaging size: 680x230x460mm&680x830x180mm

12) Machine weight: 37 kilograms (including packaging)

Features:

1) Easy operation and installation.

2) Made of aluminum alloy frame material, it is more stable and sturdy.

3) X-axis, Y-axis, and Z-axis engraving make carving more precise and three-dimensional.

4) More precise control of engraving

5) Carving almost anything on almost any surface

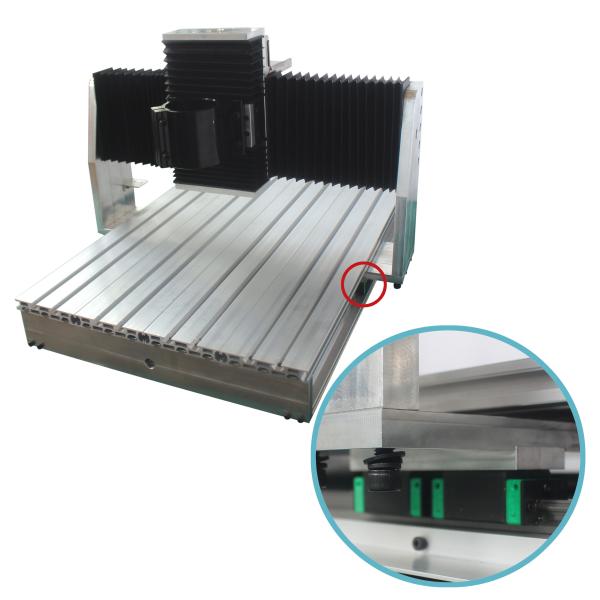

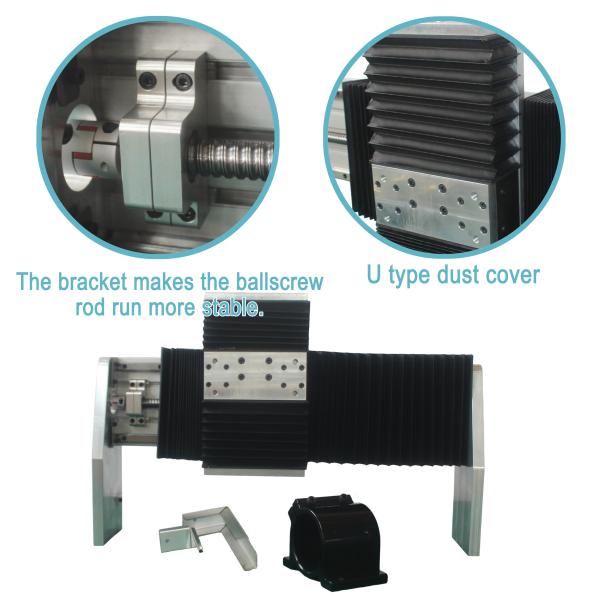

6) The cover plate reduces contamination of the screw and shaft.

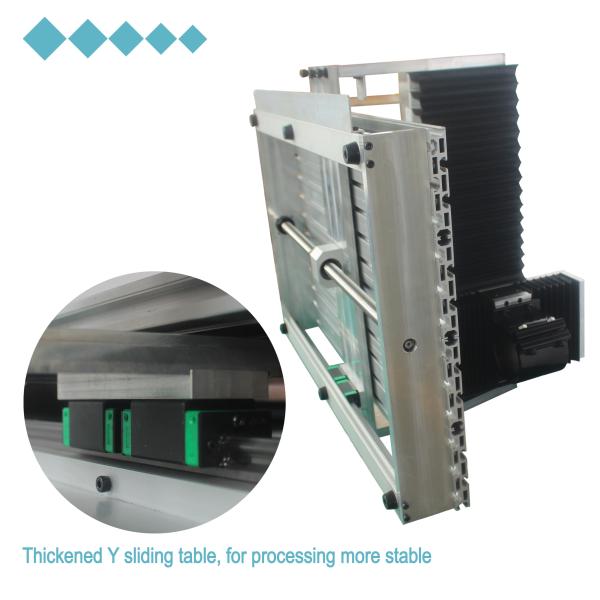

7) Strengthen and thicken the body to ensure safer transportation and longer service life.

8) The chrome plated shaft is not easily deformed and is suitable for long-term use.

9) Elastic couplings can be used for high torque transmission.

10) This project has been equipped with new SFU2005&SFU1605 ball screws. Anti black light, high accuracy, and long service life.

11) The spindle fixture can be interchanged with 65mm or 80mm. (Customer installation universal fixture required to achieve) Installation hole position 117.5x46mm M8

6040 CNC Router machine frame install step:

Main application:

Engrave
for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone
board(ABS)and etc nonmetal,also can engrave on
gold,silver,copper,aluminium,Pb etc soft metal surface working,but not
milling working.
