Specifications
Brand Name :
RATTM MOTOR
Model Number :
4540 CNC Engraving Machine
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD628-879/Set
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
500 sets / Month
Delivery Time :
3-8 work days
Packaging Details :
Carton
Product Category :
CNC Engraving Machine
Engraving Range :
450 x 400 x 90mm(17.7 x15.7 x 3.5 inch)
Power supply :
48V 10.4A
Stepping motor :
57 x 57 mm、1.89N.m
Power of spindle motor :
500W 11000RPM
Limit Switches :
Included X,Y, Z limit switches (both ends)
Software :
Grblcontrol (Candle) /Other GRBL Compatible Software
System :
Windows XP/7/8/10/11,Mac OS
Description

500W 3 Axis 4540 Plus CNC Engraving Machine Laser Milling Cutter Router For Woodworking Metal Square Linear

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

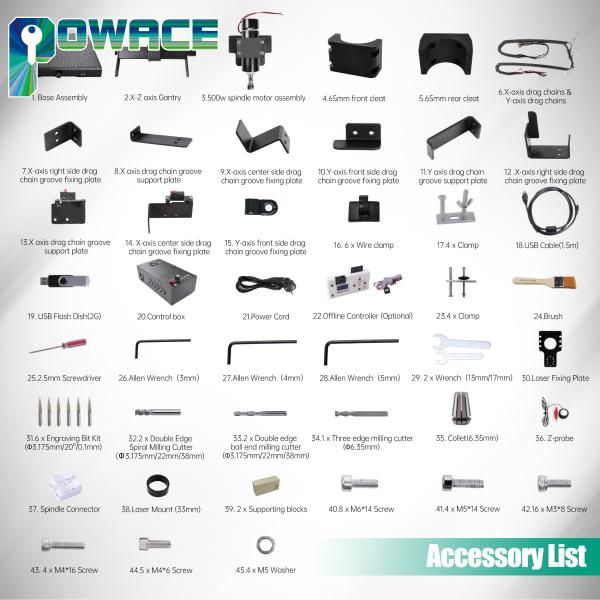

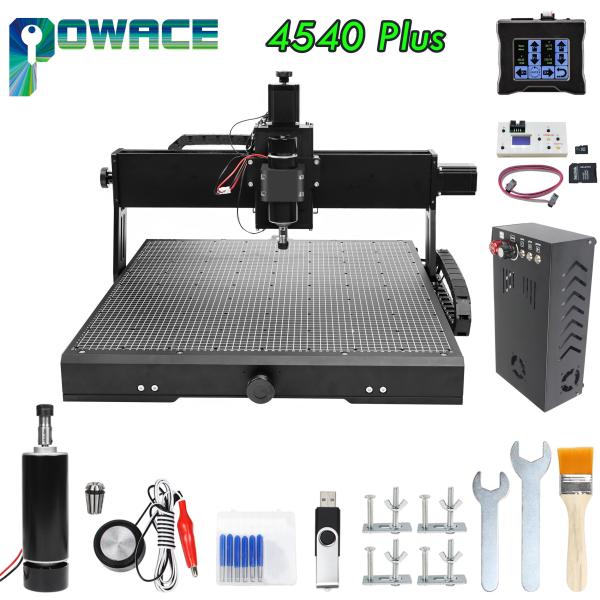

Package include:

3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear


Laser and offline controller are based on ur choose.

Note:

This machine is NOT preassembled. You will receive all the parts in the package and you need to assemble it yourself.

Product description:

Specifications :

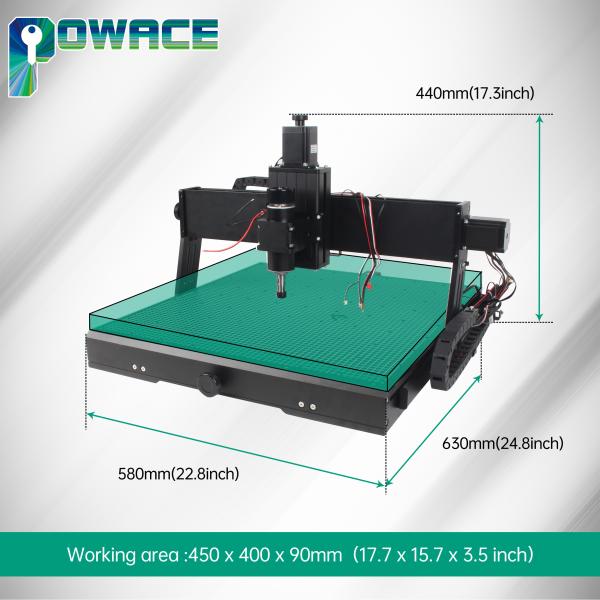

Overall size :
730x 710 x 440mm(28.7 x 27.9 x 17.3 inch)

Working area :
450 x 400 x 90mm(17.7 x15.7 x 3.5 inch)

Power supply :
48V 10.4A

Stepping motor :
57 x 57 mm,1.89N.m

Limit switch :
X,Y,Z (both ends)

Precision :
0.1mm

Power of spindle motor :
500W

Speed of spindle motor :
11000rpm

Offline controller :
Yes (not included,optional)

Software :
Grblcontrol (Candle) /Other GRBL

Compatible Software
System :
Windows XP/7/8/10/11,Mac OS

Support Add-ons :
Laser Module (not included)

Weight :
27.6kg (60.85pounds)

3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear

3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear

3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear

GRBL controller Function:

1.
Manually control: manually adjust X, Y, Z axis location as engraving
starting point, manually open or close spindle, manully open or close
cooling fan

2.
File engraving: after off-line controller save file, it can connect the
GRBL control board and process engraving, no need to connect PC
computer

3.
Save file: after the off-line controller connect PC, it will be
recognized as USB, large capacity storage device, can access engraving
file directly.

3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear

3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear3 Axis 4540 Plus CNC Engraving Machine 500W For Woodworking Metal Square Linear


Q1: Why can't the COM port number be found when the machine is connected to
the software?

1. Please check if the driver program is installed successfully? You can delete the old driver
program, and then download and install the latest driver program from the following link:
http://www.wch-ic.com/search?t=al&g=CH340.
2. Check the USB port to make sure it is successfully connected.
3. Connect to other USB ports on the computer.
Q2: When the software is connected, the status line shows "port opened", what
should we do?
1. Check whether the emergency stop switch is working, if it is, you need to rotate and loosen the
emergency stop switch, and then click the "Unlock" icon in the toolbar to unlock it.
2. Check limit switches. The machine is also locked if any axis touches the limit switch. in this case,
you need to click the "Reset" icon in the toolbar first, and then click the "Unlock" icon to unlock.
Q3: Why did you successfully connect the machine with the software, but the
machine still cannot move?
1. Check whether the power switch on the control board is turned on, please make sure the
machine is running under power on.
2. Every time you turn on the machine, please click the "unlock" icon first, and then start
working.
3. Check the emergency stop switch and limit switch according to the steps of Q2.
Q4: When should we update the control board firmware for the 4540PLUS?
1. in the case of Q2, but you cannot solve it according to the Q2 step, you need to update the
firmware of the control board.
2. in the case of Q3, but you cannot solve it according to the Q3 step, you need to update the
firmware of the control board.
