Specifications
Brand Name :
RATTM MOTOR
Model Number :
3018 PRO
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD108-135/Set
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
500 sets / Month
Delivery Time :
3-8 work days
Packaging Details :
Carton
Product Category :
CNC Engraving Machine
Working area :
300x180x45mm (11.8" x 7.1" x 1.8")
Frame size :
420x350x270mm (16.53" x13.78" x 10.63")
Spindle Motor :
775 DC spindle motor 100W 10000RPM
Step motor :
nema17 stepper motor 1.3A,0.3N.m
Material :
Aluminum alloy
Control system :
grbl control (candle)
System support :
Windows XP SP3,Win 7,Win 8, Win 10 (32/64 can be)
Description

3 Axis Desktop CNC Engraving Machine 3018 Router Kit GRBL Control Plastic Acrylic PCB PVC Wood Carving Milling

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

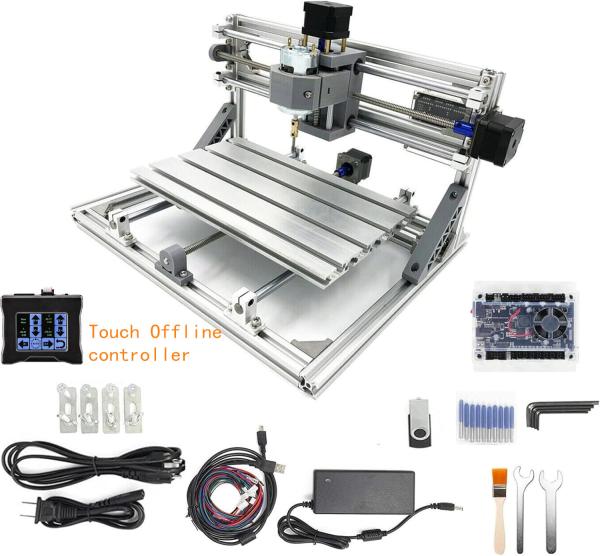

Package include:

  • 1Set 3018 CNC Router Engraving Milling Machine Kit
  • 1x GRBL 1.1f Control Board
  • 1x 775 spindle motor
  • 1x ER11 Collet 3.175mm
  • 1x 24V DC 5A Power Supply
  • 10 x Tip 0.1 mm, 20° φ3.175 mm Drill Bits
  • 4x plate clamps
  • 1Set Allen Wrench
  • 2x ER Wrench
  • 1x Brush
  • 1x Spindle motor harness 60cm
  • 3x Stepper motor harness 60cm
  • 1x 4G USB flash drive include the english user manual & GRBL software

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

GRBL controller board

  • Connection: USB (USB-CH340)
  • Software: GRBL controller, UniversalGcodeSender
  • Input voltage: 24VDC
  • Master chip: atmel 328P (arduino nano)
  • Spindle drive chip: MOSFET (recommendation 24V, current : within 10A
  • Spindle PWM speed: Support
  • Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)
  • Power Interface: 5.5-2.5mm DC interface
  • Support 3-pins module: support 0.5W-20W module

775 spindle motor

  • Spindle parameters: 775 spindle motor (12-36V) 24V:10000r/min
  • Drill bits: 10pcs tip 0.1mm ,20 degree,diameter3.175mm.
  • Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.
  • Spindle PWM speed: Support;power 0-100% adjustable
  • Motor shaft diameter: 15mm; Motor diameter

Plate clamps

  • Drill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm )
  • Machinable material: Wood, plastic, PCB, PVC, carbon fiber, acrylic, density board etc
Dimensions 40x33x24cm(16.53" x 13.78" x 10.63”)
Maximum stroke 30x18x4.5cm (11.8" x 7.1" x 1.8”)
Processing thickness 4.5cm (1.77")
Stepper motor Nema17 stepper motor 34MM,1.33A,0.25N.M
Spindle 775 DC spindle motor 100W 10000RPM
Material Aluminum alloy
Control system grbl control (candle)
Port USB interface
System support Windows XP SP3,Win 7,Win 8, Win 10 (32/64 can be)
Power supply DC 24V 5.6A power adapter (input voltage 110-240VAC)
Processing accuracy About 0.2mm
Supporting files G-code (.nc/.txt/.tape/.gcode...)
3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

  • Support oftware: GRBL controller,Candle, UniversalGcodeSender
  • Connection: USB (USB-CH340)
  • Master chip: atmel 328P (arduino nano)
  • Spindle drive chip: MOSFET (recommendation 24V, current : within 10A
  • Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)
  • Power Interface: 5.5-2.5mm DC interface
  • Support 3-pins module: support 0.5W-20W module
  • Input voltage: 24VDC
  • The spindle supports 0-100% adjustable PWM power.
  • Support limit switch, tool setting, steering gear, cooling fan and other functions.
  • Support PWM / TTL signal control, power 0-100% adjustable!
  • Increase the power button switch
  • Add the fan port to force heat dissipation

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

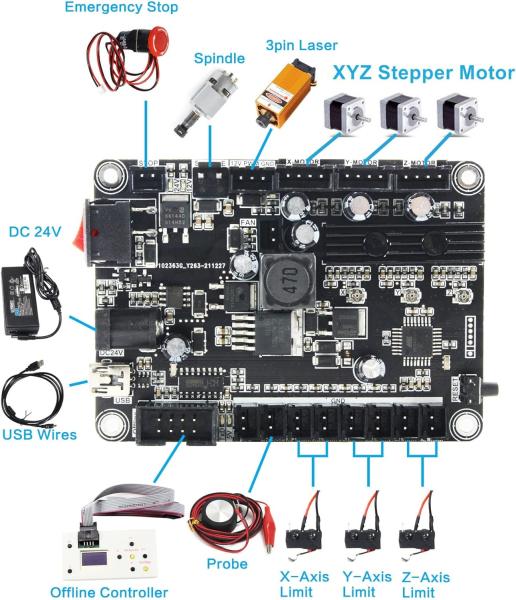

  1. Add emergency stop button port, probe port and XYZ limit port.
  2. Add the outer casing: protect control board in transit,to avoid short circuit problem during use;
  3. Add the power button switch;
  4. Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy;
  5. Add the fan port to force heat dissipation;
  6. Add offline recognition,can insert offline modules and computers at the same time.Offline will automatically identify if there is computer control.
  7. Enhanced spindle drive,can support 20000rpm spindle.support more powerful spindle.
  8. Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong;
  9. The spindle drive increases the optocoupler isolation, which makes the control board generate less heat, and the spindle speed adjustment is more linear and safer.

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

Compared with the old version

  1. Add the function of X/Y/Z axis limit switches,optimized the XYZ limit port and the port connected to the device,making wiring and operation easier.After installing the limit switch, when the XYZ axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.
  2. Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.
  3. Add the power button switch and move the power switch button from the bottom to the side,simple operation,more safety in the process of using the machine.

Support two engraving methods

  • The control board support two engraving methods,our package comes with a spindle motor but without the module in the picture above.

Q&A

Q: What materials can the milling cutter generally engrave or cut?

A: Wood, acrylic (acrylic), pcb, pvb, soft metal, iron, glass, stone etc.

Q: What thickness of wood or acrylic can generally be cut by module?

A: 3-5mm wood board (acrylic), speed setting 100, power setting 1000;

Multiple cuts can cut 12mm wooden boards by spindle.

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

3018 CNC Router Machine GRBL for Plastic Acrylic PCB PVC Wood Carving Milling

Applications

  • CNC 3018 Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018 PRO cnc machine is very easy to install,stable structure.
  • Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.

More applications

  • If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.

GRBL software

  • Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
  • File formats supported by the software: *.nc, *.ncc, *.ngc, *.tap, *.cnc.
  • Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
