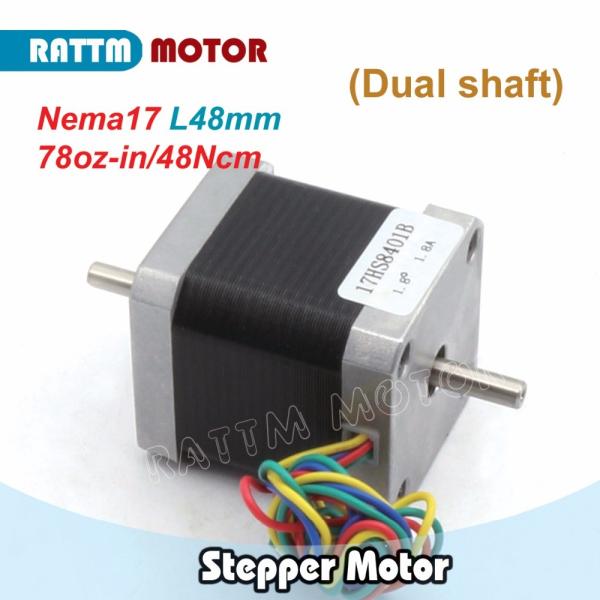

Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B
Specifications
Brand Name :
RATTM MOTOR
Model Number :
Single Shaft Worm Gear Motor
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$9.8-10.3
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100Pieces/day
Delivery Time :
3-5 work days
Packaging Details :
carton case, 42*42*48
Step angle: :
1.8° 5%
Current: :
1.8A
Phase No. : :
2
Temperature rise :
80deg Max(rated current,2 phase on)
Insultion Strength :
500VAC for one minute
Insulation resistance: :
100M? Min,500VDC
Description

Nema 17 CNC stepper motor 78 Oz-in (Dual shaft) 48mm 1.8A 17HS8401B

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------?20deg ~+50deg

Insulation resistance:100M? Min,500VDC

Insultion Strength--------500VAC for one minute

Datasheet(17HS8401B,1.8A,78 oz-in or 4.8kg.cm holding torque,front shaft is 5mm diameter shaft,18mm lenth; back shaft is 5mm diameter and 15mm length)

Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B

Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B

Drawing:

Nema 17 CNC Dual Shaft Stepper Motor 78 Oz-In 48mm 1.8A 17HS8401B

Wiring:

Red: A+

Green: A-

Yellow: B+

Blue: B-

Usage or Application

This products are widely used in engraving machine, printer, medical equipment,
embroidery machine, stage lighting, textile automation, printing,
packaging and other industries automation equipment.
