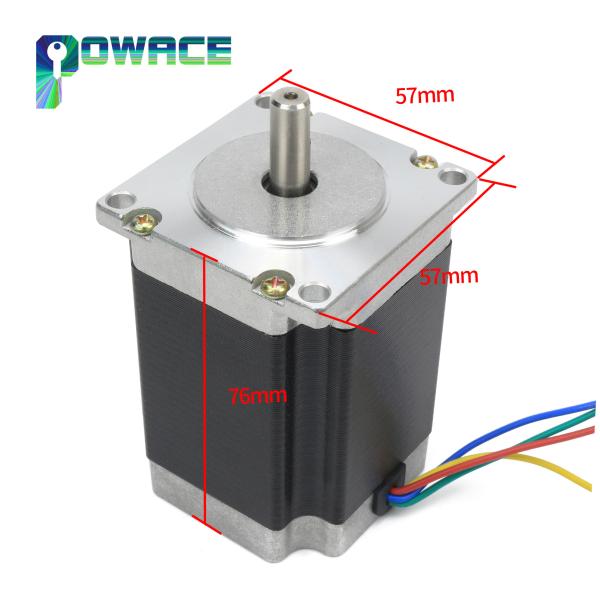

8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router
Specifications
Brand Name :
Rattm Motor
Model Number :
23HS8430
Certification :
CE CCC
Place of Origin :
China
MOQ :
1piece
Price :
$16.6-17.8
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000
Delivery Time :
2-7 work days
Packaging Details :
Independent anti-collision foam+outer box packaging for each product
Shaft Length :
20 mm
Color :
black
Number Of Leads :
4
Phase Inductance :
6.8 mH 20% / Phase
Phase Resistance :
1.60 10% / Phase
Rated Current :
3 A
Ambient Temperature :
-20 to 50 degrees Celsius
Body :
57*57mm
Shaft diameter :
8mm
Step Angel :
1.8°
Motor Length :
76mm
Voltage :
4.8V
Description

8mm Single Daul Shaft Nema23 57 Stepper Motor 76mm 3A 270oz-In 1.8° Hybrid 23HS8430 For CNC Router Milling Machine

  • Stepper motor's red wire connect to driver's A+ port

  • Stepper motor's green wire connect to driver's A- port

  • Stepper motor's yellow wire connect to driver's B+ port

  • Stepper motor's blue wire connect to driver's B- port

General Specification:

8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router

General Specification:

Step angle accuracy:+ - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ---- +50deg

Insulation resistance:100ohm Min,500VDC

Insultion Strength--------500VAC for one minute

Datasheet(23HS8430,8mm diameter shaft,270oz-in or 18kg.cm holding torque)

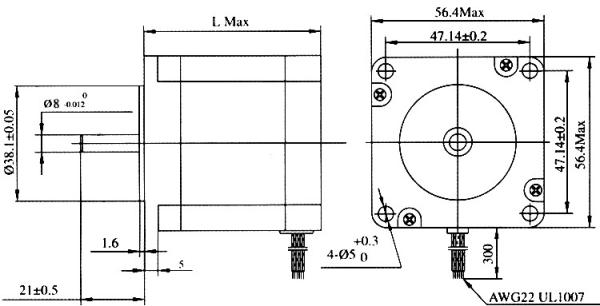

Drawing:

8mm Single Daul Shaft Nema23 Stepper Motor 76mm 3A 23HS8430 For CNC Router

Wiring:

Red: A+

Green: A-

Yellow: B+

Blue: B-

Usage or Application

This products are widely used in engraving machine, printer, medical equipment,
embroidery machine, stage lighting, textile automation, printing,
packaging and other industries automation equipment.
