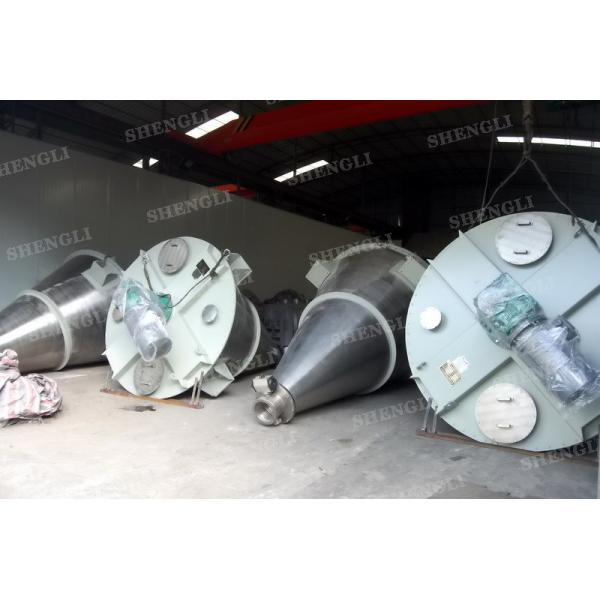

Double Screw Vertical Conical Screw Blender with Non-residual Discharge for Detergent Powder Mixing

official website:www.1985shengli.com

Introduction

Conical mixer is widely used in chemical, dyestuff,battery and rare earth line.

Product features
1. full discharge and no leftover.
2. Gentle mixing no damage to fragile material.
3. Low-energy,more adaptable to chemical&physical reaction.

Working principles
Double screw conical mixer rotated around its axes by right of two internal asymmetric spirals which is installed on the cantilever.

Mean while, the rotational force from the cantilever drive two spiral doing revolution around conical chamber axle wire

Double screw conical mixer has 4 direction forces
1.Two inner asymmetric spiral upgrade materials by rotation
2. Tumbler low-speed rotation makes material circle motion
3. Spiral rotation and revolution make materials absorbed while diffuse to circle direction
4. T wo flow materials upward then down to center which come into being a downward material flow This way can full the bottom gap and form a convective circulation

Data

Configuration

1.Reliable driven unit
The driven unit and power is varied according to different raw material, starting method, and processing.
Double screw conical mixer is equipped with appropriative double output reducer, which combines pinwheel, gear and warm and gear.

2.Excellent discharging unit

Spherical valve or plum-blossom dislocation valve is matched to the double screw conical mixer.

The surface of the valve match the track of the bottom of screw, to reduce the mixing dead zone to the maximum,

and to make the largest discharging area, so as to make sure no leftover.

Spherical valve has excellent sealing effect to powder, liquid and even in the negative pressure state.

Plum-blossom dislocation valve is easy to operate and control the discharging speed

3.Powerful auxiliary components
Equipped with circulation medium of jacket, the double screw conical mixer can realize the temperature control in mixing process.
In the mixer barrel, the part contact with material can coat some antiriot, anti-caking and metal isolation material according to different ingredient.

In some severe wear conditions, the screw surface can be overlaid by some wear proof alloy.
If a small quantity of liquid is required during mixing, spraying or atomizing unit is necessary in order to mix the liquid evenly with the main ingredient.

The liquid-adding system is basically composed by the three parts: pressure source, liquid storage pot and spraying nozzles
