Data sheet

1. Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321;

besides, different material can also be used in combination.

Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer

2. The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor.

Options for gearbox: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.
Motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3. High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.
The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4. Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5. Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.
They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.
The top cover can be designed as fully-opened lid for easy cleaning.

6. Extra function
To realize the technicla of drying, cooling and keeping warm, the mixer can be added a jacket structure out of the tank. Hot water or steam or industrial oil can circulate int the jacket. Liquid filling system can be installed at the top cover, the different material of the atomized spray nozzle can realize the injecting of acid or alkali liquid, or water.

The tank and the agitator can be coated with other material like PE, PTFE, CARBIDE, etc. to realize the resistance of wear-out, acid/alkali, or explosion etc.

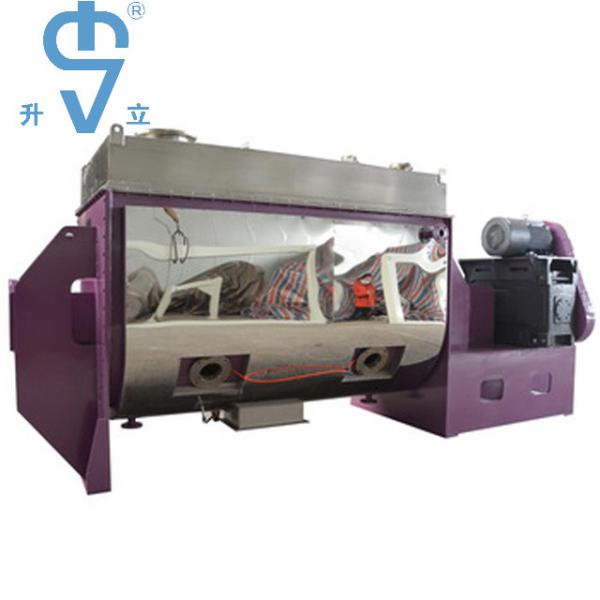

Stainless steel ribbon mixer for food mixer, food additive blender, milk powder mixer easy cleaning CE; spice mixer, flavor mixer, spice blender, coffee mixer
Simple system as dry ingredient mixing machine like:

C1: using crane to hang jumbo bag material and feeding the mixer
C2: mufti-level platform, manual undo the bag, mixing and packing with a bulk bag packer.
C3: simple mixer frame, feed the mixer manually with the help of a folk lift.
C 4: using manual feeding platform, after mixing, screw conveyor send the material to the storage silo, a packer under it.
C5: load the material manually on the ground,use vacuum feed to transfer material into mixer, after mixing, pack with a bulk-bag packer.
C6: multi-stage vacuum feeder, store it after mixing, then packing.
C7: multi-level operation platform, elevator sending to material silo, mixing, storage, and then packing. Tower structure.
C 8: bulket elevator feeding, mixing, storage, and packing.
C9: vacuum feeding, mixing, storage, packing.
C10:Manual feeding, mixing, storage, packing

System is like this:

1. man cut the bag of the raw material or the material has been weighted for one batch usage, and pour into the dust proof dumping funnel which connected with the inlet of the vacuum feeder.

2. the vacuum feeding will suck the material up into the inlet of the mixer

3. the mixer will mix all material for nealy 10mins

4. the discharge valve of the mixer connect with a movable silo by BFM soft nozzle

5. the mixture will fill the bin, and ready for the next packing process

6. one mixer can have several vacuum feeders to increase the feeding speed

7. one mixer can have several movable bins for the different purpose of storage

8. platform is used for add small additives, or do maintenance and cleaning job
