 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
 Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano
Specifications
Brand Name :
HAOFENG
Place of Origin :
CHINA
MOQ :
1 set/part
Payment Terms :
T/T
Delivery Time :
25-50 work days
Packaging Details :
upon request
Supply Ability :
10 sets per month
advantage :
Multiple models to choose from, low investment, energy-saving
Description

The sand mill is a stirred ball mill mainly used for ultra-fine grinding processing of materials.The working principle of the sand mill is that the stirring device makes the grinding balls perform a stirring motion in the grinding tank, thereby generating strong impact force, extrusion force and shear force. These forces act on the materials to crush them to a nanometer or micron-level fineness.

- Features:

High grinding efficiency: The stirring device makes the grinding balls perform a stirring motion in the grinding tank, generating strong impact force, extrusion force and shear force. Compared with ordinary ball mills, it has stronger shear force and impact force, and can achieve nano-scale and micron-scale grinding.

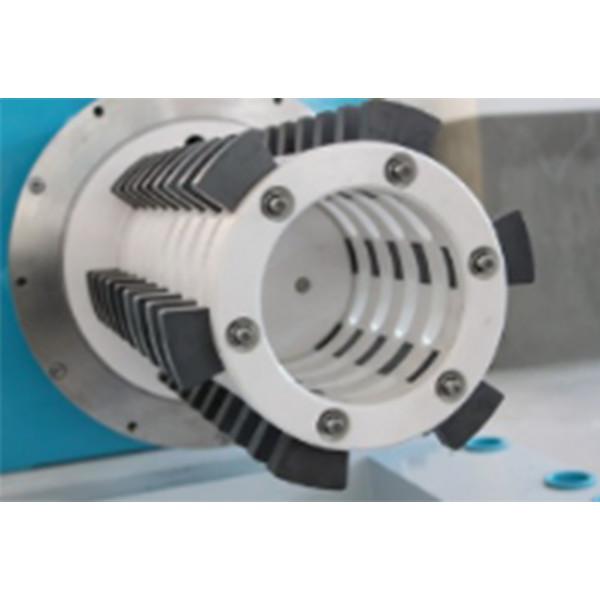

Relatively simple structure: It is mainly composed of a machine body, a grinding cylinder, a sand grinding disc (paddle), grinding media, a filter screen, a feed pump and a discharge pipe.

Wide application range: It is suitable for ultra-fine crushing and processing of various materials such as metallurgy, chemical industry, ceramics and new materials.

model:

model

Effective volume

(L)

Host power

(KW)

Separate motor power(KW)

Process Batch(L)

 media size (mm) weight(kg) External dimensions (mm)
HMLS-1L 4 3-30 0.03-1.0 200 530-470-625
HMLS-2L 2L 7.5 4 5-50 0.03-1.0 500 980-750-1550
HMLS-10L 10L 22 7.5 30-200 0.03-1.0 1800 2200-1100-1500
HMLS-30L 30L 45 11 60-500 0.03-1.0 2100 2300-1200-1700
HMLS-60L 60L 75 18.5 150-1000 0.03-1.0 3600 2600-1400-1900
HMLS-150L 150L 185 30 300-3000L 0.03-1.0 7500 3200-1600-2100

Can be customized according to customer requirements

Can provide long-term technical guidance to customers
