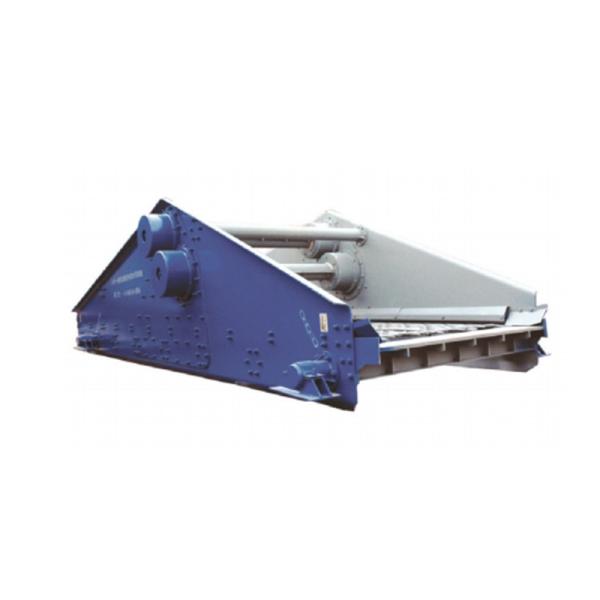

ZK Series Straight Line Vibrating Screen / durable Linear Vibrating Screen
ZK Series Straight Line Vibrating Screen / durable Linear Vibrating Screen
Specifications
Brand Name :
HAOFENG
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5-30 work days
Packaging Details :
upon request
advantage :
Economical and durable
model :
multiple models are available
feature :
Efficient and environmentally friendly
Description

The ZK series linear vibrating screen is an efficient vibrating screen manufactured by our company, which has absorbed advanced technology from around the world. It is widely used in industries such as coal, metallurgy, building materials, power, and light industry.It can perform dry or wet classification or dehydration on medium and fine particle materials.

Technical Data

Model Screen Surfac

Max Feeding Size(mm)

Motor Power(kw)

Capacity(t/h)

Weight(kg)

Deck size(m²)

 Mech(mm) Structure
ZK1022 2.25 0.25~50 <250 3×2 4.5-90 2215
ZK1230 3.6 0.25~50 <250 4×2 7.2-115 2662
ZK1237 4.5 0.25~50 <250 5.5×2 9.0-180 3118
ZK1437 5.25 0.25~50 <250 5.5×2 12.0-250 3388
ZK1445 6.3 0.25~50 <250 7.5×2 12.6-252 3806
ZK1637 6 0.25~50 <250 5.5×2 12.0-240 3552
ZK1645 7.2 0.25~50 <250 7.5×2 16.2-324 4235
ZK1837 6.75 0.25~50 <250 7.5×2 14.4-270 3776
ZK1845 8.1 0.25~50 <250 11×2 16.2-324 4842
ZK1852 9.45 0.25~50 <250 11×2 18.9-378 5900
ZK2045 9 0.25~50 <250 11×2 16.2-324 5969
ZK2052 10.5 0.25~50 <250 11×2 21.0-420 6472
ZK2060 12 0.25~50 <250 15×2 22-470 8074
ZK2445 10.8 0.25~50 <250 15×2 21.6-432 7439
ZK2452 12.6 0.25~50 <250 15×2 25.2-504 8216
ZK2460 14.4 0.25~50 <250 15×2 28.8-576 8522
ZK3045 13.5 0.25~50 <250 15×2 27.0-540 9859
ZK3052 15.75 0.25~50 <250 22×2 31.4-628 9958
ZK3060 18 0.25~50 <250 22×2 36-720 9366
ZK3645 16.2 0.25~50 <250 22×2 37.8-756 12289
ZK3652 18.9 0.25~50 <250 22×2 43.2-846 13409
ZK3660 21.6 0.25~50 <250 22×2 43.2-846 14390
ZK3675 27 0.25~50 Woven,stiped,punched,nubber,polyurethane(PU) <250 30×2 54.0-1080 17100
2ZK1022 2.25 0.25~50 <250 4×2 4.5-90 3018
2ZK1230 3.6 0.25~50 <250 5.5×2 7.2-144 3740
2ZK1237 4.5 0.25~50 <250 7.5×2 9.0-180 4460
2ZK1437 5.25 0.25~50 <250 7.5×2 12.0-250 5042
2ZK1445 6.3 0.25~50 <250 15×2 12.6-252 6883
2ZK1637 6 0.25~50 <250 15×2 12.0-240 6919
2ZK1645 7.32 0.25~50 <250 15×2 14.4-280 8654
2ZK1837 6.75 0.25~50 <250 15×2 14.4-270 7951
2ZK1845 8.1 0.25~50 <250 15×2 16.2-324 8116
2ZK1852 9.45 0.25~50 <250 15×2 18.9-378 9061
2ZK2045 9 0.25~50 <250 15×2 16.2-324 9133
2ZK2052 10.5 0.25~50 <250 22×2 21.0-420 10128
2ZK2060 12 0.25~50 <250 22×2 24.0-480 10875
2ZK2445 10.8 0.25~50 <250 22×2 21.6-432 11008
2ZK2452 12.6 0.25~50 <250 22×2 25.2-504 12757
2ZK2460 14.4 0.25~50 <250 22×2 28.8-576 13560
2ZK3045 13.5 0.25~50 <250 30×2 27.0-540 15472
2ZK3052 15.75 0.25~50 <250 37×2 31.4-628 16942
2ZK3060 18 0.25~50 <250 30×2 36-720 17900
2ZK3645 16.2 0.25~50 <250 45×2 37.8-756 21042
2ZK3652 18.9 0.25~50 <250 45×2 43.2-846 24040
2ZK3660 21.6 0.25~50 <250 45×2 43.2-846 25400

Note: The processing capacity listed in the table is based on dry classification of limestone, which bulk density is 1.6tm'. The listed capacity is only for reference. The actual data need to be fixed by tech department according to worksite situation.
