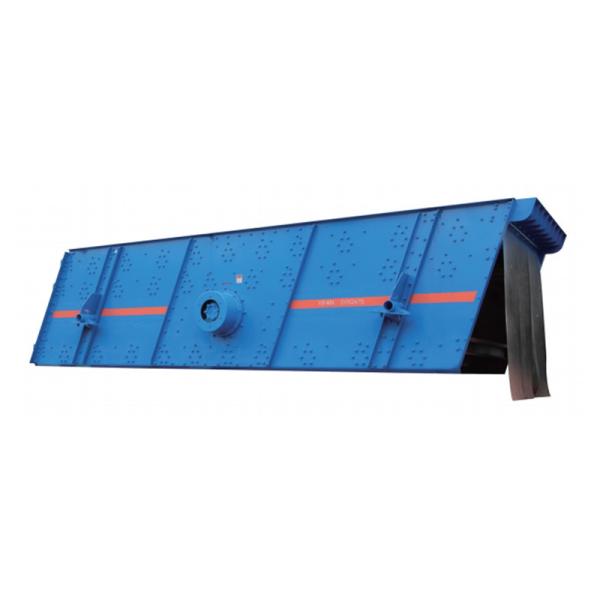

YK Series Inclined Vibrating Screen High Capacity And Durable Vibrating Screen Feeder
YK Series Inclined Vibrating Screen High Capacity And Durable Vibrating Screen Feeder
Specifications
Brand Name :
HAOFENG
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5-30 work days
Packaging Details :
upon request
advantage :
Less investment, simple operation,energy-saving
model :
multiple models are available
feature :
Efficient and environmentally friendly
Description

The YK series vibrating screen is an advanced vibrating screen manufactured by our company by absorbing various advanced technologies, suitable for screening building aggregates such as sand and gravel. It can also be applied to industries such as mineral processing, building materials, and electricity.

High vibrating force with unique eccentric structure.

The beam and case of the screen are connected with high strength bolts without welding.

Adopt tire coupling, soft connection makes operation smooth.
High efficiency, high capacity and durable.

Technical Data

Model Screen Deck

Installation Slope

Deck size(mm)

Vibrating Frequency(r/min)

Double Amplitude
(mm)

Capacity
(th)

Motor Power
(kw)

Transportation Dimensions(LxWxH)(mm)

Weight
(kg)
YK1235 1 15 4.2 970 6-8 20-180 5.5 3790x1847x1010 1845
2YK1235 2 15 4.2 970 6-8 20-180 5.5 4299×1868×1290 2982
3YK1235 3 15 4.2 970 6-8 20-180 7.5 4393×1868×1640 3922
4YK1235 4 15 4.2 970 6-8 20-180 11 4500×1967×2040 4821
YK1545 1 17.5 6.75 970 6-8 25-240 11 5030×2200×1278 3362
2YK1545 2 17.5 6.75 970 6-8 25-240 15 5767×2270×1550 5113
3YK1545 3 17.5 6.75 970 6-8 26-240 15 5874×2270×1885 6251
4YK1545 4 17.5 6.75 970 6-8 25-240 18.5 5994×2270×2220 7519
YK1548 1 17.5 7.2 970 6-8 28-270 11 5330×2228×1278 3418
2YK1548 2 17.5 7.2 970 6-8 28-270 15 6067×2270×1557 6266
3YK1548 3 17.5 7.2 970 6-8 28-270 15 5174×2270×1885 6453
4YK1548 4 17.5 7.2 970 6-8 28-270 18.5 6294×2270×2220 7845
YK1860 1 20 10.8 970 6-8 32-350 15 6536×2560×1478 4572
2YK1860 2 20 10.8 970 6-8 32-350 18.5 6826×2570×1510 5808
3YK1860 3 20 10.8 970 6-8 32-350 18.5 7145×2570×1910 7349
4YK1860 4 20 10.8 970 6-8 32-350 22 7246×2660×2244 8809
YK2160 1 20 12.6 970 6-8 40-720 18.5 6535×2860×1468 4940
2YK2160 2 20 12.6 970 6-8 40-720 22 6700×2870×1560 6438
3YK2160 3 20 12.6 970 6-8 40-720 30 7146×2960×1960 8665
4YK2160 4 20 12.6 970 6-8 40-720 30 7254×2960×2205 9933
YK2460 1 20 14.4 970 6-8 50-750 18.5 6535×3210×1468 5496
2YK2460 2 20 14.4 970 6-8 50-750 30 7058×3310×1760 8090
3YK2460 3 20 14.4 840 7-9 50-750 30 7223×3353×2220 11255
4YK2460 4 20 14.4 840 6-8 50=750 30 7343×3893×2445 13400
YK2475 1 20 18 970 6-8 60-850 22 7995×3300×1552 7004
2YK2475 2 20 18 840 6-8 60-850 30 8863×3353×1804 10685
3YK2475 3 20 18 840 6-8 60-850 37 8854×3353×2220 12727
4YK2475 4 20 18 840 6-8 60-850 45 8878×3384×2520 15822
2YK2775 2 20 20.25 970 6-8 120-900 30 8863×3653×1804 11000
3 YK2775 3 20 20.25 970 6-8 120-900 37 8854×3653×2220 14200
YK3060 1 20 18 840 6-8 70-900 30 6545×3949×1519 9063
2YK3060 2 20 18 840 6-8 70-900 37 7282×3990x1919 12617
3YK3060 3 20 18 840 6-8 70-900 45 7453×4024×2365 15644
4YKD3060 4 20 18 840 6-8 70-900 2×30 7588×4127×2906 22189
YK3075 1 20 22.5 840 6-8 84-1080 37 7945×3949×1519 10871
2YK3075 2 20 22.5 840 6-8 84-1080 45 8884×4030×1938 17263
2YKD3075 2 20 22.5 840 6-8 84-1080 2×30 8837×4133×1981 20194
3YK3075 3 20 22.5 840 6-8 84-1080 55 9053×4030×2365 18713
3YKD3075 3 20 22.5 840 6-8 84-1080 2×30 9006×4127×2406 21717
2YKD3675 2 20 27 800 7-9 149-1620 2×45 8917×4847×1971 2664
3YKD3675 3 20 27 800 7-9 149-1620 2x45 9146×4847×2611 32856

Note: The processing capacity listed in the table is based on dry classification of limestone, which bulk density is 1.6tm". The listed capacity is only for reference. The actual data need to be fixed by tech depatment according to worksite situation.
