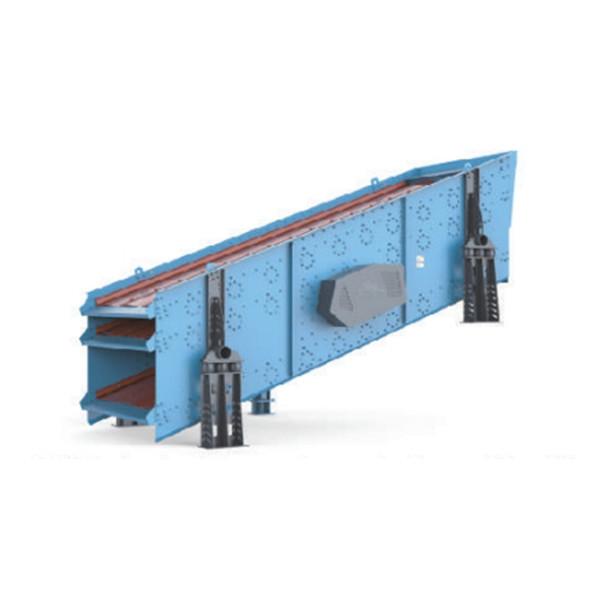

E-YK Series Vibrating Screen And Feeder Low Faiure Rate And Maintenance Free
E-YK Series Vibrating Screen And Feeder Low Faiure Rate And Maintenance Free
Specifications
Brand Name :
HAOFENG
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5-30 work days
Packaging Details :
upon request
advantage :
Less investment, simple operation,energy-saving
model :
multiple models are available
feature :
Easy to maintain, wear-resistant
Description

E-YK Series vibrating screen is upgraded from traditional YK series,the obvious advantages are:

The thin oil ubrication efectively improves the lubrication state of the bearing,greaty reduces the working temperature of the bearing and greatly extends the service life of the bearing.It makes low faiure rate and maintenance-free,which plays a decisive role in the continuous and stable work of the vibrating screen.
UItra-high-strength steel plates for side frame improves the reliabiity of the vibration screen;high-strength torsion shear bolt connection for sieve box,no welding,high strength and long service life.
Higher capacity and lower power consumption compared with the traditional YK series vibration screen

Technical Data

Model

8ereen

Deck

Installation Slope(°)

Deck Size (m²)

Vibrating

Frequency (imin)

Double Amplitude (mm

Capacity

(th)

Molor Power

(kW)

Overall Dimensions

(L×W×H)(mm)
E-YK1235 1 15 4.2 970 6-8 20-180 5.5 3790×1847×1010
E-2YK1235 2 15 4.2 970 6-8 20-180 5.5 4299*1868×1290
E-3YK1235 3 15 4.2 970 6-8 20-180 7.5 4393×1868×1640
E-4YK1235 4 15 4.2 970 6-8 20-180 11 4500*1967×2040
E-YK1545 1 17.5 6.75 970 6-8 25-240 11 5030*2200×1278
E-2YK1545 2 17.5 6.75 970 6-8 25-240 15 5767*2270×1550
E-3YK1545 3 17.5 6.75 970 6-8 25-240 15 5874*2270×1885
E-4YK1545 4 17.5 6.75 970 6-8 25-240 18.5 5994*2270×2220
E-YK1548 1 17.5 7.2 970 6-8 28-270 11 5330*2228×1278
E-2YK1548 2 17.5 7.2 970 6-8 28-270 15 6067×2270×1557
E-3YK1548 3 17.5 7.2 970 6-8 28-270 15 5174*2270×1885
E-4YK1548 4 17.5 7.2 970 6-8 28-270 18.5 6294*2270×2220
E-YK1860 1 20 10.8 970 6-8 32-350 15 6536×2560×1478
E-2YK1860 2 20 10.8 970 6-8 32-350 18.5 6826*2570×1510
E-3YK1860 3 20 10.8 970 6-8 32-350 18.5 7145*2570×1910
E-4YK1860 4 20 10.8 970 6-8 32-350 22 7246*2660×2244
E-YK2160 1 20 12.6 970 6-8 40-720 18.5 6535*2860×1468
E-2YK2160 2 20 12.6 970 6-B 40-720 22 6700*2870×1560
E-3YK2160 3 20 12.6 970 6-8 40-720 30 7146×2960×1960
E-4YK2160 4 20 12.6 970 6-8 40-720 30 7254*2960×2205
E-YK2460 1 20 14.4 970 6-8 50-750 18.5 6535*3210×1468
E-2YK2460 2 20 144 970 6-8 50-750 30 7058*3310×1760
E-3YK2460 3 20 14.4 840 7-9 50-750 30 7223×3353×2220
E-4YK2460 4 20 14.4 840 6-8 50-750 30 7343×3893×2445
E-YK2475 1 20 18 970 6-8 60-850 22 7995*3300×1552
E-2YK2475 2 20 18 840 6-8 60-850 30 8863*3353×1804
E-3YK2475 3 20 18 840 6-8 60-850 37 8854×3353×2220
E-4YK2475 4 20 18 840 6-8 60-850 45 8878×3384×2520
E-2YK2775 2 20 20.25 970 6-8 80-860 37 8863*3653×1804
E-3YK2775 3 20 20.25 970 6-B 80-860 45 8854*3653×2220
E-4YK2775 4 20 20.25 970 6-8 80-860 55 8924x3544x2623
E-YK3060 1 20 18 840 6-8 70-900 30 6545*3949×1519
E-2YK3060 2 20 18 840 6-8 70-900 37 7282×3990×1919
E-3YK3060 3 20 18 840 6-8 70-900 45 7453*4024×2365
E-4YKD3060 4 20 18 840 6-8 70-900 2×30 7588*4127×2906
E-YK3075 1 20 22.5 840 6-8 84-1080 37 7945×3949×1519
E-2YK3075 2 20 22.5 840 6-8 84-1080 45 8884*4030×1938
E-2YKD3075 2 20 22.5 840 6-8 84-1080 2×30 8837×4133×1981
E-3YK3075 3 20 22.5 840 6-8 84-1080 55 9053*4030×2365
E-3YKD3075 3 20 22.5 840 6-8 84-1080 2×30 9006*4127×2406
E-4YKD3075 4 20 22.5 840 6-8 100-1080 2×30 9136x3862x2741
E-YKR3675 1 20 27 800 6-8 90-1100 45 7945*4354×1544
E-2YKD3675 2 20 27 800 7-9 149-1620 2x37 8917×4847×1971
E-3YKD3675 3 20 27 800 7-9 149-1620 2×45 9146×4847*2611
E-2YKD3690 2 20 32.4 800 7-9 160-1800 2x37 9312×5691×5366
E-3YKD3690 3 20 32.4 800 7-9 160-1800 2x45 9312×5691×6111
E-2YKD40100 2 20 40 800 7-9 200-2000 2x55 10252*6091×5366
E-3YKD40100 3 20 40 800 6-8 200-2000 2x75 10252×6091×6111

The equpment capacity listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,pease contact our engineers for equipment selection for spocific projects.
