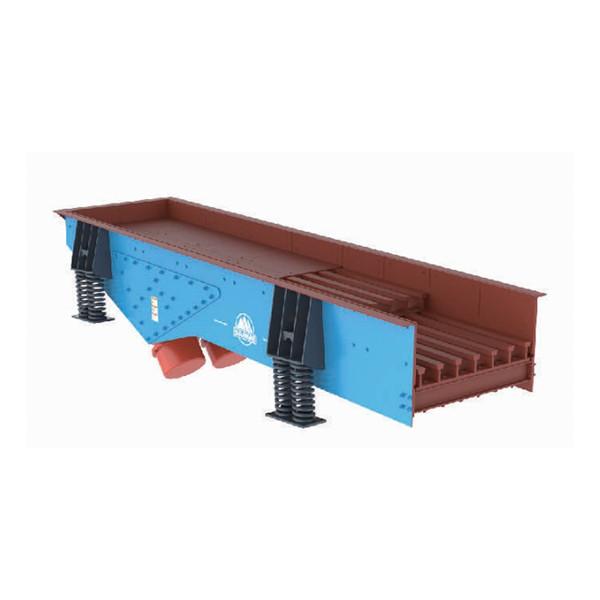

GZT Series Vibrating Feeder Machine For Feeding Material Into The Primary Crusher
GZT Series Vibrating Feeder Machine For Feeding Material Into The Primary Crusher
Specifications
Brand Name :
HAOFENG
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5-30 work days
Packaging Details :
upon request
advantage :
Economical and durable
model :
multiple models are available
feature :
low noise,energy-saving,compact
Description

GZT Series Vibrating Feeder adopts the vibrating motor to produce vibration force.It is used to feed material into the primary crusher,meanwhile because of the bar-shaped screen,it can screen away soil contained in the raw material,increase the capacity of the primary crushing.It is suitable for feeding material into the primary crusher in hydropower field,building material and mining.

Technical Data

Model

Max Feeding Size

(mm)

Capacity

(t/h)

Motor Power

(kW)

BarIncination Angle

(*)

Double Amplitude

(mm)

Feed Trough (LxW)

(mm)
GZT-0724 450 30-80 2x1.5 5 4-6 700x2400
GZT-0932 560 80-150 2x2.2 5 4-8 900x3200
GZT-1148 600 150-300 2x7.5 5 4-8 1100x4800
GZT-1256 800 300-500 2x12 5 4-8 1200x5600
400-600 2x12 10
GZT-1560 900 400-600 2x13 5 4-8 1500x6000
600-800 2x13 10
GZT-1860 1000 500-800 2x14 5 4-8 1800x6000
1000-1200 2x14 10
GZT-2060 1200 900-1200 2x16 5 4-8 2000x6000
1200-1500 2x16 10
GZT-2460 1400 1200-1500 2x18 5 4-8 2400x6000
1500-2500 2x18 15
GZT-3060 1600 1500-2000 2x20 5 4-8 3000x6000
2500-3500 2x20 15

The equipment capacities listed are based on instantaneous sampling of medlum hardnes rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projocts.
