Easy To Maintain Vibrating Screen And Feeder ZSW Series Smooth Vibrating Grizzly Feeder
Easy To Maintain Vibrating Screen And Feeder ZSW Series Smooth Vibrating Grizzly Feeder
Specifications
Brand Name :
HAOFENG
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5-30 work days
Packaging Details :
upon request
advantage :
Economical and durable
model :
multiple models are available
feature :
Easy to maintain, wear-resistant
Description

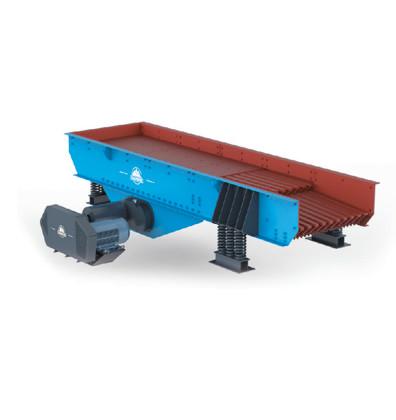

ZSW Series Vibrating Grizzly Feeder is mainly used to feed material into the primary crusher continuously.Meanwhile,it can screen the fine material and make the crusher more powerful.

Features and Benefits
Smooth vibrating.
The special fence can prevent the block of raw material.

The distance between fences is adjustable.
Frequency conversion motor can be equipped to facilitate feeding control,and frequent startup of motor is avoided.

Technical Data

Model

Max Feeding Size

(mm)

Capacity (t/h)

Motor Power(kW)

Installation Angle(°)

Overall Dimensions

(L×W×H)(mm)

Size of Funnel (mm)
ZSW-280×85 450 100-160 7.5 3-5 2880×2050×2150 2800×850
ZSW-380×95 500 160-230 11 3-5 3880×2175×1957 3800×950
ZSW-490×110 580 200-300 15 3-5 4957×2371×2125 4900×1100
ZSW-590×110 600 200-300 22 3-5 5957×2467×2151 5900×1100
ZSW-490×130 750 400-560 22 3-5 4980×3277×1525 4900×1300
ZSW-600×130 750 400-560 22 3-5 6080×3277×1525 6000×1300
ZSW-600×150 1000 500-900 30 3-5 6080×3541×1545 6000×1500
ZSW-600×180 1200 700-1200 37 3-5 6080×3852×1770 6000×1800
ZSW-600×200 1400 900-1800 45 3-5 6080×4094×1810 6000×2000
ZSW-600×240 1400 1500-2000 75 3-5 6078×4511×2289 6000×2400

The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reterence only,please contact our engineers for equipment selection for specific projects.
