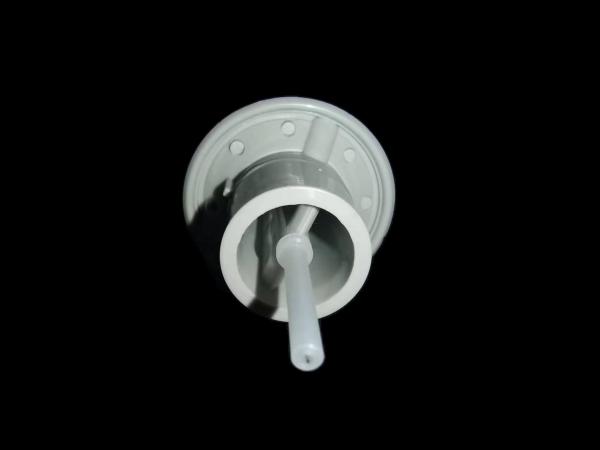

1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
1081658 4mm Flat Spray Nozzle Assembly For Encore Manual Automatic Gun
Specifications
Brand Name :
Nordson
Model Number :
Encore
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5 - 8 work days
Packaging Details :
Carton
Code 1 :
1081658 Flat Spray Nozzle
Code 2 :
1605847 Flat Spray Nozzle
Code 3 :
1604824 Electrode Assembly
Code 4 :
1613834 Electrode Support Assy, Flat Spray
Size of nozzle :
4mm
Material :
A Class PTFE
Shape :
Flat
Application :
Encore manual and automatic spray gun
Color :
White and Grey
Feather :
Flat spray nozzle assembly
Description

4mm Flat Spray Nozzle Assembly For Encore Manual And Automatic Gun

Introduction

It is made in A class PTFE material which is durable and antistatic. The products can be well used to encore manual spray gun and encore automatic powder spray guns.

The optional spray nozzles are as following:

Code Flat spray nozzle
1081656 2.5mm flat spray nozzle
1081657 3mm flat spray nozzle
1081658 4mm flat spray nozzle
1081659 6mm flat spray nozzle

Code Cross spray nozzle
1082184 60 Degree Corss - cut nozzle
1082185 90 Degree Corss - cut nozzle
1082186 2.5mm Castle nozzle

Code Conor spray nozzle
1102872 45 Degree conor spray nozzle

Code In Line flat spray nozzle
1102872 45 Degree flat spray nozzle

Other related spare parts you may interested:

1106893 HANDGUN assembly, Encore LT
1081638 NUT, nozzle, handgun
1081658 NOZZLE, flat spray, 4 mm
1604824 ELECTRODE ASSEMBLY, Encore, flat spray
1106078 ELECTRODE, spring contact
1605863 HOLDER, electrode, M3, flat spray, Encore
1085024 KIT, powder outlet tube, Encore
941113 O-RING, silicone, 0.438 x 0.625 x 0.094 in.
1081785 O-RING, silicone, 0.468 x 0.568 x 0.05 in.
1088502 GASKET, multiplier cover, handgun
1106872 BULKHEAD, multiplier, handgun, Encore LT/XT
1087559 COVER, housing, Encore
1087558 HOUSING, gun, Encore
1087760 HOOK, handgun
1078075 SCREW, pan head, recessed, M3 x 30, zinc
760580 SCREW, head, M3 x 20, zinc
1608280 KIT, negative power supply/manual body, Encore
1088558 FILTER ASSEMBLY, handgun
1106871 HANDLE, ground pad, handgun, Encore LT/XT
983520 WASHER, lock, internal, M3, zinc
982427 MACHINE SCREW, pan head, recessed, M3 x 6, zinc
1096695 ELBOW, powder tube, handgun
1081540 TRIGGER, purge, setting, handgun
1606999 KIT, trigger w axle, Encore
− − − − − AXLE, trigger, solid, spray gun, Encore
1106892 ACTUATOR, switch, trigger, Encore LT/XT
1088601 SCREW, flat head, recess, M5x 10, nylon
1108095 KIT, trigger switch, Encore LT
1106870 HANDLE, handgun, Encore LT/XT
1085026 KIT, powder inlet tube, Encore
1084773 O-RING, silicone, 18 mm ID x 2 mm wide
1081785 O-RING, silicone, 0.468 x 0.568 x 0.05 in.
1106756 CABLE ASSEMBLY, spray gun, manual, Encore LT, 6 meter
940129 O-RING, silicone, conductive, 0.375 x 0.50in.
1604500 CLAMP, cable, 0.25 ID x 0.05 thick, white
1087762 BASE, handle, handgun
1081617 CHECK VALVE, male, M5 x 6 mm
1081616 FITTING, bulkhead, barb, dual, 10−32 x 4 mm
1081777 RETAINING RING, external, 10 mm
1604828 KIT, conical nozzle, Encore
1083206 DEFLECTOR ASSEMBLY, conical, 26 mm

Application

Nordson encore powder spray gun

Advantages and selling points


1. Original size and material
2. Suitable for large size powder coating
3. Wear resistance and long working life

4. A class material

Package

Paper box package

Company introduction

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
