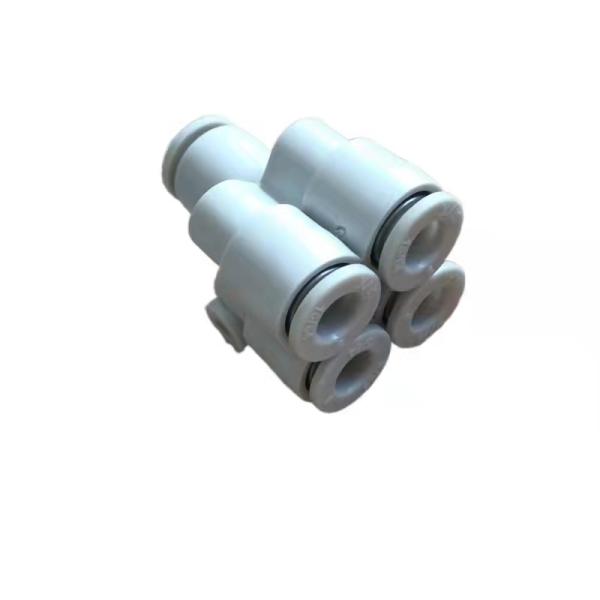

KQ2UD04-06 Four-head trachea joint trachea five-way Y-type trachea Tracheal diameter change

Introduction

Product color 2 connector body: White release sleeve: grey.
Variety UD four-pipe Y-shaped joint reducing four-pipe Y-shaped pipe.
Suitable for pipe outer diameter 04 Φ 4.
Nozzle diameter 06 Φ 6.
Sealant Nil no sealant.
Customized specification Nil standard
Use fluids: air, water.
Operating pressure range:-100KPA to 1MPA.
Withstand voltage: 3MPa.
Ambient and fluid temperature:-5 to 60 degrees; water 0 to 40 degrees.
Thread material: brass
Thread material / surface treatment (with or without): 2 kinds.
Optional surface treatment: brass (no gold plating), brass + non-electrolytic nickel plating.
Suitable for outer diameter of pipe.
Circular type.
Metric: Φ 2, Φ 3.2, Φ 4, Φ 6, Φ 8, Φ 10, Φ 12, Φ 16.
Imperial system: Φ 1max 8 ", Φ 5max 32", Φ 3max 16 ", Φ 1max 4", Φ 5max 16 ", Φ 3max 8", Φ 1max 2 "
Elliptic type.
Metric: Φ 3.2, Φ 4, Φ 6.
Imperial system: Φ 1ax 8 ", Φ 5max 32", Φ 3ax 16 "
Connecting thread.
Metric: M3, M5, M6.
R,Rc:1/8,1/4,3/8,1/2.
G:1/8,1/4,3/8,1/2.
NPT:10-32UNFjue 1pm 16pm 8pm 1pm 4pm 3pm 8pm 1max 2.
Uni:1/8,1/4,3/8,1/2.
Sealing mode.
Sealant / gasket seal.
Sealing ring seal.
Gasket seal (Uni thread)

Tracheal diameter change.

Quick Details

Advantages and selling points

1. Long service life.
2. Size standard, original replacement.
3. Good quality and good price.
4. Withstand pressure and do not leak.
5. Real material, high strength shell.

Package

Paper box package
