Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
Specifications
Brand Name :
HM
Place of Origin :
CHINA
MOQ :
one set
Price :
USD 800-1200
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets one year
Delivery Time :
7days
Packaging Details :
Wooden box or carton packaging+Air cushion film
Type :
Coating Spray Gun
Condition :
New
Video outgoing-inspection: :
Provided
Voltage :
customized
Application :
Powder Decorative Coating
Spraying Guns :
Electrostatic Paint Spraying Gun
Substrate :
Steel
Machine Type :
Powder Coating gun
Warranty :
one year
Weight :
40kg
Description

1. Product Application

Our powder coating gun machine deliver superior coating coverage and efficiency across all type of applications. The powder gun incorporates an air purge cleanable design for fast and easy cleaning both inside and outside. These guns are made by specially engineered material that minimizes wear and impact fusion. These guns are ideal for quick and color changed powder applications. 100 kV Electrostatic Powder Coating Machine combine production - proven powder spray, gun and control technology and performance suitable for all type of jobs with lo w and mass volume in any Batch & Conveyorised system.

Specifications of Electrostatic Powder Coating Gun Machine

No.

Item

Specification

1

Power supply

AC90-260V, 50-60Hz

2

Total power

40w

3

Output voltage

DC24v, 0~100kv adjustable

4

Output current

≤150µA

5

Polarity

Negative

6

High-voltage module

Inside

7

Powder output volume

50~600g/min, adjustable

8

Compressed air

0.4-0.8MPa

9

Compressed air consumption

Max. 25NM3/min

10

Weight of spray gun

500g

11

Protection level

IP54

2.Main Features

※sturdy, modular construction for easy maintenance.
※complete flexibilities and minimum breakdown possibilities.
※minimum "faraday cage effect" and "back ionization".
※highest transfer efficiency with finger touch trigger.
※highest "wrap around" effect with even thickness.
※quick clean "stainless steel hopper"
※easy to operate user friendly controls.
※requires minimum training to operate

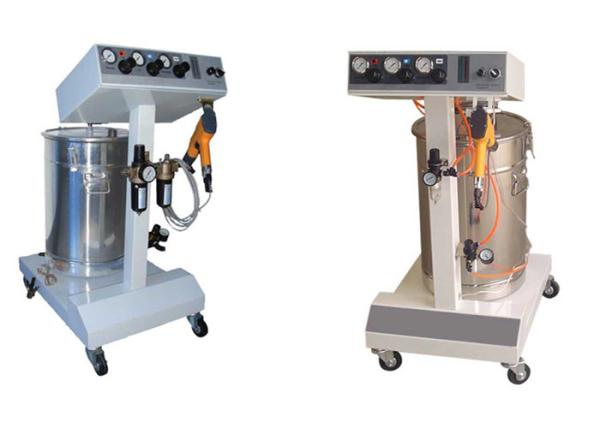

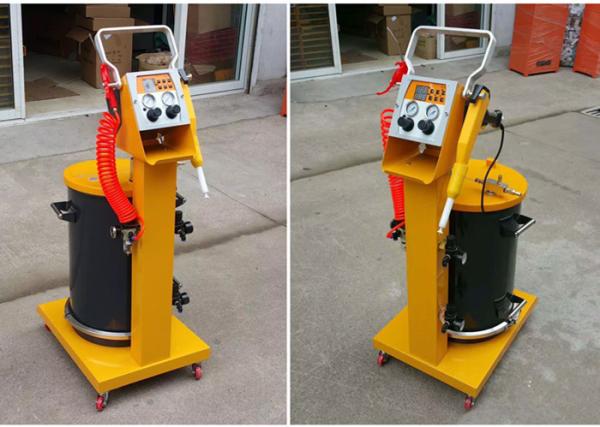

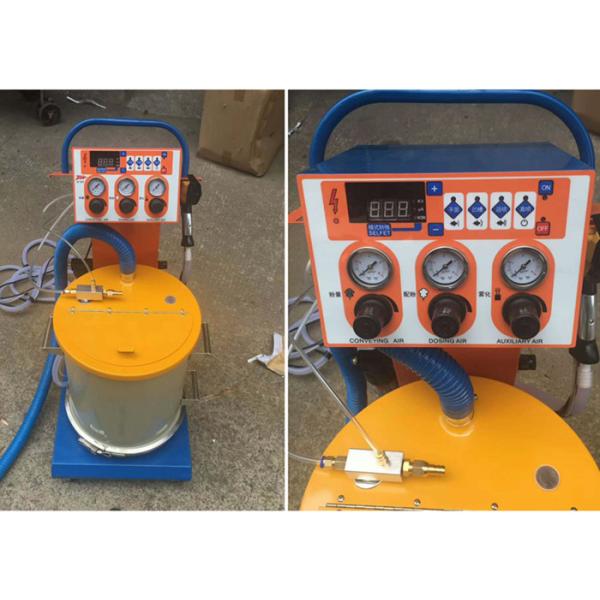

3.Product Pictures

Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min

4.Our Service

The guarantee period of machinery is 12 months after shipping. The buyer should follow the operation instruction and maintenance instruction provided by the seller. Within the guarantee time, the buyer should be responsible for quality problem of the equipment except for man-made damage or problem caused by wrong operation. After guarantee period, the seller will provide necessary support on the customer’s demand and charge reasonablely based on material cost.

5.Packing & Delivery

Steel Substrate Spraying Gun Paint Powder Coating Spray Machine 50~600g/min
